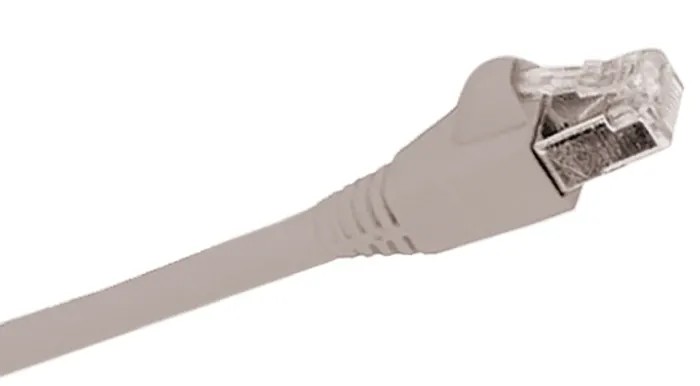

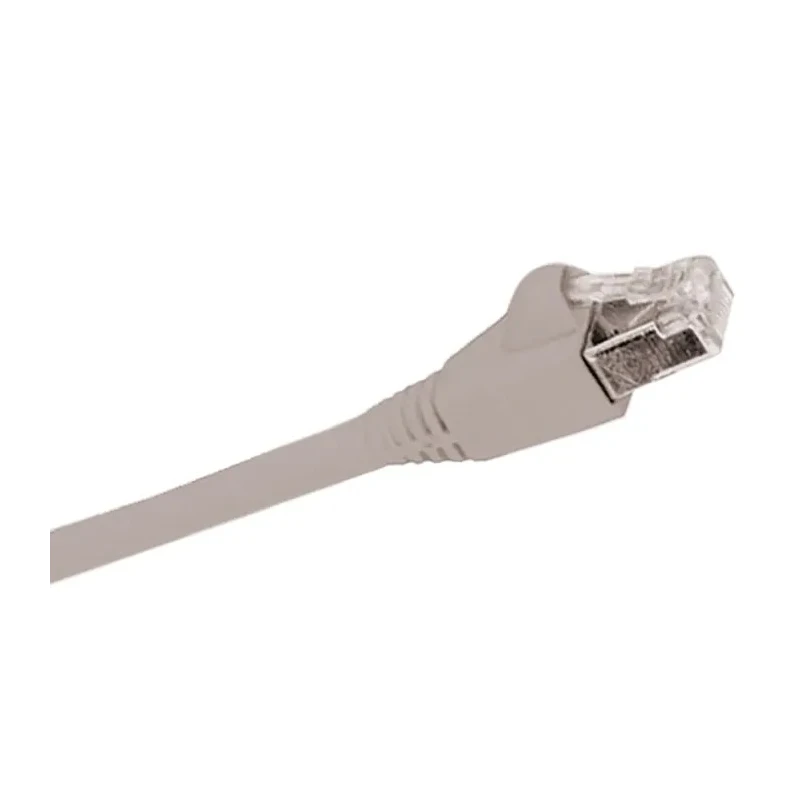

Molex CES Cat6 Shielded Ethernet Cable, Low Smoke Zero Halogen Jacket, 1 m Grey

Molex CES PCD-04001-0E Cat6 Ethernet Cable is a shielded patch cord designed for high-performance networking applications in industrial, commercial, and laboratory environments. The cable features a 1 meter length with a durable grey Low Smoke Zero Halogen jacket that provides both fire resistance and minimal toxic smoke emissions, making it suitable for data centers, offices, and other critical installations.

The conductor is comprised of four pairs of 26 AWG stranded copper wire shielded by an aluminium/polyester combined shield to reduce electromagnetic interference, improving transmission quality over longer distances. The cable is terminated with pre-crimped RJ45 plugs that support standard wiring schemes such as EIA 568A and 568B, facilitating seamless installation in networking hardware.

This product conforms to rigorous fire behaviour standards including IEC 60332-1 and IEC 60754-1, and meets multiple certification requirements such as UL-1863, RoHS compliance, and ISO/IEC 11801:2002/Amd 2:2010 Cat 6, ensuring both safety and performance. Its rated operating temperature range from -20°C to 60°C and voltage rating of 150 V make it versatile across a variety of network infrastructures.

The nominal outside diameter of 6.3 mm provides a slim profile for efficient cable management. This LS0H cable is ideal for use in environmentally sensitive areas where low smoke emissions are critical. The 4-core design supports reliable data transmission for Ethernet networks up to Cat6 specification.

Manufactured in India under the Molex CES PCD series, the PCD-04001-0E model offers a robust and compliant solution for network cabling requirements, especially in environments demanding safety, performance, and durability.

The cable is shielded to minimize electromagnetic interference for improved signal integrity. Constructed with 26 AWG stranded copper conductors to ensure flexibility and durability. Features a Low Smoke Zero Halogen (LS0H) jacket for fire safety and reduced toxic emissions.

Comes terminated with RJ45 connectors suitable for EIA 568A or 568B wiring standards. Designed to operate within a temperature range of -20°C to 60°C for stable performance. Supports a voltage rating of 150 V for safe electrical use.

Complies with multiple industry standards including ISO/IEC 11801, TIA-568-C.2 Cat 6, UL-1863, ETL, and RoHS. The cable diameter is 6.3 mm maximum, allowing easy routing and installation. Manufactured in India with a 4-core stranded conductor design for optimal networking.
