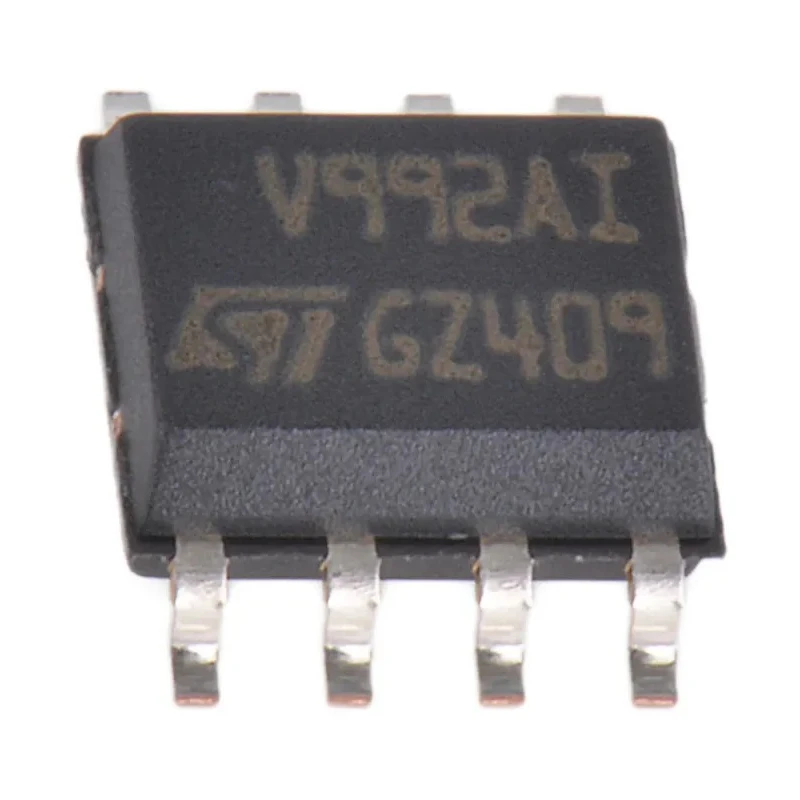

STMicroelectronics Operational Amplifier Dual Channel 20 MHz 8-Pin SOIC 5.5V TSV992AIDT

STMicroelectronics TSV992AIDT is a high-performance dual operational amplifier designed for various industrial and automotive electronics applications requiring precise signal amplification. Featuring a wide bandwidth of 20 MHz and a high slew rate of 10 V/μs, this device provides rapid and accurate signal response in complex analog circuits.

Powered by a supply voltage range between 2.5 V and 5.5 V, it supports low voltage applications while maintaining low power consumption typically at 820 μA. The TSV992AIDT features a low input offset voltage of 1.5 mV max (A grade), and an input bias current of 100 pA, ensuring minimal signal distortion and high accuracy.

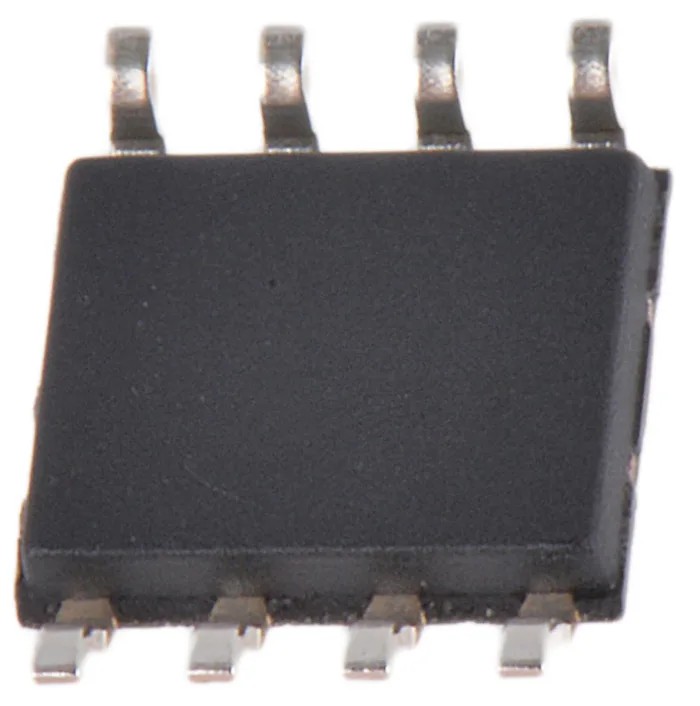

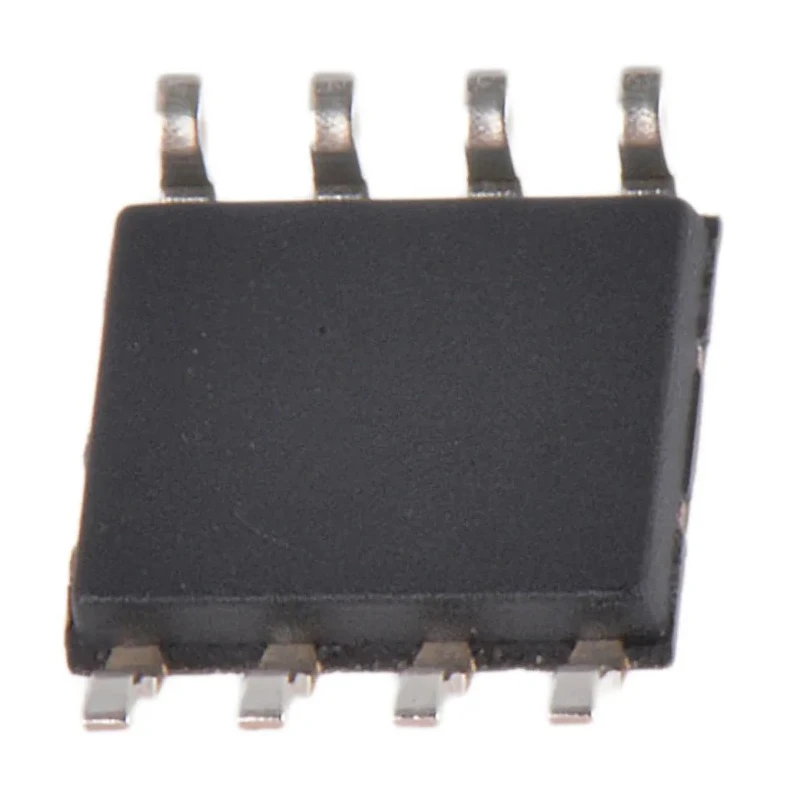

The operational amplifier comes in an 8-pin SOIC surface mount package with compact dimensions (5 mm length by 4 mm width by 1.25 mm height), suitable for space-constrained PCB layouts. It supports dual channels with an output current of 16 mA per channel and can deliver high output current up to 35 mA, which allows driving moderately loaded circuits.

Robust design considerations include a wide operating temperature range from -40°C to 125°C, making it ideal for harsh environments in automotive or industrial applications. The TSV992AIDT complies with automotive standard AEC-Q100 and RoHS environmental compliance, ensuring reliability and eco-friendly manufacturing.

Additional protection includes an electrostatic discharge (ESD) tolerance of 5 kV, reducing susceptibility to damage from electrical surges during handling or operation. Wide operating voltage between 2.5V and 5.5V suitable for modern electronics.

Dual-channel operation optimized for compact circuit designs. High bandwidth and slew rate for fast and accurate signal processing. Low offset and bias currents for precision amplification. Surface mount SOIC package designed for space-saving PCB layouts.

Extensive temperature tolerance enabling use in automotive and industrial sectors. Compliant with RoHS and automotive standards for safety and environmental compliance. ESD protection up to 5 kV for enhanced durability.

This Operational Amplifier is commonly used in industrial control systems, automotive electronics, instrumentation amplifiers, and general analog signal conditioning in high-reliability environments. The product is well suited for precision electronics manufacturing requiring high accuracy and robust performance.
