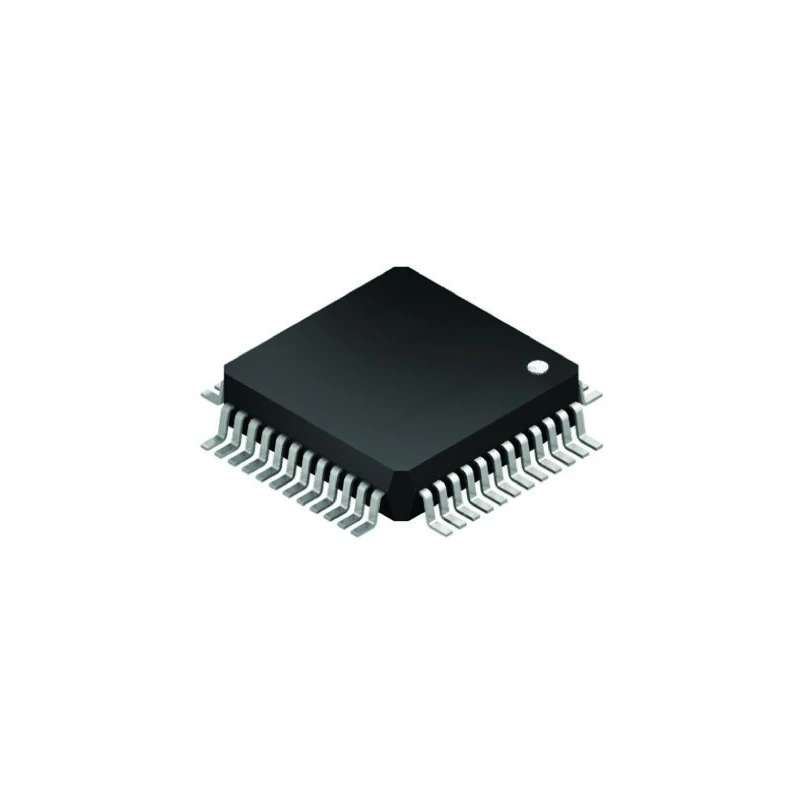

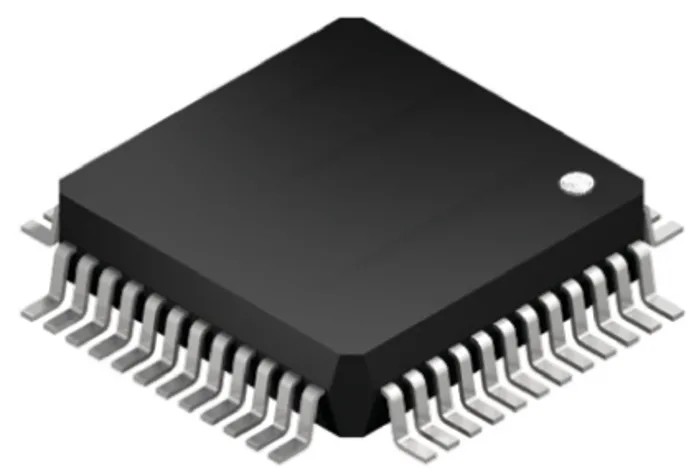

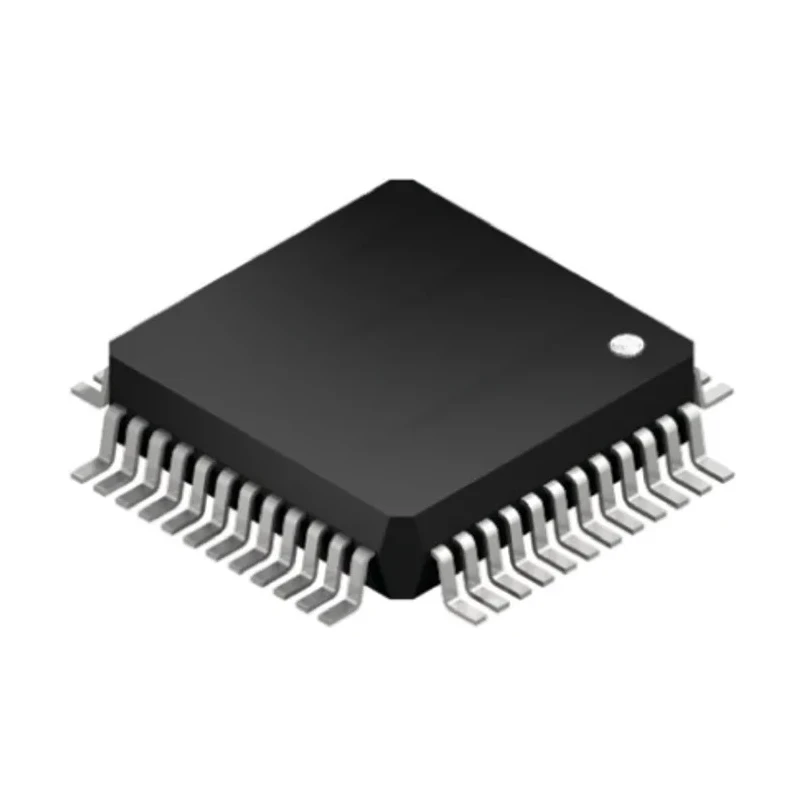

STMicroelectronics STM8S005C6T6 8-Bit STM8S Microcontroller 16 MHz 32kB FLASH 48-Pin LQFP STM8

STMicroelectronics STM8S005C6T6 is an 8-bit STM8S microcontroller engineered for versatile applications in embedded systems, offering a balance of performance and compact design. It features a 48-pin LQFP surface mount package with compact dimensions of 7.2 mm by 7.2 mm by 1.45 mm height, making it suitable for space-constrained PCB layouts.

This microcontroller operates at a maximum clock frequency of 16 MHz, delivering efficient processing power via its STM8 core. It integrates 32kB of Flash memory for program code storage and 2kB RAM to handle data operations effectively. The device supports 38 programmable I/O pins, enabling rich interface options for various peripherals and sensors.

Equipped with 5 timers and 10 channels of 10-bit analog-to-digital converters, this MCU supports precise timing, control, and measurement functions. It operates reliably across a wide temperature range from -40°C up to 85°C, making it suitable for industrial and automotive embedded applications. The maximum power dissipation is rated at 443 mW, ensuring stable performance even under demanding conditions.

The STM8S005C6T6 is compliant with RoHS environmental standards, reflecting STMicroelectronics' commitment to eco-friendly design. Operating voltage ranges from a minimum of 2.95 V to a maximum of 5.5 V, suitable for a broad variety of power supply options.

Ideal for industrial control, automotive systems, consumer electronics, and HVAC systems, this microcontroller offers robust performance with low power consumption. Its integrated features allow for versatile designs in manufacturing and development projects.

Features a high-performance 8-bit STM8 core suitable for embedded applications. Operates at a maximum clock frequency of 16 MHz for efficient processing. Includes 32kB flash memory for program storage and 2kB RAM for data handling.

Equipped with 38 programmable input/output pins for flexible interfacing. Supports 5 timers and 10 10-bit ADC channels for precise control. Designed for surface mount with a compact 48-pin LQFP package of 7.2 mm width and length.

Wide temperature operating range from -40°C to 85°C suitable for industrial environments. Complies with RoHS standards ensuring environmental safety. Maximum supply voltage rated at 5.5 V with minimum operational voltage of 2.95 V.

Maximum power dissipation of 443 mW ensuring reliable performance under load. Explore the full range of STM8S series 8-bit Microcontrollers on EnvMart for integrated industrial, laboratory, and development applications.
