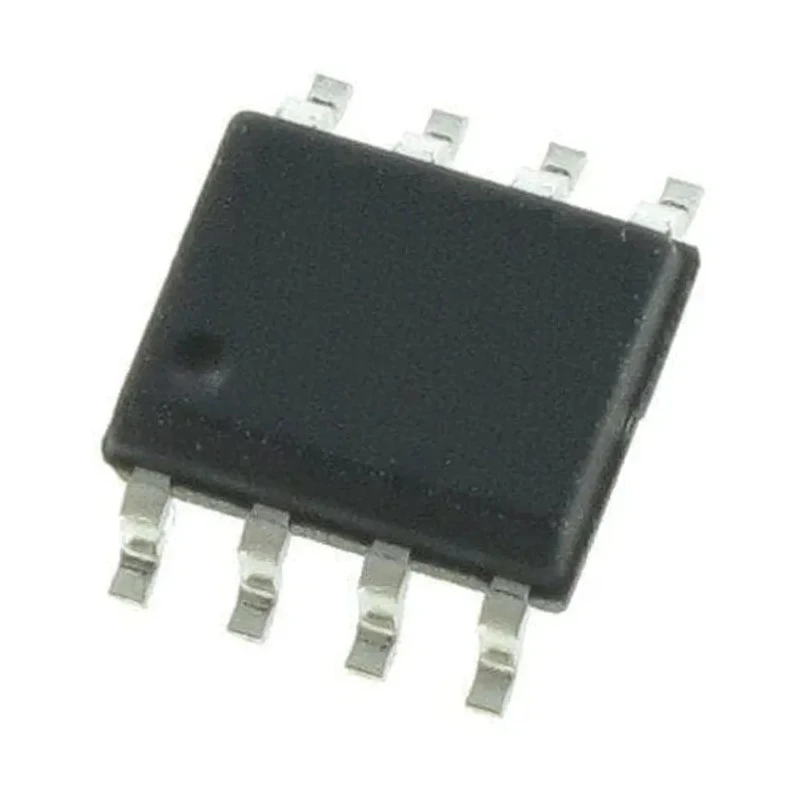

onsemi Operational Amplifier, 3 MHz Gain Bandwidth, 2 Channels, 8-Pin 36V SOIC NCV272DR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.75mm |
| Length | 5mm |
| Model | NCV272DR2G |
| Width | 4mm |
| Mount Type | Surface |
| Series | NCV272 |
| Output Current | 100mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 150 pA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 2.6V/μs |
Key Features
- Rail-to-rail output operation for optimal voltage utilization.
- Wide temperature range from -40°C to +125°C for automotive and industrial use.
- Low input bias current of 150 pA ensuring high input impedance.
- Maximum supply voltage of 36V suitable for diverse applications.
- Compact 8-pin SOIC surface-mount package with 1.75mm height and 5mm length.
- High slew rate of 2.6 V/μs enabling fast signal response.
- Compliant with RoHS standards ensuring environmental safety.
- Automotive standard AEC-Q100 qualified for reliability.
Product Description
onsemi NCV272DR2G is a high-performance operational amplifier designed for applications requiring rail-to-rail output and a gain bandwidth product of 3 MHz. Encapsulated in an 8-pin SOIC package, this device supports dual channels, making it suitable for signal conditioning, sensor interfacing, and control systems in industrial, automotive, and consumer electronics domains.
The amplifier operates over a wide supply voltage range from 2.7V up to 36V, allowing versatile integration into low and high voltage designs. It maintains robust performance across temperatures ranging from -40°C to +125°C, confirming its compliance with automotive-grade requirements (AEC-Q100).
Featuring low input bias and offset currents as well as a fast slew rate of 2.6 V/μs, NCV272DR2G ensures accurate and rapid signal amplification. Its compact physical dimensions (1.75mm height, 5mm length, and 4mm width) enable easy PCB mounting while conserving space.
This product meets RoHS standards, supporting environmentally friendly manufacturing practices. The output current capability of 100mA permits direct driving of loads without external buffering, enhancing design simplicity.
The device is ideally suited for industrial instrumentation, automotive electronics, test and measurement equipment, HVAC control systems, and communications devices. Rail-to-rail output operation for optimal voltage utilization.
Wide temperature range from -40°C to +125°C for automotive and industrial use. Low input bias current of 150 pA ensuring high input impedance. Maximum supply voltage of 36V suitable for diverse applications. Compact 8-pin SOIC surface-mount package with 1.75mm height and 5mm length.
High slew rate of 2.6 V/μs enabling fast signal response. Compliant with RoHS standards ensuring environmental safety. Automotive standard AEC-Q100 qualified for reliability. Output current up to 100mA suitable for driving loads directly.
Explore more Operational Amplifiers and semiconductor components in the Electronics & Electricals category at EnvMart for your industrial and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NCV272DR2G has a gain bandwidth product of 3 MHz, making it suitable for a variety of signal amplification applications.
This operational amplifier can operate with a maximum supply voltage of 36V, allowing it to be integrated into both low and high voltage designs.
It operates over a wide temperature range from -40°C to +125°C, making it suitable for automotive and industrial applications.
The NCV272DR2G features dual channels, allowing for versatile applications in signal conditioning and sensor interfacing.
It can deliver an output current of up to 100mA, enabling direct driving of loads without the need for external buffering.
The input bias current is specified at 150 pA, ensuring high input impedance and minimal loading on the signal source.
This model has a compact size with a height of 1.75mm, length of 5mm, and width of 4mm, facilitating easy PCB mounting.
The NCV272DR2G has a slew rate of 2.6 V/μs, which allows for rapid signal response in various applications.
Yes, it is compliant with RoHS standards, ensuring that it meets environmental safety requirements.
This unit features a surface mount design, specifically in an 8-pin SOIC package, which is suitable for space-constrained applications.
It is qualified under the automotive standard AEC-Q100, ensuring its reliability for automotive applications.
The NCV272DR2G is suitable for applications such as industrial instrumentation, automotive electronics, and test and measurement equipment.
