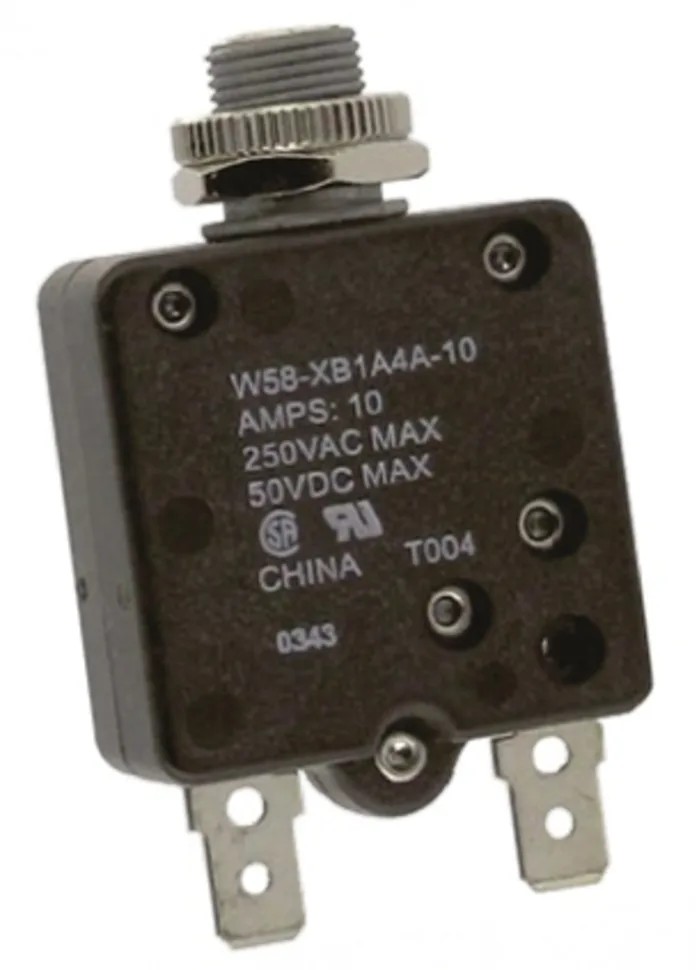

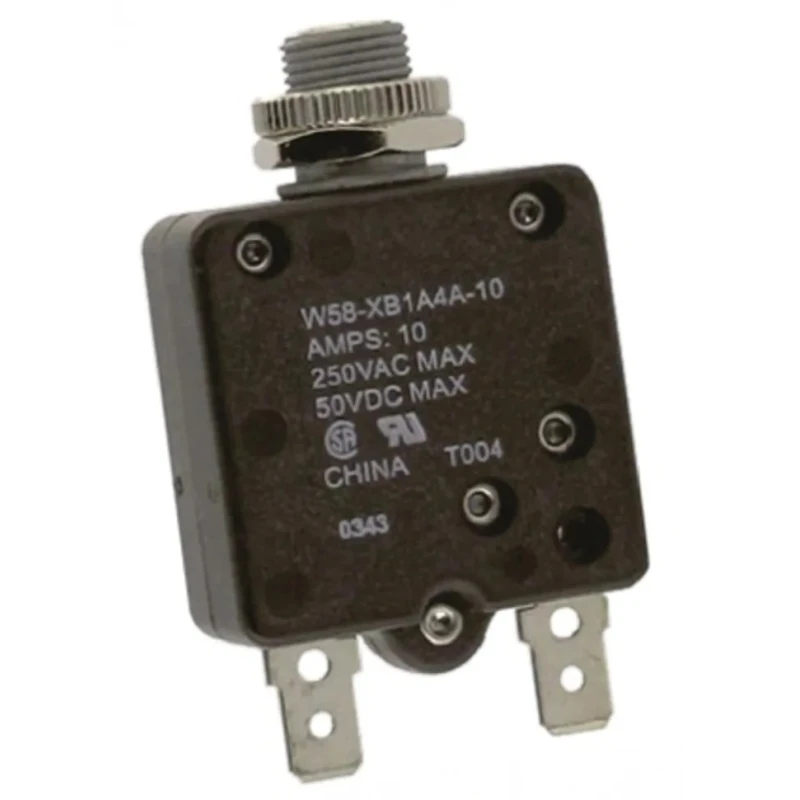

TE Connectivity Thermal Circuit Breaker 10A Current Rating 1-Pole, Direct Mount, Toggle Switch Reset W58-XB1A4A-10
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | W58-XB1A4A-10 |
| Width | 16.76mm |
| Mount Type | Direct |
| Current Rating | 10A |
| Series | W58 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | Must trip at 145% at 25°C, Trips between 101%-145% of rated load |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 18.8 mm |
| Break Time | Medium |
Key Features
- Equipped with a thermal tripping mechanism for reliable circuit protection.
- Toggle switch reset actuator provides easy manual reset capabilities.
- Designed to trip at 145% of rated load at 25°C, ensuring protection from overloads.
- Rated for 250V AC and 50V DC voltage applications.
- Breaking capacity of 1000A suitable for medium break time requirements.
- Compact width of 16.76 mm with an 18.8 mm mount hole size for easy panel installation.
- Screw terminal type assures secure electrical connections.
- Complies with RoHS and CE standards for environmental and safety compliance.
Product Description
The TE Connectivity W58-XB1A4A-10 thermal circuit breaker is a precision engineered electrical protection device designed for safe and reliable interruption of current flow during overload conditions. With a 10A current rating and a single pole configuration, this breaker is suited for a variety of industrial and electrical automation applications requiring direct mount installation.
Featuring a thermal tripping mechanism, the breaker trips between 101% and 145% of rated load, tripping at 145% at 25°C to protect circuits effectively from overload damage. The toggle switch reset actuator enables convenient manual resetting after a trip event.
This model is rated for 250V AC and 50V DC voltage systems with a breaking capacity of 1000A, making it suitable for medium break time interruption tasks in control panels and electrical distribution systems.
The circuit breaker has a compact width of 16.76 mm and requires an 18.8 mm mount hole size for installation. It uses secure screw terminals for reliable electrical connection ensuring installation integrity.
Compliant with RoHS and CE standards, this Thermal Circuit Breaker meets strict environmental and safety regulations for industrial and commercial electrical systems.
Typical applications include use in industrial machinery, electrical automation equipment, HVAC panels, and manufacturing control systems where dependable circuit overload protection is critical.
Equipped with a thermal tripping mechanism for reliable circuit protection. Toggle switch reset actuator provides easy manual reset capabilities. Designed to trip at 145% of rated load at 25°C, ensuring protection from overloads.
Rated for 250V AC and 50V DC voltage applications. Breaking capacity of 1000A suitable for medium break time requirements. Compact width of 16.76 mm with an 18.8 mm mount hole size for easy panel installation. Screw terminal type assures secure electrical connections.
Complies with RoHS and CE standards for environmental and safety compliance. Ideal for industrial and electrical automation systems requiring thermal circuit protection. Discover more specialized circuit protection devices and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 10A.
It is rated for 250V AC and 50V DC voltage applications.
The breaking capacity of this model is 1000A, suitable for medium break time requirements.
It features a toggle switch reset actuator for manual resetting after a trip event.
The width of this unit is 16.76 mm, and it requires an 18.8 mm mount hole size for installation.
The breaker uses a thermal tripping mechanism, designed to trip at 145% of the rated load at 25°C and between 101% and 145% under other conditions.
It uses screw terminals, ensuring secure electrical connections during installation.
Yes, it complies with RoHS and CE standards for environmental and safety compliance.
The country of origin for this thermal circuit breaker is India.
It is suitable for various applications including industrial machinery, electrical automation equipment, and HVAC panels.
This model belongs to the W58 series of thermal circuit breakers.
This thermal circuit breaker is a 1-pole configuration.
