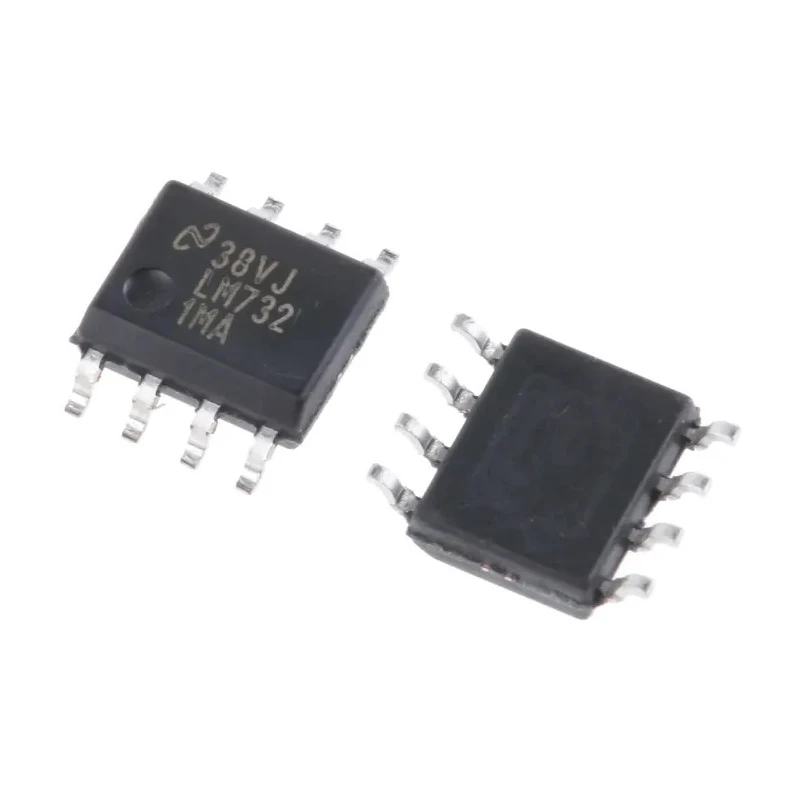

Texas Instruments Operational Amplifier 20 MHz, Surface Mount SOIC 8-Pin 32V LM7321MA/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | LM7321MA/NOPB |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | LM7321 |
| Output Current | 20mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 32V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 20MHz |
| Input Bias Current | 1.5 μA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 18V/μs |
| Input Offset Current | 300 nA |
Key Features
- The device supports a maximum supply voltage of 32 volts and minimum supply voltage of 2.5 volts.
- It features a single channel with an 8-pin surface mount SOIC package.
- Input offset voltage is rated at 6 millivolts and slew rate is 18 volts per microsecond.
- With an output current of 20 mA, it is suitable for driving low impedance and complex loads.
- Operating temperature range spans from -40°C to 125°C, making it robust for demanding environments.
- Input bias current is 1.5 microamperes, with an offset current of 300 nanoamperes.
- Physical dimensions are compact with a length of 4.9 mm, width of 3.9 mm, and height of 1.45 mm.
- The amplifier complies with automotive standard AEC-Q100, ensuring automotive grade reliability.
Product Description
Texas Instruments LM7321MA/NOPB is a high voltage, high current operational amplifier with a 20 MHz gain bandwidth product designed for demanding industrial and automotive applications. It is housed in a compact 8-pin SOIC surface mount package suitable for streamlined PCB layouts.
This amplifier supports a maximum supply voltage of 32V and can operate reliably down to 2.5V, covering a broad supply range. The maximum operating temperature of 125°C allows usage in harsh environments, including automotive and industrial conditions.
The device features a low input offset voltage of 6 mV and a fast slew rate of 18 V/μs, enabling precise and rapid signal amplification. With a 20 mA output current capacity, it can drive low impedance and difficult loads, such as power transistors and MOSFETs.
Its input bias current of 1.5 µA and input offset current of 300 nA contribute to its accuracy and stability in analog signal processing applications. Physical dimensions are optimized for surface mounting with a length of 4.9 mm, width of 3.9 mm, and height of 1.45 mm, facilitating compact circuit designs.
High voltage and high current operational amplifier for industrial and automotive use. Broad voltage operating range from 2.5V to 32V. Fast slew rate ensures high-speed signal processing. Conforms to automotive standard AEC-Q100.
Compact SOIC 8-pin package for efficient PCB space utilization.
This amplifier is ideal for applications such as motor speed controllers, bridge amplifiers, servo amplifier circuits, and power supply regulation. It is widely used in manufacturing, industrial control systems, automotive electronics, and instrumentation.
Explore more electronic components and semiconductors in the Operational Amplifier category at EnvMart for comprehensive circuit design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 20 MHz.
This model supports a maximum supply voltage of 32 volts.
The operating temperature range spans from -40°C to 125°C, making it suitable for harsh environments.
It has an output current capacity of 20 mA, allowing it to drive low impedance and complex loads.
The amplifier has a length of 4.9 mm, a width of 3.9 mm, and a height of 1.45 mm.
The input offset voltage is rated at 6 millivolts.
It is housed in a compact 8-pin SOIC surface mount package.
The slew rate is 18 volts per microsecond.
Yes, it complies with the automotive standard AEC-Q100, ensuring automotive grade reliability.
The input bias current is 1.5 microamperes.
It is suitable for applications such as motor speed controllers, bridge amplifiers, and power supply regulation.
The input offset current is 300 nanoamperes.
