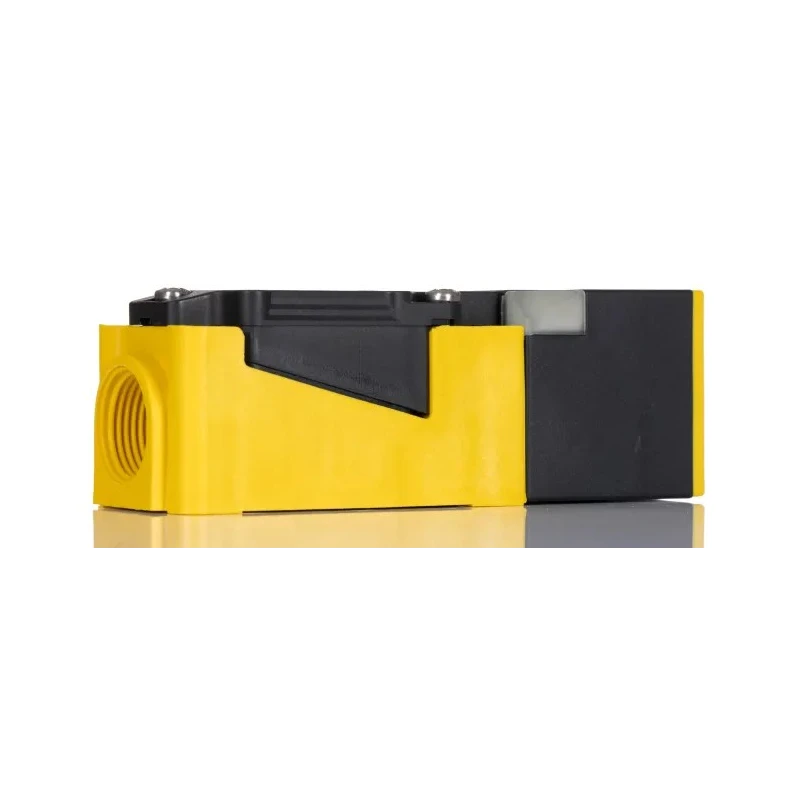

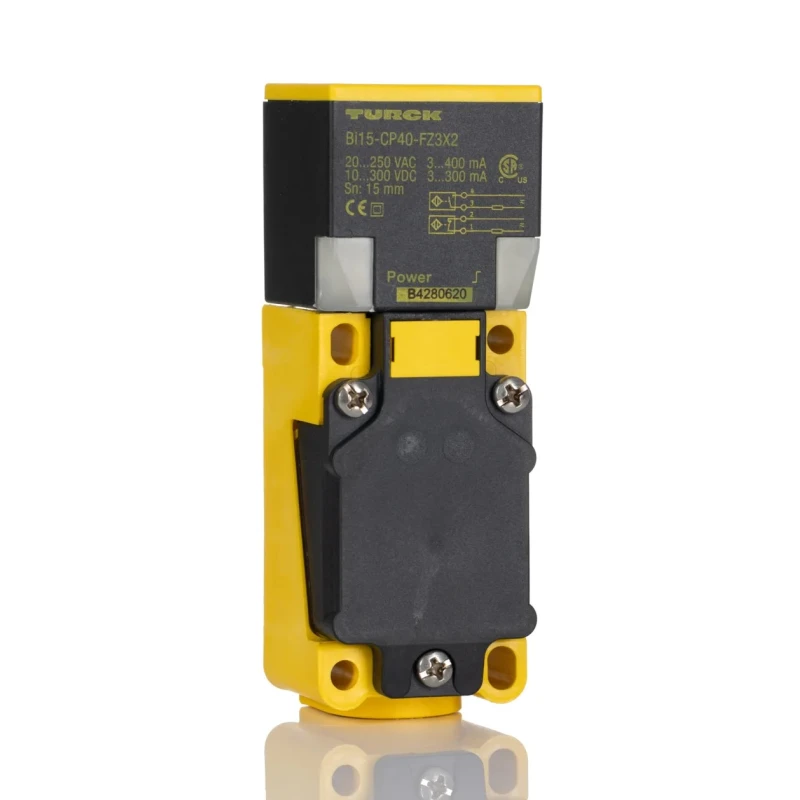

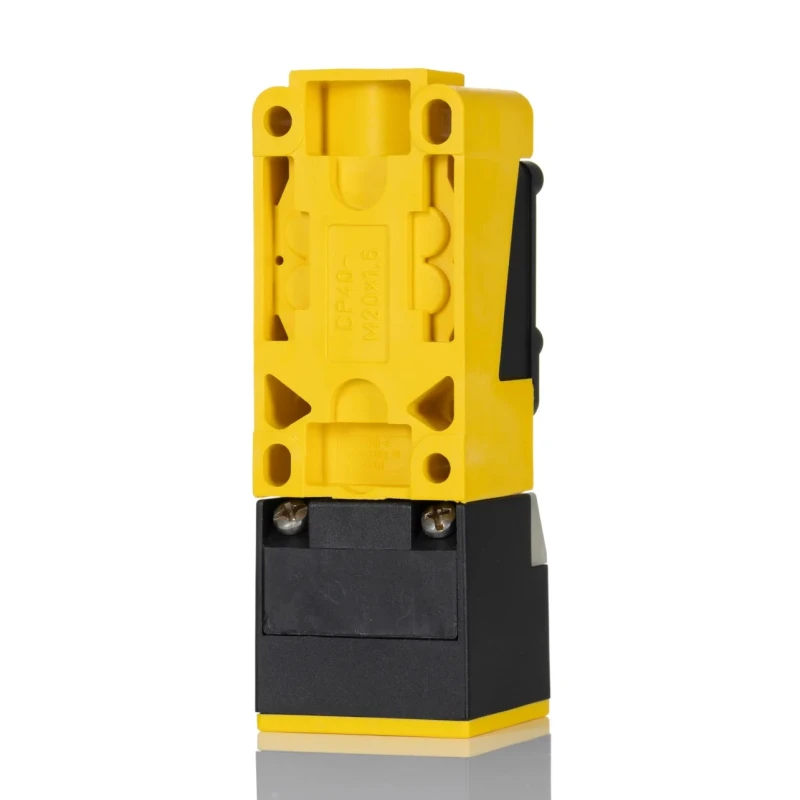

Turck Block Inductive Proximity Sensor M20 Thread, Flush Mounting, Shielded, 15mm Detection, 2-Wire Output BI15-CP40-FZ3X2
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Turck |
| Length | 114mm |
| Model | BI15-CP40-FZ3X2 |
| Depth | 40mm |
| IP Rating | IP67 |
| Width | 40mm |
| Mount Type | Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | 2-Wire |
| Series | BI 15 |
| Maximum Operating Temperature | 70°C |
| Thread Size | M20 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 300, 400mA |
| Terminal type | Screw |
| Body Style | Block |
| Shielding | Shielded |
| Maximum Switching Frequency | 20Hz |
| Maximum AC Voltage | 250V ac |
| Maximum Supply Voltage | 300V dc |
| Maximum Detection | 15mm |
Key Features
- Flush mounting allows the sensor to be installed flat without protruding.
- Shielded body design ensures stable and clear signal transmission.
- Robust Polybutylene Terephthalate housing provides high chemical resistance.
- Suitable for operation between -25°C and 70°C ambient temperature range.
- Supports maximum switching frequency of 20Hz for rapid operation.
- 2-wire output configuration with screw terminals for secure connection.
- Operates safely up to 300V DC and 250V AC maximum supply voltage.
- Detection distance of 15mm with a repeat accuracy of ≤2% of full scale.
Product Description
Turck BI15-CP40-FZ3X2 is a block-style shielded Inductive Proximity Sensor designed for precise detection of ferrous metal objects within a 15mm range. Its M20 threaded design supports flush mounting, ensuring the sensor does not protrude and reducing the risk of accidental damage on installations.
The sensor features a rugged Polybutylene Terephthalate (PBT) housing that offers excellent resistance to chemicals and harsh environmental conditions, making it suitable for demanding industrial applications. It supports an operating temperature range from -25°C up to +70°C and an IP67 rating for protection against dust and water ingress.
Electrical specifications include a maximum operating voltage of 300V DC and 250V AC, with switching currents rated at 300mA and 400mA. The 2-wire output with screw terminals provides easy wiring and integration into existing systems. The sensor's shielded structure ensures minimal interference, delivering reliable and stable detection signals even in electrically noisy environments.
The BI15-CP40-FZ3X2 sensor is widely used across manufacturing industries, conveyor systems, robotics, and assembly line automations. It includes integrated LED indicators for clear operational status monitoring and features short-circuit protection to prevent damage from electrical faults.
This model is manufactured in Germany with a highly reliable design boasting a Mean Time To Failure (MTTF) equivalent to over two millennia, highlighting its long-term durability. It is suitable for deployment in both stationary and vibrating equipment environments due to its elevated mechanical shock and vibration resistance.
Flush mounting to minimize sensor profile and accidental contact. Shielded design for improved signal integrity and reduced interference. Robust chemical-resistant PBT housing suitable for harsh industrial settings. Operating temperature range from -25°C to +70°C for versatile application.
High switching frequency capability of 20Hz supports dynamic processes. 2-wire output type with screw terminal connection for secure wiring. Maximum supply voltages up to 300V DC and 250V AC. 15mm sensing distance with ≤2% repeat accuracy ensures reliable detection.
Short-circuit protection prevents damage from electrical faults. Industrial applications in automation, robotics, manufacturing, and assembly lines. Explore more products and solutions in proximity sensors and industrial automation equipment with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 15mm for ferrous metal objects.
It operates within an ambient temperature range of -25°C to +70°C.
This model features a 2-wire output configuration with screw terminals for secure connection.
The sensor has an IP67 rating, providing protection against dust and water ingress.
It can operate at a maximum supply voltage of 300V DC and 250V AC.
The housing is made of Polybutylene Terephthalate (PBT), which offers high chemical resistance.
The maximum switching frequency is 20Hz, allowing for rapid operation.
The dimensions are 114mm in length, 40mm in width, and 40mm in depth.
Yes, it includes short-circuit protection to prevent damage from electrical faults.
It is widely used in manufacturing industries, conveyor systems, robotics, and assembly line automation.
This model is manufactured in Germany.
The sensor has a repeat accuracy of ≤2% of full scale.
