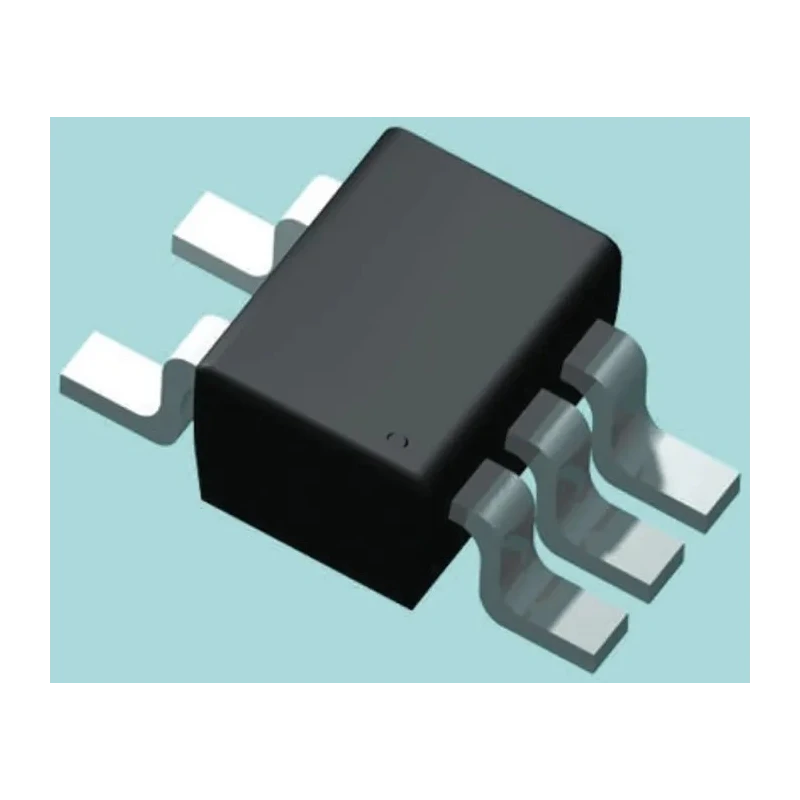

onsemi Operational Amplifier, TSOP 5-Pin Surface Mount, 3.5 MHz Bandwidth, 36 V, 3.5 MHz Gain Bandwidth Product TLV271SN1T1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 3mm |
| Model | TLV271SN1T1G |
| Width | 1.5mm |
| Mount Type | Surface |
| Bandwidth | 3 MHz |
| Series | TLV271 |
| Output Current | 100mA |
| Maximum Operating Temperature | 105°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 3.5MHz |
| Input Bias Current | 150 pA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 2.6V/μs |
| Low supply current | 550 μA |
Key Features
- Provides a gain bandwidth product of 3.5 MHz for wideband amplification applications.
- Operates with a supply voltage range from 2.7 V to 36 V.
- Low supply current of 550 μA supports energy-efficient circuit designs.
- Features rail-to-rail output allowing full range signal swing.
- Packaged in a compact 5-pin TSOP suitable for surface mount technology.
- Input bias current is extremely low at 150 pA for precision analog signals.
- Input offset voltage is minimal at 3 mV ensuring accurate amplification.
- Slew rate of 2.6 V/μs delivers fast response to signal changes.
Product Description
onsemi TLV271SN1T1G is a high-performance operational amplifier designed for demanding electronic applications. This surface mount package (TSOP) contains a 5-pin configuration optimized for compact PCB layouts. The amplifier delivers a gain bandwidth product of 3.5 MHz with an operating supply voltage range between 2.7 V and 36 V, making it versatile for a wide range of power supply conditions.
With a low supply current of 550 μA, the TLV271SN1T1G is well-suited for low power consumption designs without compromising on performance. Its rail-to-rail output stage enables the output voltage to swing close to both supply rails, maximizing dynamic range in low voltage environments.
The device features extremely low input bias current of 150 pA and a low input offset voltage of 3 mV, ideal for precision sensor interfacing and instrumentation applications. The slew rate of 2.6 V/μs ensures the amplifier can respond quickly to rapid changes in input signals, supporting high-frequency applications within its 3 MHz bandwidth.
Built to automotive grade standards (AEC-Q100), this operational amplifier operates reliably across a temperature range of -40°C to 105°C, suitable for industrial, automotive, and harsh environment electronics. Its compact dimensions (3 mm length, 1.5 mm width, and 1 mm height) make it easy to integrate into dense circuit boards.
Gain bandwidth product: 3.5 MHz. Supply voltage range: 2.7 V to 36 V. Low supply current: 550 μA. Rail-to-rail output capability. Input bias current: 150 pA. Input offset voltage: 3 mV. Slew rate: 2.6 V/μs. Automotive standard AEC-Q100 compliant.
This operational amplifier is broadly applicable in industrial automation, automotive electronics, precision instrumentation, and general analog signal processing tasks. Explore more on Operational Amplifiers at EnvMart for high-quality semiconductor devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 3.5 MHz, suitable for wideband amplification applications.
It operates with a supply voltage range from 2.7 V to 36 V, making it versatile for various power supply conditions.
This model can provide a maximum output current of 100 mA, allowing it to drive various loads effectively.
The input bias current is extremely low at 150 pA, which is beneficial for precision analog signal applications.
The slew rate is 2.6 V/μs, enabling the amplifier to respond quickly to changes in input signals.
The dimensions are 3 mm in length, 1.5 mm in width, and 1 mm in height, making it suitable for compact PCB layouts.
It operates reliably across a temperature range from -40°C to 105°C, suitable for various environments.
This operational amplifier is packaged in a compact 5-pin TSOP, optimized for surface mount technology.
Yes, it is built to automotive grade standards and is AEC-Q100 compliant, ensuring reliability in automotive applications.
The input offset voltage is minimal at 3 mV, ensuring accurate amplification of signals.
The low supply current is 550 μA, supporting energy-efficient circuit designs without compromising performance.
This operational amplifier is broadly applicable in industrial automation, automotive electronics, and precision instrumentation.
