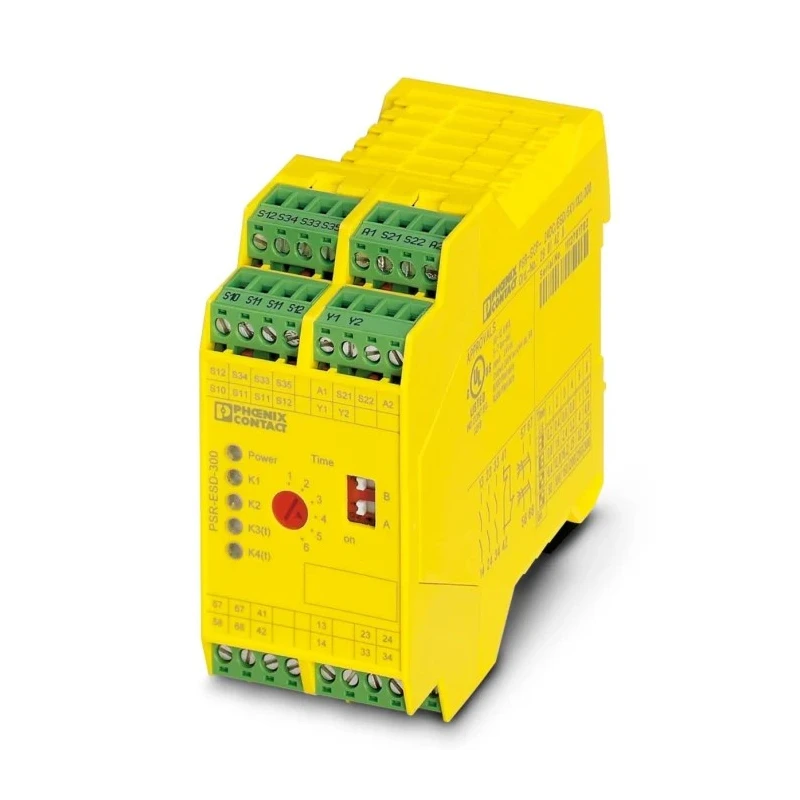

Phoenix Contact Safety Relay 24V DC Power Consumption 3.72W 5 Safety Contacts SPDT PSR-SPP 2981431

Phoenix Contact 2981431 Safety Relay is designed for emergency stop functions and safety door monitoring in industrial automation systems. It features a 24V DC coil voltage with a power consumption of 3.72W, providing stable and efficient operation for safety-critical applications.

This safety relay is equipped with 5 safety contacts configured as SPDT and supports manual reset with push-in terminals that simplify connection and maintenance. The relay supports an adjustable time delay ranging from 0.2 to 300 seconds, allowing customization for various control scenarios.

The device is designed for DIN rail mounting, optimizing panel space with compact dimensions of 112 mm in height, 50 mm in length, and 45 mm in width. It operates reliably in environments with temperatures between -20°C and 55°C and offers protection according to IP20 standards.

Certification to IEC 62061, IEC 61508, and EN ISO 13849 supports its use in applications requiring a SIL 3 or PLe/Category 4 safety category. With 6A contact current and the capability to switch voltages up to 240V AC and 250V DC, it suits a wide range of industrial control and safety systems.

Operates on a 24V DC coil voltage ensuring stable control circuit supply. Features 5 safety contacts with SPDT contact configuration for versatile switching applications. Manual reset method and push-in terminal type for easy installation and operation.

Typically consumes 3.72 watts of power during operation. Compact DIN rail mountable design with dimensions 112 mm (H) x 50 mm (L) x 45 mm (W). Certified to IEC 62061, IEC 61508, and EN ISO 13849 standards ensuring high safety category SIL 3, PLe/Category 4.

Operating temperature range from -20°C to 55°C suitable for various industrial environments. Switching capability up to 240V AC and 250V DC with a contact current rating of 6A. IP20 rated enclosure providing standard protection against solid objects.

Manufactured in Germany ensuring quality and reliability.

This Phoenix Contact safety relay is ideal for industrial automation, electrical control systems, manufacturing safety controls, and commercial machinery safety applications requiring certified, high-reliability safety relays. Explore more Safety Relays and industrial automation equipment on EnvMart for your technical needs.
