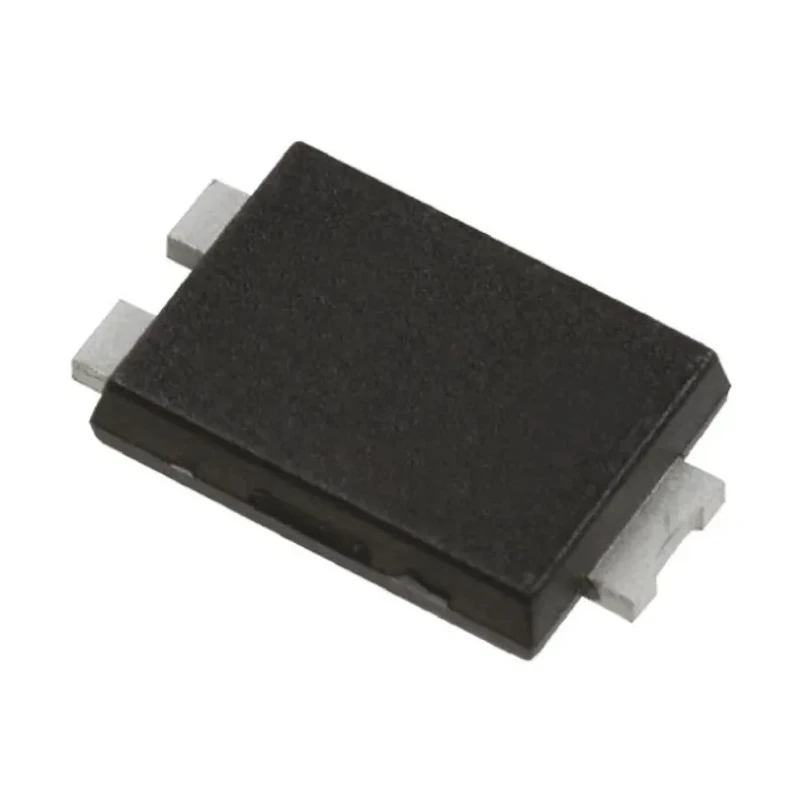

DiodesZetex 60 V 3 A Schottky Barrier Diode Surface Mount PowerDI5 3-Pin PDS360-13

DiodesZetex PDS360-13 is a high-reliability Schottky Barrier Diode designed for surface mount applications in power electronics. This device is ideal for industrial, automotive, and electronic systems where low forward voltage drop and high surge current capacity are critical.

The diode features a 3-pin PowerDI5 package allowing compact and efficient PCB mounting. It is rated for a continuous forward current of 3 amperes and can withstand peak repetitive reverse voltages up to 60 volts. The low forward voltage of 760 millivolts reduces power loss and increases overall system efficiency.

Designed to perform excellently within a temperature range of -65°C up to 150°C, the PDS360-13 diode is suitable for harsh operating environments including automotive applications compliant with AEC-Q101 standards. It handles peak non-repetitive surge currents up to 100 amperes, protecting circuits from transient surges.

Typical dimensions of this diode include a height of 1.15 mm, length of 4.05 mm, and width of 5.45 mm, making it suitable for compact electronic assemblies. The maximum reverse current leakage is 15 milliamperes, ensuring minimal leakage loss in high-performance circuits.

The Schottky barrier construction provides superior switching speeds and thermal stability compared to traditional PN diodes, making it an excellent choice for power rectification, free-wheeling, and protection in power supplies, automotive electronics, and industrial equipment.

This diode is designed with a surface mount mount type for compact PCB assembly. The package type is PowerDI5 with three pins for reliable connection. It has a peak reverse repetitive voltage (VRRM) of 60 volts ensuring robust reverse voltage tolerance.

The maximum forward voltage drop is a low 760 millivolts, improving efficiency in power circuits. Operating temperature range from -65°C to 150°C provides high thermal stability for industrial applications. It supports a peak non-repetitive forward surge current of 100 amperes suitable for transient conditions.

The diode offers a maximum reverse leakage current of 15 milliamperes, minimizing standby losses. Dimensions are compact with a height of 1.15 mm, length of 4.05 mm and width of 5.45 mm. This product meets AEC-Q101 automotive standard ensuring suitability for automotive environments.

The diode series is PDS360 and is manufactured in China. This Schottky Diode is commonly used in power rectification, switching circuits, and automotive electronics where high efficiency and reliability are critical. Explore the broad range of semiconductor components and power diodes available at EnvMart to fulfill your specialized industrial electronic needs.
