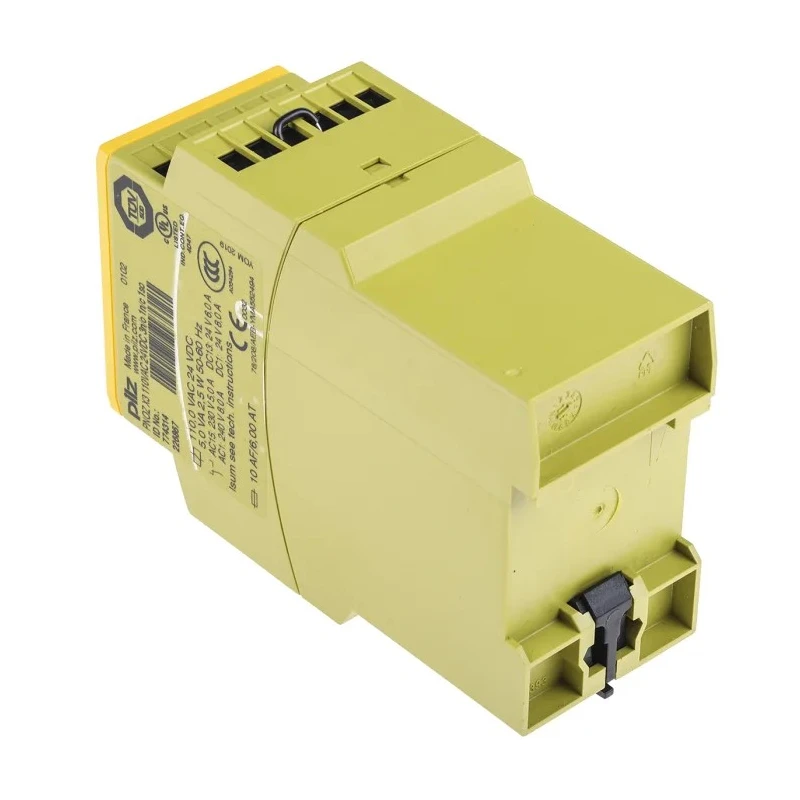

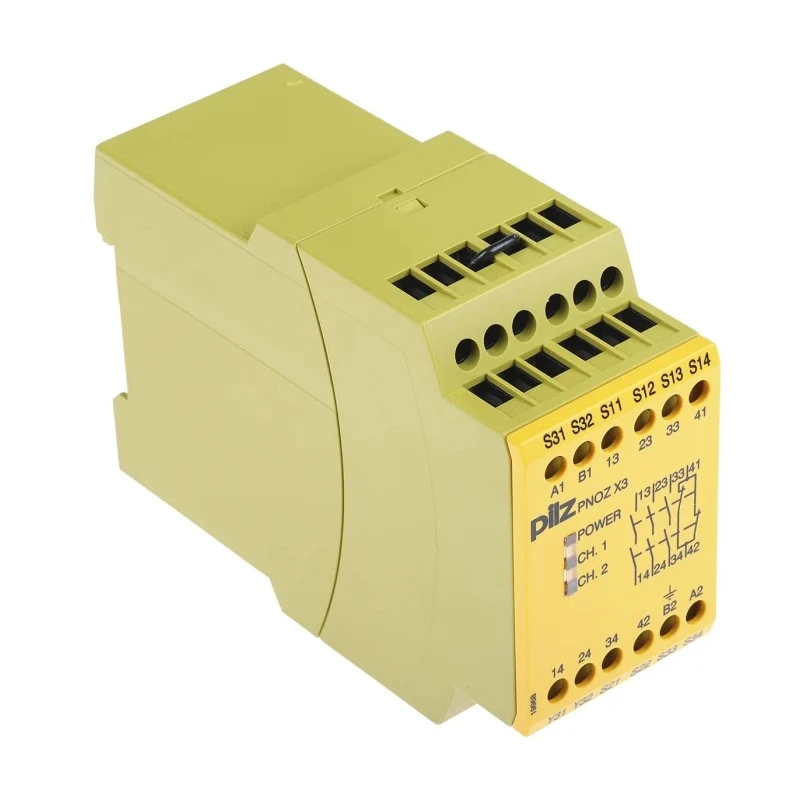

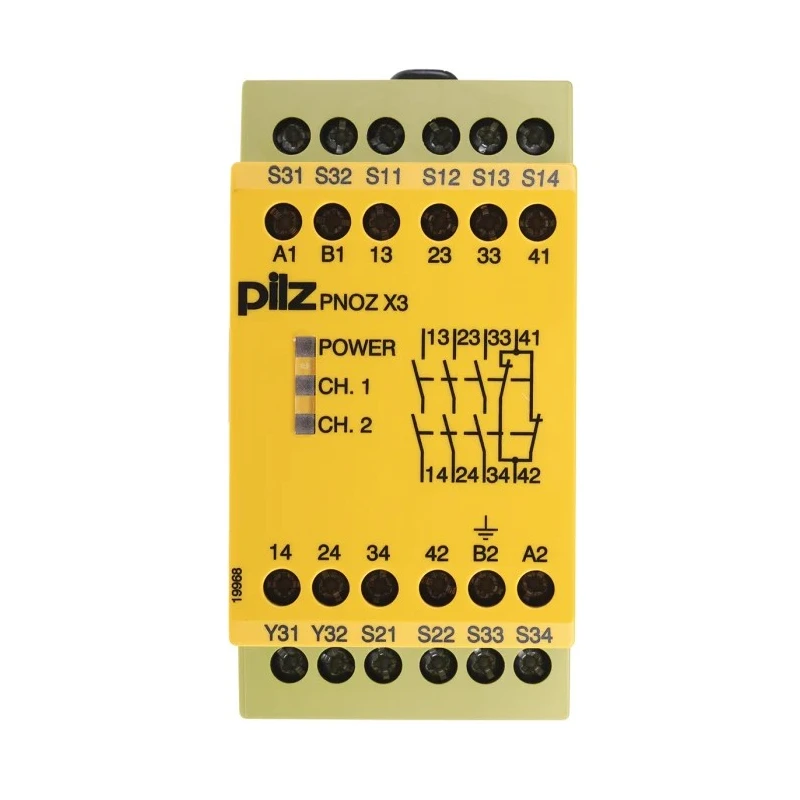

Pilz Safety Relay, 3 Safety Contacts, 1 Auxiliary Contact, DIN Rail Mount, 110V AC/DC and 24V AC/DC Coil Voltage 774314

Pilz 774314 Safety Relay from the PNOZ X3 series is engineered for high safety integrity in industrial automation and control systems. Featuring 3 safety contacts and 1 auxiliary contact, this device ensures dependable interruption of hazardous circuits in manufacturing, processing, and material handling operations.

With coil voltages supporting both 110V AC/DC and 24V AC/DC, the relay offers flexible deployment options. It mounts easily on DIN rails and uses robust screw terminals for secure wiring. The relay is equipped with semiconductor output signals for switching status indication on channels 1 and 2, facilitating enhanced control diagnostics.

This safety relay incorporates automatic testing of the opening and closing safety functions during each switching cycle, along with a monitored manual reset mechanism. These features provide reliable prevention against unintended restarts and support compliance with stringent safety protocols.

Designed to meet multiple international standards such as EN ISO 13849-1, IEC 61511, EN 60204-1, and more, the product is certified for dependable use in critical safety applications. Its PLe Category 4 safety classification confirms its suitability for environments demanding maximum risk reduction.

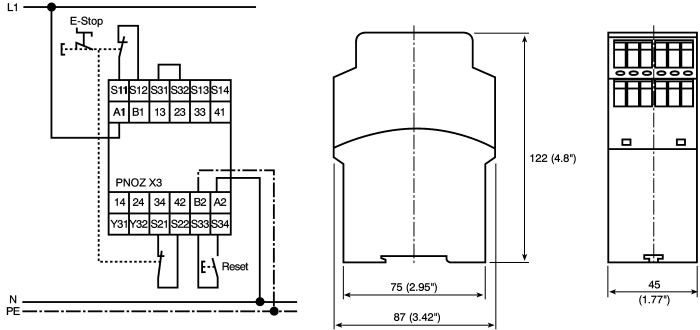

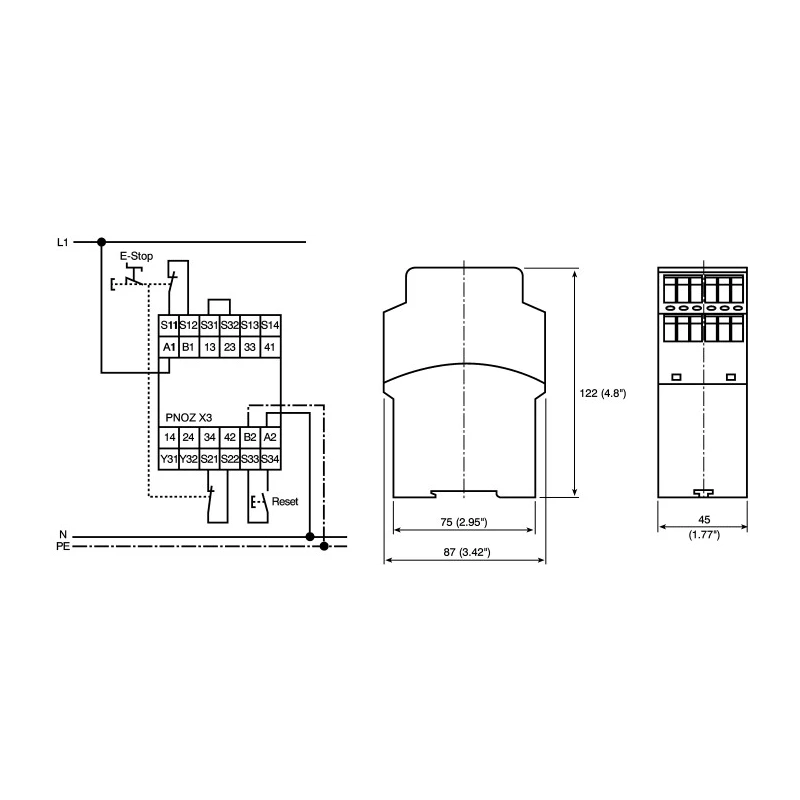

With an operating temperature range from -20°C to 55°C and protection ratings including IP40, IP20, and IP54, this relay reliably performs in harsh industrial conditions. The compact dimensions (121 mm high, 87 mm long, 45 mm wide) allow integration into various control panels and cabinets.

Equipped with 3 safety contacts and 1 auxiliary contact for robust circuit interruption. Supports 110V AC/DC and 24V AC/DC coil voltage supply options. DIN rail mounting with screw terminals ensures secure and standardized installation.

Semiconductor output signals enable clear channel status monitoring. Automatic testing of safety function switch cycles enhances operational reliability. Monitored manual reset provides additional safety and control assurance.

Complies with multiple safety and electrical standards for industrial certification. Rated for PLe Category 4 providing high-level safety protection in hazardous environments. Compact design fits diverse industrial control setups with wide operating temperature tolerance.

This Pilz PNOZ X3 Safety Relay is ideal for emergency stop circuits, safety gate monitoring, reset functions, and light barrier safety applications within industrial, manufacturing, and automation sectors. Explore more products from Pilz in the Relays & Contactors category at EnvMart for your comprehensive safety and control solutions.
