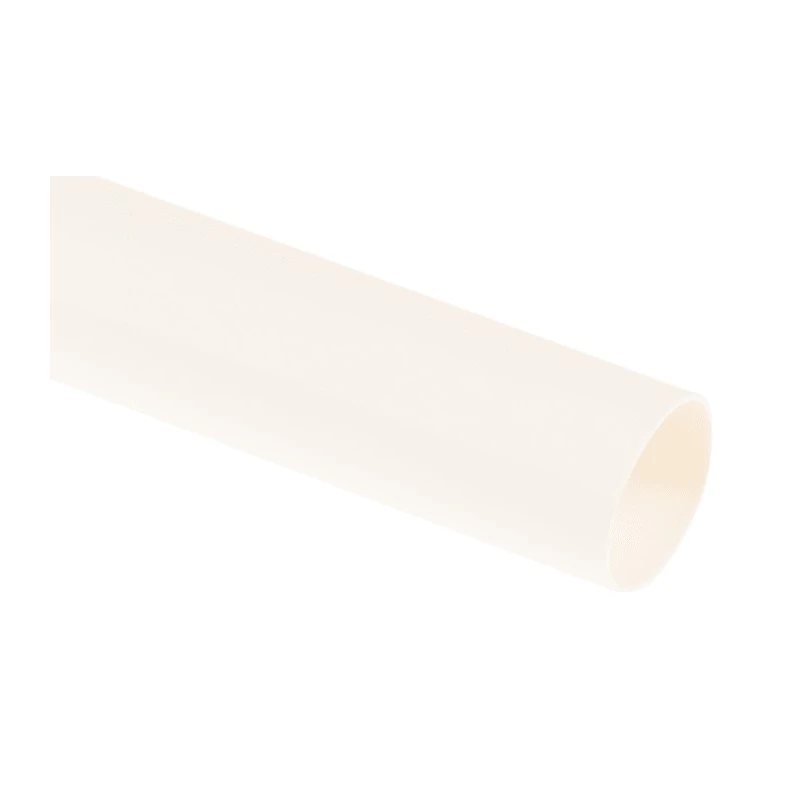

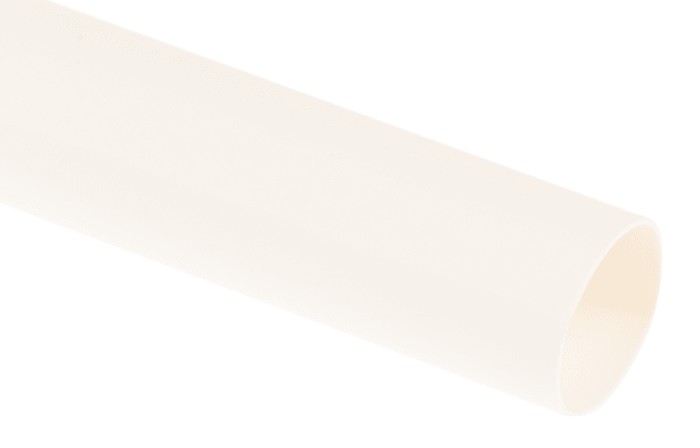

RS PRO Polyolefin Heat Shrink Tubing, White Colour, 9.5 mm Sleeve Diameter x 1.2 m Length, 2:1 Shrink Ratio, Flame 392-270
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Material | Polyolefin |
| Colour | White |
| Model | 392-270 |
| Standards/Approvals | BS3G 198 Part 3 11B, CSA C22.2 No. 198.1, IEC 60684-3-212 A&B, MIL SAE-AMS-DTL 23053/5 Class 1, RoHS Compliant, UL 224 VW-1 E48762, VG 95343 Part 5 A&B |
| Shrunk Diameter | 4.8mm |
| Sleeve Diameter | 9.5mm |
| Shrink Ratio | 2:1 |
| Sleeve Length | 1.2m |
| RS Pro Flexible Polyolefin Heat Shrink Tubing with 2 | 1 Shrink Ratio |
| Shrink Ratio 2 | 1 |
| RS PRO Halogen Free Heat Shrink Tubing, White 9.5 mm Sleeve Dia. x 1.2m Length 2 | 1 RatioBrand: RS PRO |
| TE Connectivity Heat Shrink Tubing, White 9.5 mm Sleeve Dia. x 1.2m Length 2 | 1 Ratio, RNF-100 SeriesBrand: TE Connectivity |
| Thomas & Betts Heat Shrink Tubing Kit, White 9.5 mm Sleeve Dia. x 6.5m Length 2 | 1 Ratio, HSB SeriesBrand: Thomas & Betts |
Key Features
- The tubing has a sleeve diameter of 9.5 mm and shrinks to 4.8 mm when heated.
- The length of the tubing is 1.2 meters, suitable for versatile cable applications.
- Made from flexible polyolefin material offering excellent electrical insulation properties.
- Flame retardant and suitable for operating temperatures from -55°C to 135°C, with short duration up to 200°C.
- Complies with multiple industrial standards including SAE-AMS-DTL-23053/5 Class 1 and UL 224 VW-1.
- Ideal for protecting, insulating, and sealing cable joints in industrial, aerospace, automotive, and electronics applications.
- Resistant to common fluids and solvents ensuring durability in harsh environments.
Product Description
The RS PRO 392-270 Heat Shrink Tubing is a high-quality, flexible polyolefin tubing designed for electrical insulation and protection of cables and wire joints. It features a 9.5 mm sleeve diameter and a 1.2 m sleeve length with a 2:1 shrink ratio, meaning the tubing shrinks to half of its original diameter providing a secure protective seal.
This heat shrink tubing is flame retardant and offers excellent electrical insulation, making it suitable for a wide range of demanding industrial applications including aerospace, automotive, manufacturing, electronics assembly, and construction machinery.
Manufactured in Germany, the tubing meets rigorous international standards such as BS3G 198 Part 3 11B, CSA C22.2 No. 198.1, IEC 60684-3-212 A&B, MIL SAE-AMS-DTL-23053/5 Class 1, RoHS Compliance, UL 224 VW-1 E48762, and VG 95343 Part 5 A&B, ensuring reliability and safety.
The polyolefin material used is highly flexible, resistant to common chemicals and solvents, and maintains performance over a broad temperature range from -55°C to +135°C, withstanding short-term exposures up to 200°C. This makes it well-suited for industrial environments where durability and performance are critical.
The tubing is easily cut to size and applied using heat to form a permanent, secure encapsulation around cable joints or wire splices, protecting them from mechanical abrasion, moisture, dust, and chemical attack. This product is extensively used for electrical insulation of resistors, capacitors, and wiring repairs.
The tubing shrinks radially, creating a tight and durable seal. It provides mechanical strain relief on cable and connector joints, improving the longevity of electrical systems. The flame retardant feature ensures safety in fire-prone environments.
The product supports quick installation with reliable sealing results. It is applicable in diverse sectors including industrial machinery, electronics, automotive, and aerospace. For more high-quality Heat Shrink Tubing and related products, browse the categories within Electronics & Electricals at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sleeve diameter of this model is 9.5 mm.
The shrink ratio is 2:1, meaning it shrinks to half of its original diameter.
When heated, the tubing shrinks to a diameter of 4.8 mm.
It operates within a temperature range of -55°C to 135°C, with short durations up to 200°C.
It complies with several standards including BS3G 198 Part 3 11B, CSA C22.2 No. 198.1, and UL 224 VW-1.
Yes, this model is flame retardant, ensuring safety in fire-prone environments.
It forms a permanent, secure encapsulation around cable joints or wire splices, protecting them from mechanical abrasion, moisture, dust, and chemical attack.
The tubing is manufactured in Germany.
