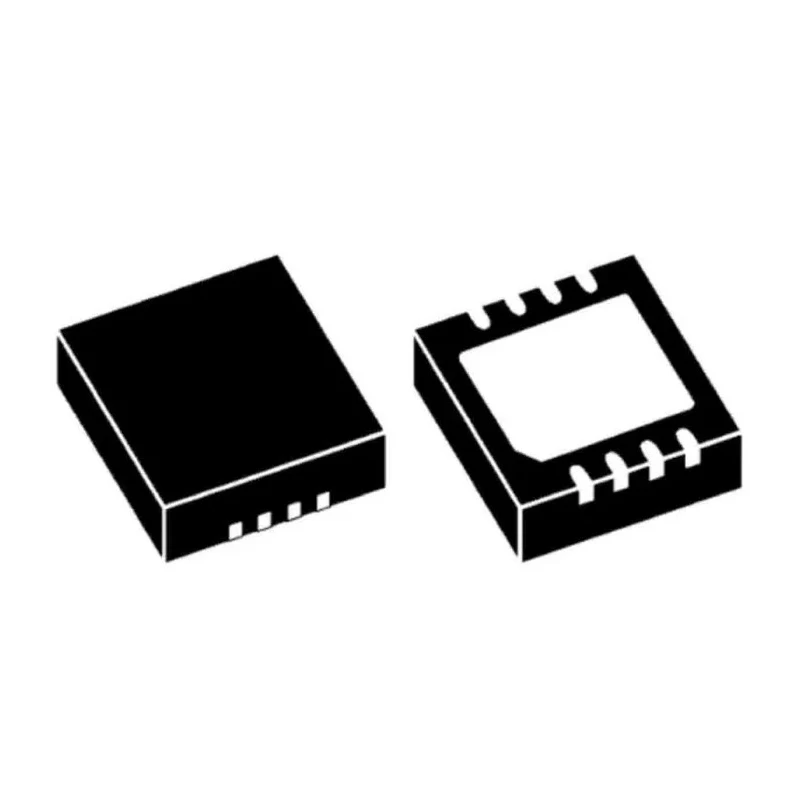

onsemi NTTF Type P-Channel MOSFET, 96 A, 30 V Depletion Mode, 8-Pin PQFN Package NTTFS008P03P8Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.4mm |
| Length | 3.4mm |
| Model | NTTFS008P03P8Z |
| Width | 800μm |
| Mount Type | Surface |
| Series | NTTF |
| Maximum Operating Temperature | 150°C |
| Package Type | PQFN |
| Minimum Operating Temperature | -55°C |
| Pin Count | 8 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 96A |
| Maximum Drain Source Voltage Vds | 30V |
| Maximum Drain Source Resistance Rds | 3.8mΩ |
| Channel Mode | Depletion |
| Maximum Power Dissipation Pd | 50W |
| Typical Gate Charge Qg @ Vgs | 134nC |
| Maximum Gate Source Voltage Vgs | 25V |
Key Features
- This MOSFET operates in depletion mode and features a low drain-source resistance of 3.8 milliohms.
- It supports a maximum power dissipation of 50 W, suitable for demanding power applications.
- The device can operate within a wide temperature range from -55°C to 150°C.
- It has a typical gate charge of 134 nC at specified gate voltage, ensuring efficient switching performance.
- The compact PQFN package measures 3.4 mm x 3.4 mm x 0.8 mm, facilitating surface mount assembly.
- Designed for surface mount technology with 8 pins, it supports robust electrical and thermal conduction.
- The maximum gate-source voltage rating is 25 V, ensuring device protection under typical operating conditions.
- The product is Pb-free, halogen-free, RoHS compliant, and environmentally friendly.
Product Description
onsemi NTTFS008P03P8Z is a Type P-Channel MOSFET designed for high current and low voltage load switching, reverse current protection, and battery management applications.
It has a maximum continuous drain current rating of 96 A and a maximum drain-source voltage of 30 V, making it suitable for power load switching and over voltage protection in various industrial and electronics applications.
The device operates in depletion mode with a low drain-source resistance of 3.8 milliohms, enabling efficient conduction with minimal power loss. The MOSFET's typical gate charge of 134 nC supports rapid switching for power management circuits, enhancing performance and energy efficiency.
Dimensioned with a compact 8-Pin PQFN surface mount package of 3.4 mm length and width, and 0.8 mm height, it offers excellent thermal conduction and space-saving benefits in circuit designs.
Operating temperature ranges from -55°C up to 150°C provide robustness for automotive, industrial, and commercial electronics. This product is Pb-free, halogen-free, and RoHS compliant, ensuring environmental safety and regulatory compliance.
This MOSFET is ideal for industrial, laboratory, automotive, HVAC, and manufacturing power electronics applications. The compact surface mount configuration allows for easy integration into modern printed circuit boards (PCBs).
The NTTFS008P03P8Z model from onsemi is designed to offer reliable and efficient performance in power switching and protection tasks. Its depletion mode operation offers additional circuit design flexibility especially in load switching and reverse current prevention.
Explore more power semiconductors and MOSFETs in the EnvMart Electronics category for your design and manufacturing needs.
Explore more products in our Power MOSFET category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current rating of this model is 96 A.
This MOSFET has a maximum drain-source voltage of 30 V.
The typical gate charge at the specified gate voltage is 134 nC.
It operates within a temperature range from -55°C to 150°C.
This model comes in an 8-pin PQFN package, measuring 3.4 mm x 3.4 mm x 0.8 mm.
The maximum power dissipation for this device is 50 W.
It features a Type P channel and operates in depletion mode.
The maximum gate-source voltage rating for this model is 25 V.
The maximum drain-source resistance is 3.8 milliohms.
Yes, it is Pb-free, halogen-free, and RoHS compliant, ensuring environmental safety.
This MOSFET is designed for surface mount technology.
The country of origin for this model is India.
