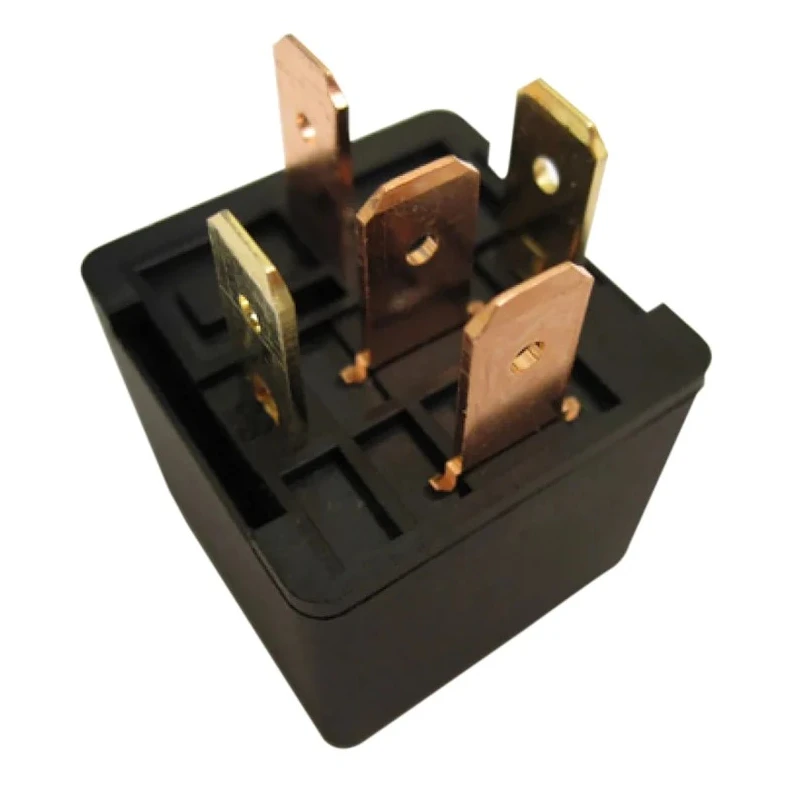

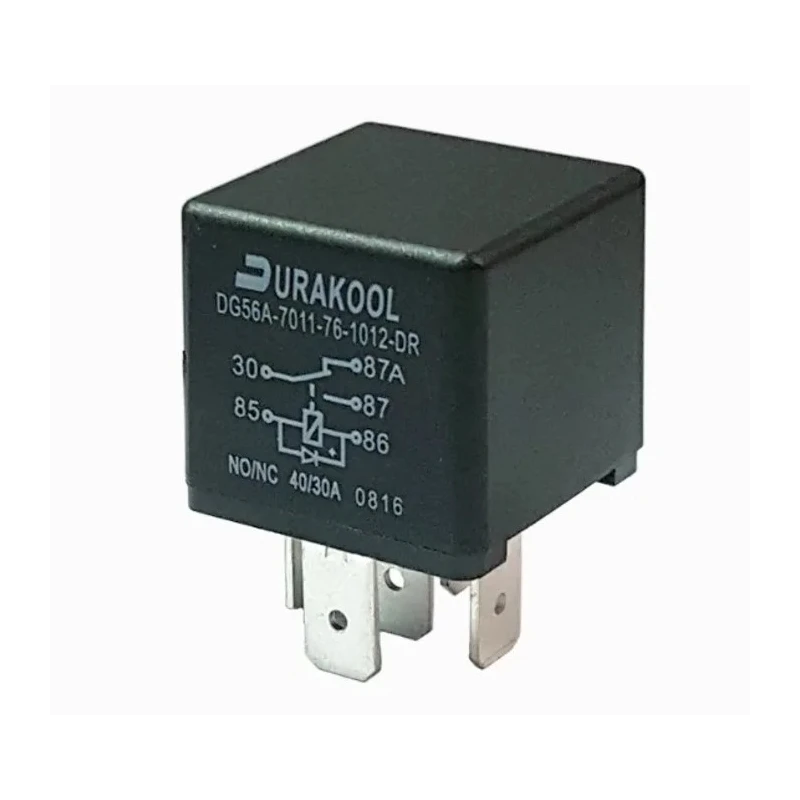

Durakool PCB Automotive Relay 12V DC Coil Voltage 1.8W Coil Power 40A Switching Current SPDT DG56A-7011-96-1012-M1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 41mm |
| Length | 26.2mm |
| Model | DG56A-7011-96-1012-M1 |
| Depth | 26.2mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide Indium Oxide |
| Series | DG56 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 85Ω |
| Coil Power | 1.8W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- This relay features a coil power consumption of 1.8W for efficient operation.
- Equipped with an SPDT (Single Pole Double Throw) contact configuration for versatile switching.
- Designed with quick connect terminal types for easy PCB mounting and installation.
- Suitable for operating temperatures ranging from -40°C to 125°C, ensuring durability in harsh environments.
- Body dimensions are compact at 26.2mm length, 41mm height, and 26.2mm depth, fitting standard industry footprints.
- Constructed with silver tin oxide indium oxide contact material to ensure high reliability and conductivity.
- Offers high isolation between coil and contact at 500Vrms for enhanced safety.
- Ideal for DC motor control and other automotive electrical applications requiring high resistance to inrush current.
Product Description
Durakool DG56A-7011-96-1012-M1 PCB Automotive Relay is a general-purpose mini ISO automotive power relay designed to provide reliable switching performance in automotive electrical systems. Its non-latching coil design offers a long expected life cycle, making it a durable choice for sustained operation in automotive environments.
This relay operates with a 12V DC coil voltage and consumes 1.8W of coil power, featuring a high coil resistance of 85Ω that contributes to its efficiency. The SPDT contact configuration and single-pole design allow for versatile switching capability essential in various control circuits.
The relay body measures 26.2mm in length, 41mm in height, and 26.2mm in depth, conforming to industry standard sizes and mounting footprints. Its quick-connect terminals facilitate easy and secure PCB mounting for seamless integration into automotive control boards and equipment.
Engineered to withstand temperature extremes from -40°C to 125°C, this automotive relay is suitable for use in diverse environmental conditions encountered in automotive and industrial applications. The contact material comprises silver tin oxide indium oxide, providing excellent conductivity and reliable electrical contact performance over the product lifespan.
The relay offers robust isolation between coil and contact rated at 500Vrms, enhancing electrical safety in demanding automotive circuits. It has excellent resistance to inrush currents and supports high continuous DC current capacity up to 40A, making it ideal for DC motor control tasks.
Coil Power: 1.8W providing efficient power usage. Contact Configuration: SPDT for versatile switching. Terminal Type: Quick connect ease for PCB mounting. Operating Temperature Range: -40°C to 125°C. Durakool DG56 series with reliable performance and high endurance.
Compact size for space-saving applications. Silver tin oxide indium oxide contact material for durability. 500Vrms isolation between coil and contact for safety. RoHS compliant, supporting environmental standards.
This product is primarily used in automotive electrical systems, industrial automation, and control circuits requiring dependable relay switching components. Durakool's DG56A Series is recognized for its industry-standard footprint, high resistance to inrush current, and adaptability in controlling DC motors and other automotive consumers.
Find similar automotive relays and accessories in the Automotive Relays category to complement your electrical control setup. Durakool delivers trusted quality and advanced technology in Automotive Relay components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a 12V DC coil voltage and consumes 1.8W of coil power.
It supports a maximum switching current of 40A, making it suitable for various automotive applications.
This relay features an SPDT (Single Pole Double Throw) contact configuration, allowing for versatile switching capabilities.
The relay has dimensions of 26.2mm in length, 41mm in height, and 26.2mm in depth, fitting standard industry footprints.
It is designed to operate within a temperature range of -40°C to 125°C, suitable for harsh environmental conditions.
It is equipped with quick connect terminals, facilitating easy PCB mounting and installation.
The contact material is silver tin oxide indium oxide, which ensures high reliability and conductivity.
The relay offers an isolation rating of 500Vrms between the coil and contact, enhancing electrical safety.
It has excellent resistance to inrush currents, making it suitable for applications that require high durability.
The coil resistance is rated at 85Ω, contributing to its efficient operation.
This relay is primarily used in automotive electrical systems, industrial automation, and control circuits requiring reliable switching.
It belongs to the Durakool DG56 series, known for its reliable performance and high endurance in automotive environments.
