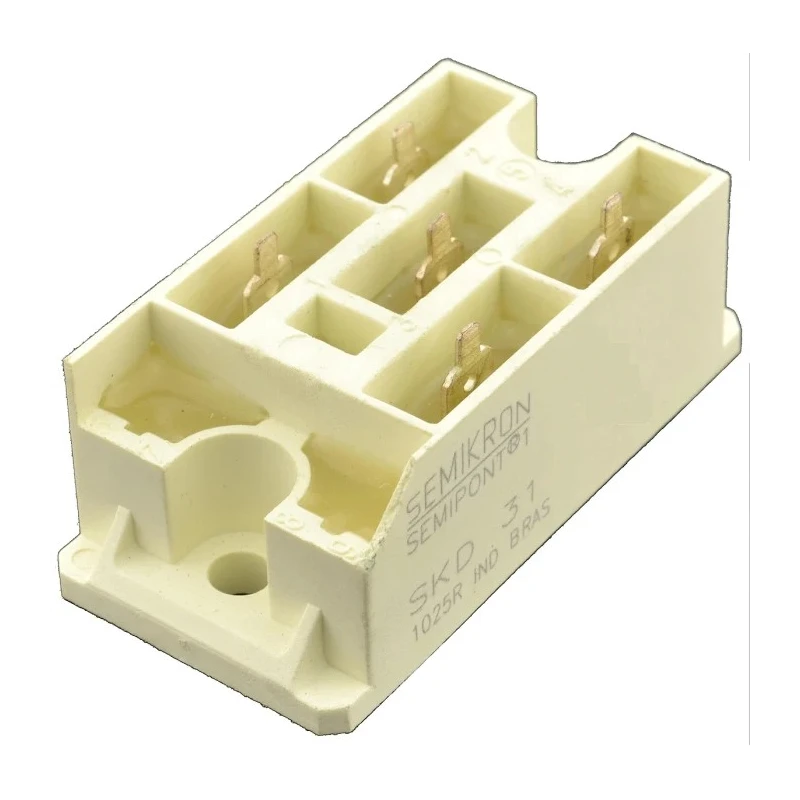

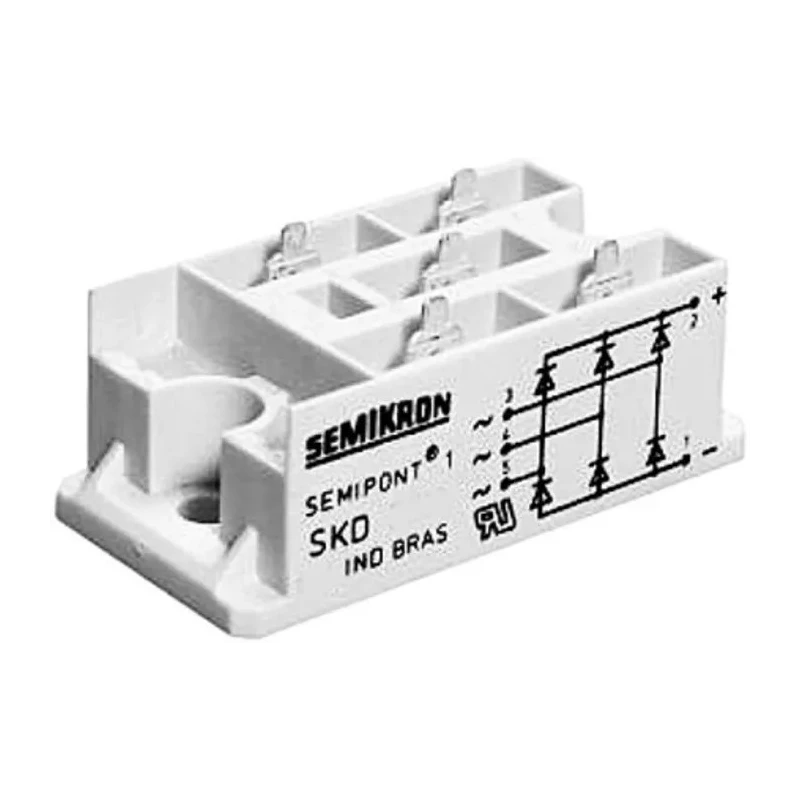

Semikron Danfoss Bridge Rectifier Module 800 V 1.5 kA 7-Pin Single SKD 31/08
Specifications
| Country of Origin | Brazil |
|---|---|
| Brand | Semikron Danfoss |
| Height | 30mm |
| Length | 93mm |
| Model | SKD 31/08 |
| Width | 20mm |
| Mount Type | Panel |
| Series | SKD 31 |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | A-46 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pin Count | 7 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.5kA |
| Forward Current If | 75A |
| Peak Forward Voltage Vf | 1.75V |
| Semikron Danfoss Bridge Rectifier Module, 1600 V 1.5 kA, 5-Pin SingleBrand | Semikron Danfoss |
Key Features
- Rated peak reverse repetitive voltage of 800 V ensures effective operation under high voltage stress.
- Forward current capacity of 75 A supports demanding industrial electrical loads.
- Peak non-repetitive forward surge current of 1.5 kA allows handling of transient current surges.
- Panel mount type with A-46 package and 7 pins supports easy installation.
- Operating temperature range from -40°C to 125°C for versatile environmental performance.
- Single configuration suitable for three-phase electrical systems.
- Manufactured in Brazil maintaining high-quality standards.
Product Description
Semikron Danfoss SKD 31/08 Bridge Rectifier Module is a robust three-phase rectifier module engineered to convert alternating current (AC) to direct current (DC) efficiently in industrial and commercial applications. With a peak reverse repetitive voltage rating of 800 V and a peak non-repetitive forward surge current capacity of 1.5 kA, it supports high power loads safely and reliably.
This module features a panel mount design with an A-46 package and a 7-pin configuration, facilitating straightforward mounting and wiring. Its operational temperature range from -40°C to 125°C ensures dependable performance in diverse industrial environments, including power & connectors, semiconductors, and electronic components sectors.
The dimensions of 93 mm length, 20 mm width, and 30 mm height, combined with the single configuration, make it suitable for integration into compact assemblies. It is designed with a SEMIPONT®1 Series isolated metal base plate and fast-on terminals with solder tips, compatible with wave soldering techniques.
Ideal for applications requiring efficient power rectification such as industrial automation, power control, and energy conversion systems. This product is made in Brazil and adheres to stringent manufacturing standards, although it does not carry specific approvals or automotive certifications.
Peak reverse repetitive voltage of 800 V for high voltage tolerance. Forward current rating of 75 A for high current applications. Peak non-repetitive forward surge current capacity of 1.5 kA. Operating temperature range from -40°C to 125°C for versatile use.
Compact and panel mountable design with A-46 package. 7-pin single configuration for three-phase rectification. Isolated metal base plate and fast-on terminals for reliable connections. Manufactured in Brazil ensuring quality and durability.
Explore more semiconductor and Bridge Rectifier Modules on EnvMart to find components perfectly suited for your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating is 800 V, allowing it to operate effectively under high voltage stress.
This model has a forward current capacity of 75 A, suitable for demanding industrial electrical loads.
It can handle a peak non-repetitive forward surge current of 1.5 kA, which allows it to manage transient current surges safely.
The dimensions are 93 mm in length, 20 mm in width, and 30 mm in height, making it compact for various applications.
It operates within a temperature range of -40°C to 125°C, ensuring versatility in various environmental conditions.
It features a panel mount design with an A-46 package and a 7-pin configuration, facilitating easy installation and wiring.
It is designed for single configuration in three-phase electrical systems, making it suitable for industrial applications.
It is equipped with fast-on terminals with solder tips, compatible with wave soldering techniques for reliable connections.
This product is manufactured in Brazil, adhering to high-quality standards during production.
The peak forward voltage is rated at 1.75 V, which is relevant for its performance in rectification applications.
It belongs to the SEMIPONT®1 Series, designed for efficient power conversion and rectification.
The SKD 31/08 does not carry specific approvals or automotive certifications, but it meets stringent manufacturing standards.
