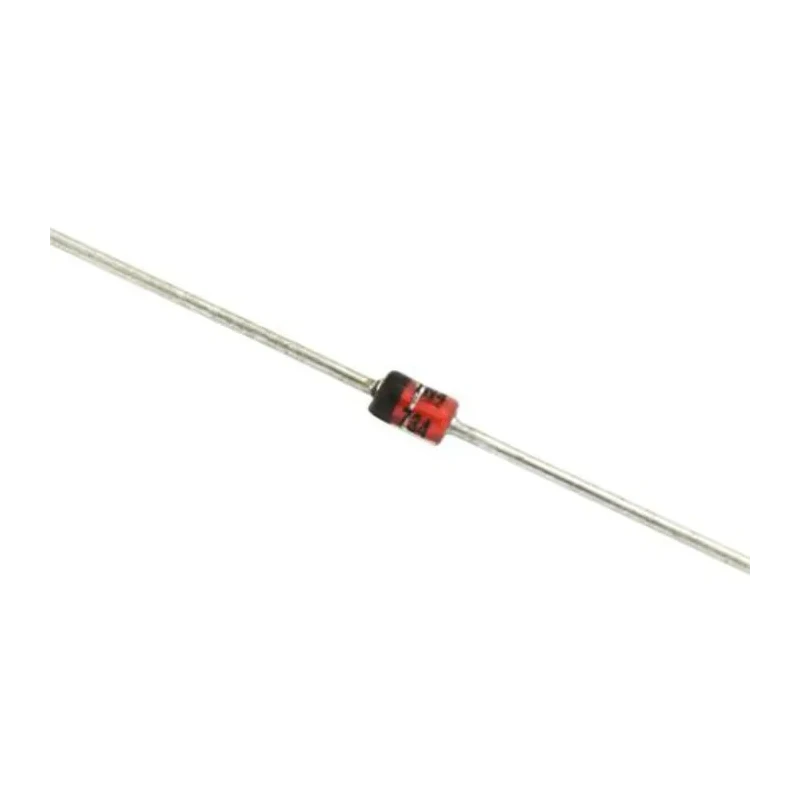

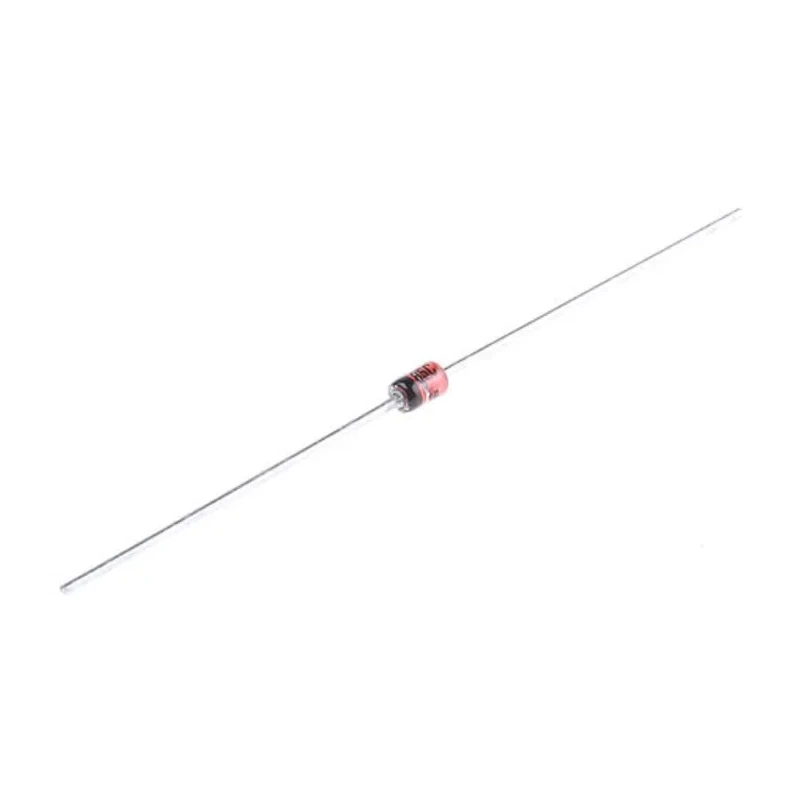

Vishay 600 V 1 A General Purpose Diode 2-Pin DO-204AL 1N4005E-E3/54

Vishay 1N4005E-E3/54 is a general purpose diode rated for 600 V peak reverse voltage and 1 A maximum continuous forward current. It is housed in a compact DO-204AL (equivalent to DO-41) plastic package with a length of 5.2 mm and diameter of 2.7 mm, designed for through-hole mounting with tin-plated leads. The diode features a low forward voltage drop of 1.1 V and low leakage current, optimizing efficiency in various electronic circuits.

This diode is commonly used in rectification of power supplies, inverter circuits, and converters. Its high forward surge current capability (30 A peak non-repetitive) enhances ruggedness against transient overloads. The operating junction temperature range is from -55°C to 150°C, accommodating demanding industrial and commercial applications.

Configured as a single diode, this general purpose rectifier is part of the 1N400x series, offering reliable performance in electronic assemblies requiring standard switching and rectification. It is not automotive certified and has no special approvals but is widely trusted in various electronics manufacturing and repair use cases.

Low forward voltage drop improves efficiency in rectifier circuits. High surge current rating provides reliability under load spikes. Plastic DO-204AL package ensures easy integration in through-hole PCB designs. Suitable for industrial, laboratory, manufacturing, and consumer electronics applications.

Tin-plated leads support good solderability and mechanical strength.
