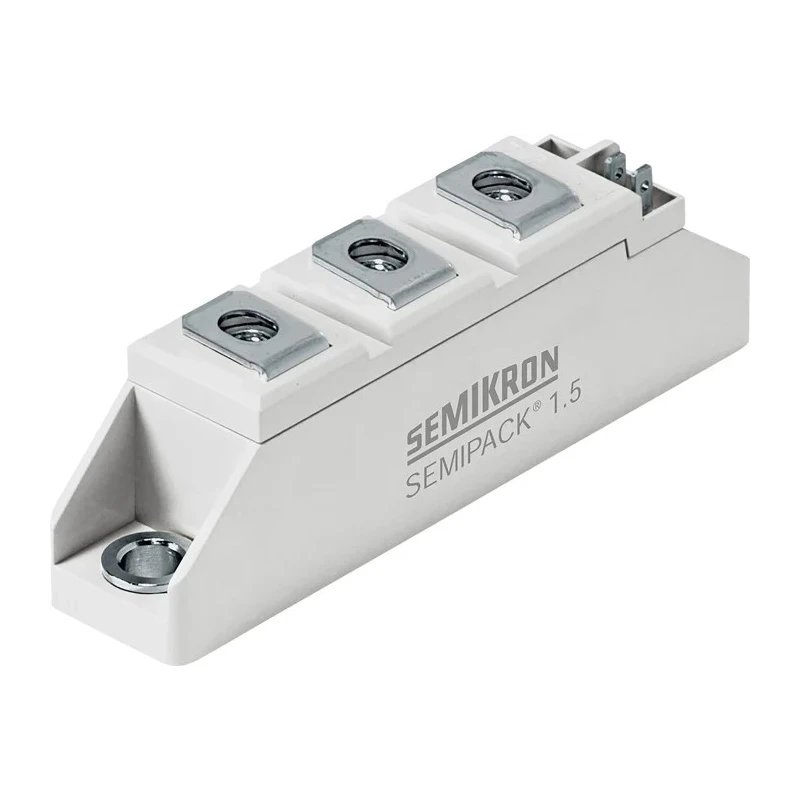

Semikron Danfoss Dual Thyristor Module 1200 V 106 A SCR SEMIPACK1 SKKT 106B12 E
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Semikron Danfoss |
| Model | SKKT 106B12 E |
| Mount Type | Panel |
| Maximum Operating Temperature | 130°C |
| Package Type | SEMIPACK1 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 106A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1200V |
| Surge Current Rating | 2.25kA |
| Maximum Gate Trigger Current Igt | 150mA |
| Maximum Holding Current Ih | 250mA |
| Maximum Gate Trigger Voltage Vgt | 3V |
| Peak On-State Voltage | 1.65V |
| Repetitive Peak Off-State Current | 20mA |
Key Features
- Equipped with SCR type thyristors for reliable switching performance.
- SEMIPACK1 package ensures durable and compact mounting.
- Surge current rating of 2.25 kA supports transient overloads.
- Operating temperature range from -40°C to 130°C for varied environments.
- Designed for panel mount applications with 7 pins for connectivity.
- Maximum gate trigger current is 150 mA allowing precise control.
- Maximum gate trigger voltage is 3 V and holding current is 250 mA.
- Peak on-state voltage of 1.65 V minimizes conduction losses.
Product Description

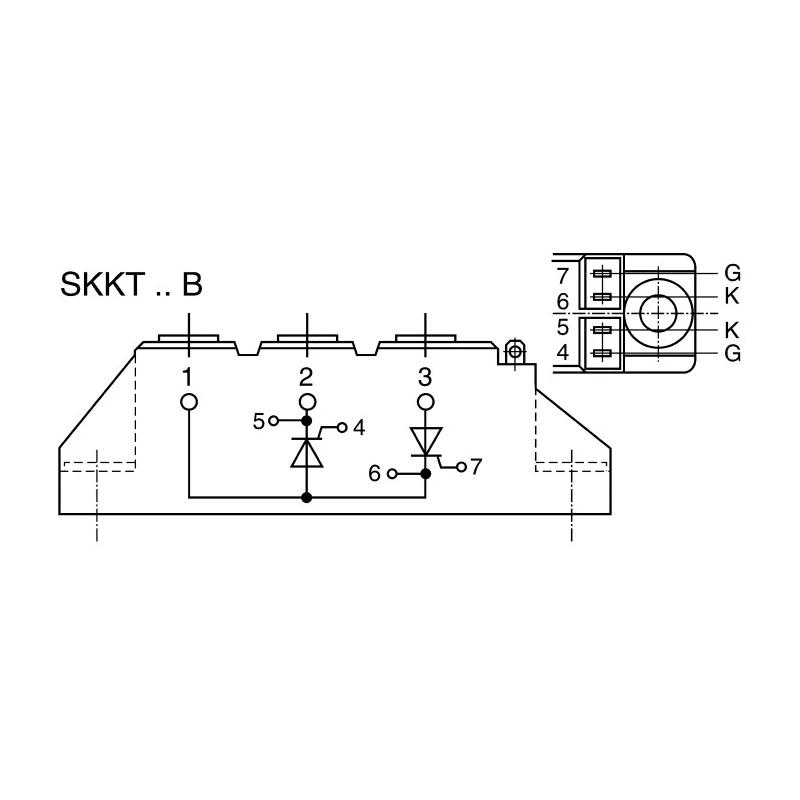

Semikron Danfoss SKKT 106B12 E is a dual Thyristor Module featuring Silicon-Controlled Rectifier (SCR) technology designed for high performance in power electronics applications. Its SEMIPACK1 encapsulated package includes an electrically isolated base plate, making it suitable for mounting on panels in industrial and electronic systems.
This module has a rated average on-state current of 106 A and a repetitive peak reverse voltage (VDRM) of 1200 V, offering robust switching capabilities. The surge current rating of 2.25 kA ensures it can withstand transient overload conditions typical in welding, battery charging, and plating equipment applications.
The module operates reliably in temperatures ranging from -40°C to 130°C and features a maximum gate trigger current of 150 mA with maximum gate trigger voltage at 3 V. Its holding current of 250 mA and peak on-state voltage of 1.65 V contribute to efficient power control with reduced losses.
With a 7-pin configuration, the SKKT 106B12 E module facilitates easy panel mounting and connection in various regulated power supplies, speed and temperature control circuits, and heavy-duty industrial use cases.
SCR thyristors delivering 106 A current with 1200 V blocking voltage. SEMIPACK1 package with electrically isolated base plate for safety. Surge current rating of 2.25 kA to manage transient currents. Operating temperature range suitable for harsh industrial environments.
Designed primarily for power regulation and motor control applications. Highly reliable for use in battery chargers, welders, and plating systems. Manufactured in Germany, ensuring premium build quality.
Semikron Danfoss products represent trusted components in electronic and electrical equipment manufacturing. Browse EnvMart’s comprehensive electronics and semiconductor categories for this and related power module solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 130°C.
It has a surge current rating of 2.25 kA, which allows it to manage transient overload conditions effectively.
The rated average on-state current is 106 A, making it suitable for high-performance applications.
The repetitive peak reverse voltage (VDRM) rating is 1200 V, providing robust switching capabilities.
This model features a 7-pin configuration for easy panel mounting and connection.
The maximum gate trigger current is 150 mA, allowing for precise control of the thyristor operation.
It uses a SEMIPACK1 package, which includes an electrically isolated base plate for safety.
The peak on-state voltage is 1.65 V, which helps minimize conduction losses during operation.
The minimum operating temperature is -40°C, making it suitable for harsh environments.
This model is designed primarily for power regulation and motor control applications, including battery chargers and welders.
The maximum holding current is 250 mA, contributing to efficient power control.
It is manufactured in Germany, ensuring a high standard of build quality.
