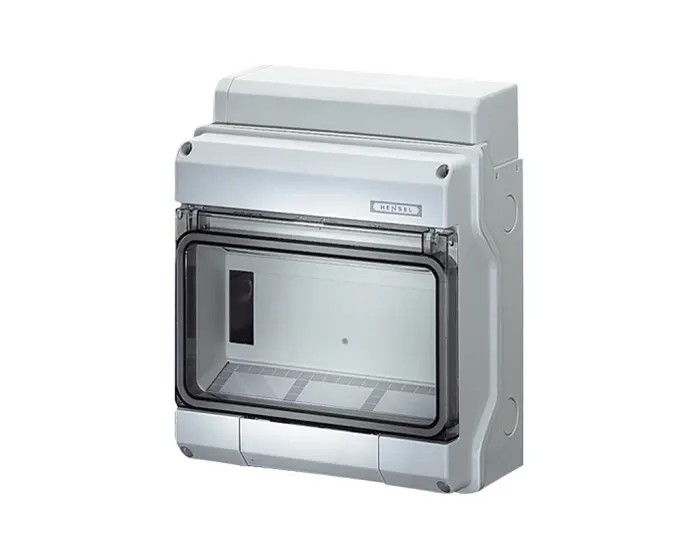

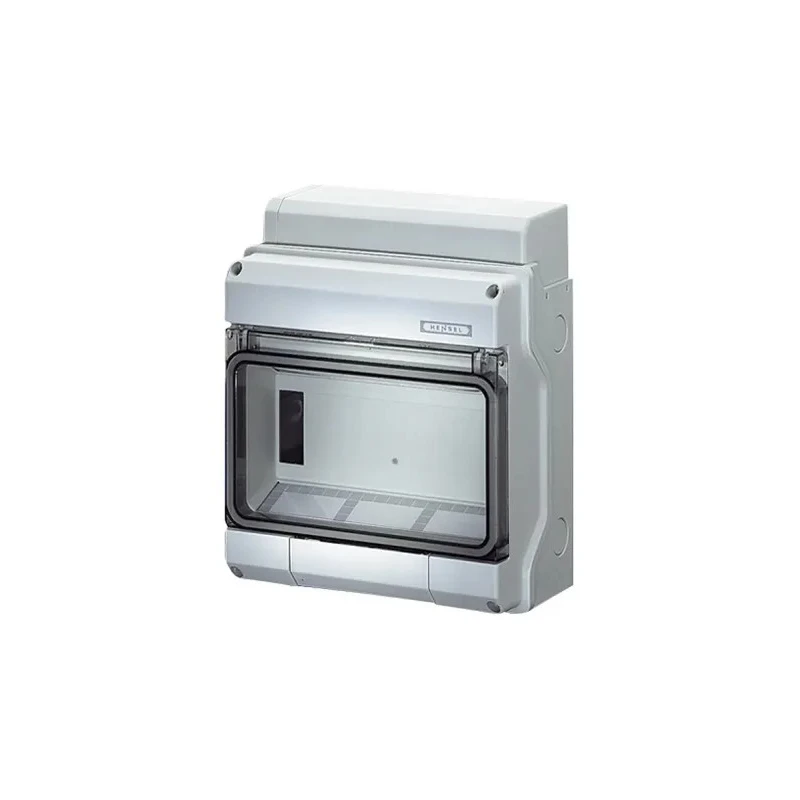

HENSEL Lockable KV Distribution Board Polystyrene Grey 9 Way 400V AC IP65 KV7109

HENSEL KV7109 is a lockable distribution board made from high-quality polystyrene material in grey color (RAL 7035), built for industrial and residential electrical installations. It features a single row with 9 outgoing ways suitable for 400V AC supply systems. The enclosure has an IP65 rating ensuring dust-tight and water-resistant protection, making it suitable for demanding environments.

This distribution board is equipped with knockouts on both top and bottom walls allowing versatile cable entry options, including 4 x M20/25 and 1 x M25/32 knockouts on each side. Internally, it supports fixconnect® terminal technology, facilitating secure connections of copper conductors with cross sections of 2 x 25 mm² and 8 x 4 mm². The top hat 35 mm DIN rail ensures easy mounting of electrical components and accessories.

The hinged, transparent lid can be locked for added safety and features a sealing provision to protect internal components. The locking mechanism and sealing accessories are available separately. Additionally, a cable entry cover and a removable protective cover provide further protection and ease of installation.

Compliant with EN 60670-24 standards, this distribution board is manufactured in Germany, assuring superior build quality and reliability suitable for electrical automation, industrial, and commercial power distribution applications.

The distribution board is lockable for enhanced safety and security. Constructed from grey polystyrene material with RAL 7035 color. Designed for 1-row installation with 9 modules of size 1 x 9 x 18 mm each. Equipped with knockouts on top and bottom walls for cable entries and 35 mm top hat DIN rail mounting.

Complies with EN 60670-24 standard and made in Germany. Includes a transparent, sealable hinged lid with locking device and sealing facility. Supports fixconnect® terminal technology for copper conductors: 2 x 25 mm² and 8 x 4 mm².

External dimensions are 200 mm width, 238 mm height, and 111 mm depth. Provides cable entry cover and removable protective cover sections.

This product is ideal for electrical panel installations in residential, industrial, and commercial sectors requiring secure and durable distribution boards with reliable protection against environmental factors. For more products within this category, explore the Distribution Boards collection at EnvMart.
