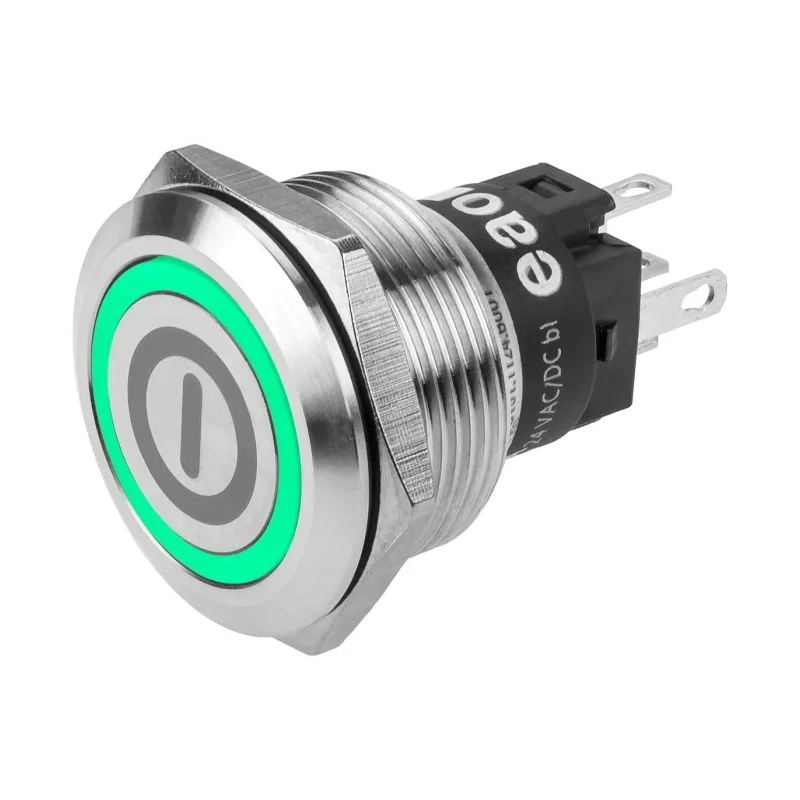

EAO 82 Series Illuminated Push Button Switch Momentary Panel Mount 22.3 mm Cutout SPDT Green LED IP65 IP67 82-6151.1133.B001

EAO 82-6151.1133.B001 is an illuminated push button switch from the 82 Series, designed for momentary operation with a panel mount configuration. With a precise 22.3 mm cutout size and SPDT (Single Pole Double Throw) contact configuration, this switch features a green LED for clear indication and robust ingress protection ratings of IP65 and IP67, making it ideal for environments exposed to dust and water ingress.

The actuator is silver and round styled, promoting ergonomic use and tactile feedback. The switch contact allows for a current rating of 3 A at both 240 V dc and ac voltages, suitable for controlling a wide range of electrical equipment.

Engineered for durability, it is constructed from stainless steel anodized aluminum and brass-colored materials that resist impact and vandalism. The switch offers an exceptional operational lifespan exceeding one million cycles, supported by gold-plated silver contacts enhancing reliable low-voltage switching capabilities.

This product meets international standards including CB, CCC, cUL, and UL, affirming its quality and safety credentials.

Typical applications include exposed public areas such as ticketing and vending machines, industrial machinery and factory equipment, elevator and people mover controls, building management systems like access control and security, as well as medical and food industry equipment due to corrosion and acid-resistant variant availability.

The actuator features a silver color with a round style. Switch operation is momentary with CO switch configuration. Panel cutout size is 22.3 mm with a length of 35.5 mm. LED illumination uses a green LED. IP ratings supported are IP65 and IP67.

The switch is rated for 240 V dc and 240 V ac contact voltages. Operating temperature ranges from -30°C to 70°C for reliable performance in diverse settings. Contact current is rated at 3 A, supporting moderate electrical loads.

Legend indication is On-Off for intuitive user interface. Designed to be impact resistant and vandal-resistant for demanding environments. Long service life exceeds 1 million operations. Explore more Push Button Switches and components at EnvMart, your reliable source for industrial electrical solutions.
