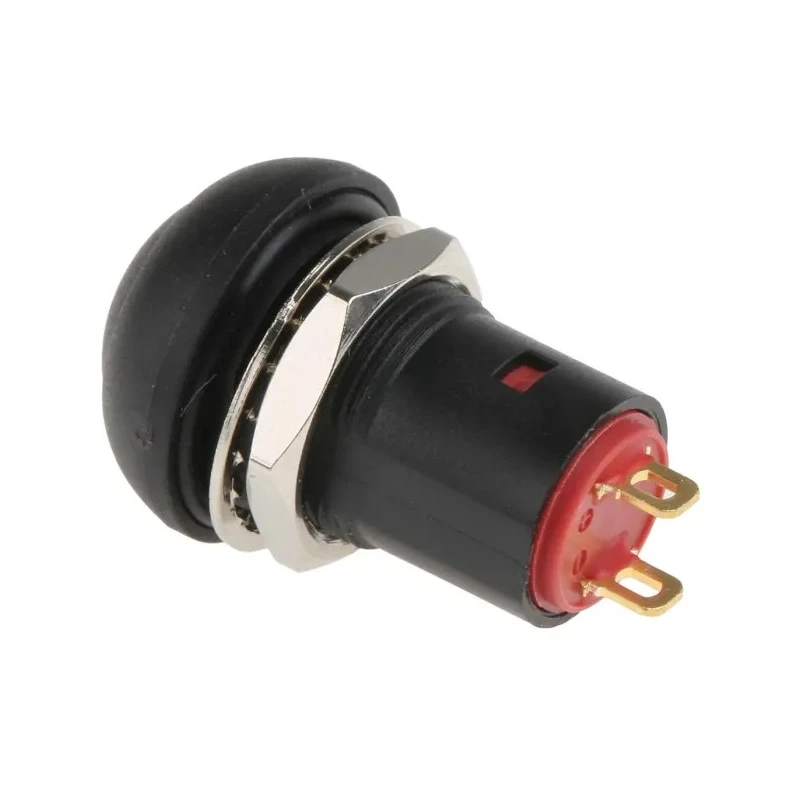

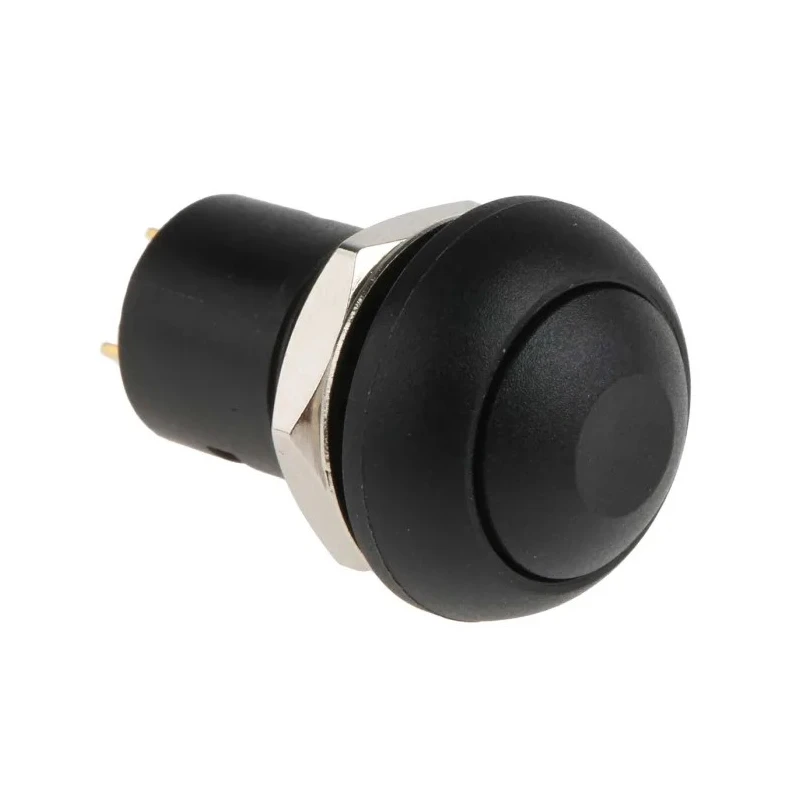

RS PRO Miniature Push Button Switch SPST Latching PCB Mount 13.6 mm Cutout Black LED IP67 24 V dc 30 V ac 820-7549

RS PRO 820-7549 is a miniature push button switch with latching operation, designed specifically for PCB mounting with a 13.6 mm panel cutout. Featuring a black cap actuator made from durable Polyamide 6/6, this switch includes gold over silver plated contacts providing excellent electrical performance and longevity.

Operating at 24 V dc and 30 V ac, this SPST single-pole switch offers a reliable on-off functionality suitable for a wide range of industrial and electronic applications. The IP67 rating ensures protection against dust ingress and water immersion, making it suitable for harsh environments commonly found in industrial automation and telecommunications.

Its solder lug terminals enable easy connection to printed circuit boards, while the actuator style cap provides a comfortable tactile feel. The switch's mechanical life reaches up to 1,000,000 cycles, supported by a contact bounce time of only 10 ms, ensuring dependable performance during extensive use.

The operating force required ranges between 2 and 5 newtons, facilitating precise control without excessive exertion. Maximum operating temperature rating stands at 85°C, allowing usage in elevated temperature scenarios typical in manufacturing and lab equipment.

This product is ideal for applications such as test and measurement devices, telecommunication equipment, networking hardware, and handheld appliances where a compact, robust latching switch is needed to control circuits efficiently.

Black actuator cap constructed from Polyamide 6/6 material. Electrical ratings: 24 V dc and 30 V ac with 100 mA contact current. SPST contact configuration with solder lug terminals for PCB mounting. IP67 rated for dust tight and temporary water immersion protection.

Mechanical durability rated for 1,000,000 operational cycles. Operating force of 2N to 5N for consistent switch actuation. Contact surface plated with gold over silver for enhanced conductivity. Maximum operating temperature of 85 degrees Celsius.

Compact size with 13.6 mm panel cutout fitting standard industrial applications. Applications include industrial automation, telecommunications, and handheld electronics. Explore the full range of Push Button Switches and related components for industrial and commercial use available at EnvMart for reliable, certified, high-quality products.
