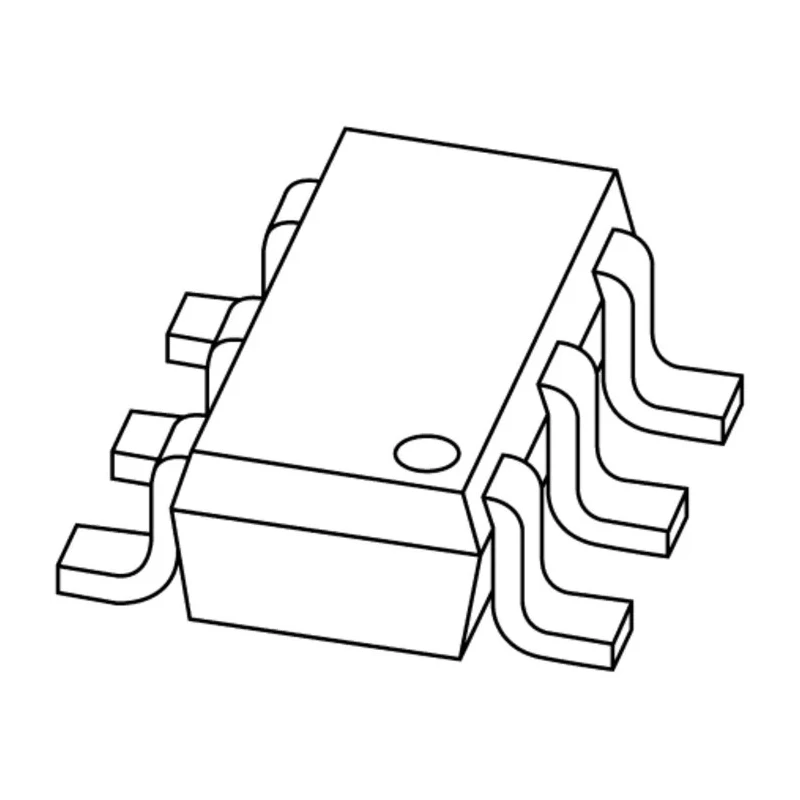

DiodesZetex Surface Mount Schottky Diode 40 V 30 mA 6-Pin SOT-26 SDM03MT40-7-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | SDM03MT40-7-F |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | SDM03MT40 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-26 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | FBI |
| Pin Count | 6 |
| Automotive Standard | AEC |
| Maximum Continuous Forward Current If | 30mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 370mV |
Key Features
- The diode has a maximum continuous forward current of 30 mA.
- Peak reverse voltage rating is 40 V ensuring robust operation.
- The diode uses a SOT-26 package with 6 pins for surface mounting.
- The device features a low maximum forward voltage of 370 mV at rated current.
- It has a peak non-repetitive surge current of 200 mA.
- The peak reverse current is minimal at 1 μA enhancing efficiency.
- Operating temperature ranges from -40°C to 125°C suitable for varied environments.
- The diode measures 3.1 mm in length, 1.7 mm in width, and 1.3 mm in height.
Product Description
DiodesZetex SDM03MT40-7-F is a surface mount Schottky diode designed for applications requiring low forward voltage and high switching speeds. It is implemented in a compact 6-pin SOT-26 package measuring 3.1 mm by 1.7 mm by 1.3 mm, ideal for space-constrained electronic circuits.
This Schottky diode offers a maximum forward continuous current of 30 mA and a maximum reverse repetitive voltage of 40 V, making it suitable for low power rectification and switching tasks in power supplies and other semiconductor circuitry.
The device's low forward voltage drop of 370 mV reduces power loss and heat generation, improving overall circuit efficiency. It supports a peak non-repetitive forward surge current of up to 200 mA and maintains minimal reverse leakage current of 1 μA.
Operating temperature specifications range from -40°C to +125°C, ensuring reliable performance in automotive and industrial environments. Compliance with FBI standards and automotive AEC certification attests to its quality and endurance under demanding conditions.
Schottky Diodes like the SDM03MT40-7-F are widely used in power management, RF applications, and switching regulators due to their fast switching capabilities and low forward losses.
The diode is surface mounted using a 6-pin SOT-26 package. Maximum continuous forward current is 30 mA. Maximum reverse voltage rating of 40 V. Low forward voltage at 370 mV reduces power dissipation. Peak forward surge current is 200 mA.
Peak reverse current leakage is 1 μA. Operational temperature range between -40°C and 125°C. Dimensional size: 3.1 mm length, 1.7 mm width, and 1.3 mm height. FBI and automotive AEC standard compliant.
This diode is suitable for industrial, automotive, and electronic component manufacturing applications where efficient, reliable low power rectification is critical. It is especially suited for devices requiring fast switching speed and low forward voltage losses.
Explore our catalog for more semiconductor and diode components optimized for diverse electronics designs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 30 mA.
The peak reverse voltage rating of this model is 40 V.
The maximum forward voltage drop at the rated current is 370 mV.
This Schottky diode uses a SOT-26 package type and has 6 pins.
The peak non-repetitive forward surge current for this diode is 200 mA.
The dimensions of this model are 3.1 mm in length, 1.7 mm in width, and 1.3 mm in height.
The operating temperature range for this diode is from -40°C to 125°C.
The peak reverse current leakage is minimal at 1 μA.
This diode complies with FBI standards and is AEC certified for automotive applications.
This Schottky diode is suitable for low power rectification and switching tasks in power supplies and other semiconductor circuitry.
The diode is surface mounted using a 6-pin SOT-26 package.
The SDM03MT40-7-F has a single diode configuration.
