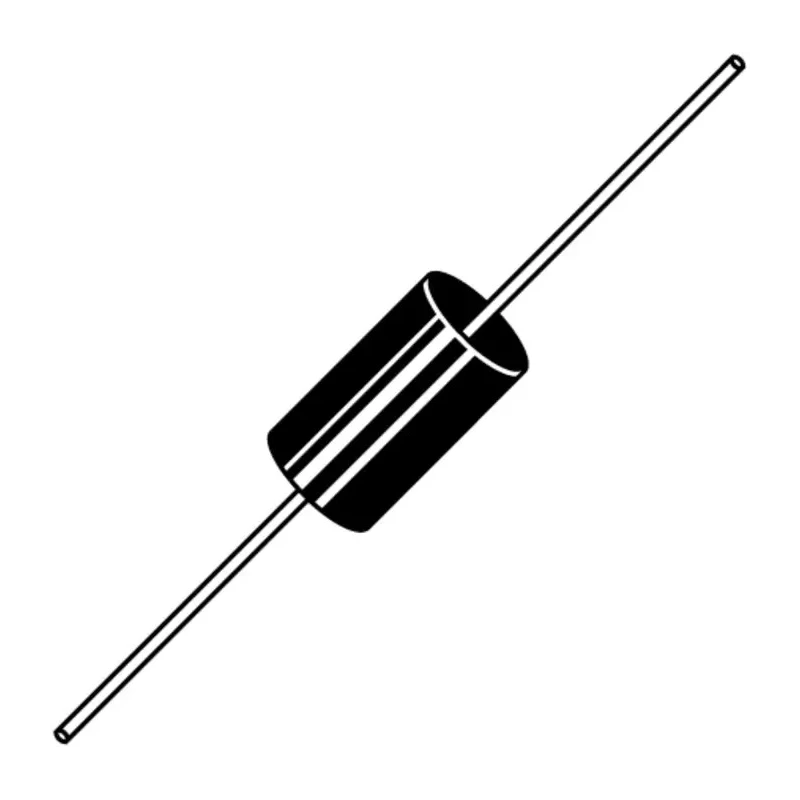

DiodesZetex 40 V 5 A Schottky Diode 2-Pin DO-201AD SB540-T

DiodesZetex SB540-T is a high-performance Schottky diode designed for electronic and power applications requiring low forward voltage and high switching speeds. This 2-pin diode comes in a durable DO-201AD package suitable for through-hole mounting, providing robust mechanical stability and ease of installation.

Capable of handling a maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 40 V, the SB540-T diode is reliable for medium power rectification and switching tasks. Its maximum forward voltage of 550 mV contributes to improved energy efficiency and reduced power dissipation in circuits.

This diode operates effectively over a wide temperature spectrum from -65°C to 150°C, ensuring dependable performance even under harsh industrial or automotive conditions. The device supports peak non-repetitive forward surge currents up to 150 A, allowing it to withstand transient overloads safely.

With a low peak reverse current of 50 mA, it minimizes leakage current, enhancing circuit reliability and reducing unwanted heat generation. The compact form factor, measuring 9.5 mm in length, 5.3 mm in diameter, and 4.8 mm in width, makes it suitable for densely packed electronic assemblies.

Applications include power rectification, switching circuits, power supplies, and other electronic devices requiring fast switching and low voltage drops. Its robust construction and proven design make it well-suited for industrial, automotive, and manufacturing environments.

Through Hole mount type ensures easy installation in circuit boards. Package type DO-201AD provides robust mechanical protection. Maximum forward voltage is 550 mV ensuring efficient conduction. Peak reverse repetitive voltage rated at 40 V for voltage tolerance.

Operates reliably between -65°C to 150°C temperature range. Peak non-repetitive forward surge current is 150 A for transient handling. Low peak reverse current of 50 mA reduces leakage losses. Compact dimensions with length 9.5 mm, diameter 5.3 mm, and width 4.8 mm.

Single diode configuration with 2-pin connectivity supports various electronic applications. Explore a wide range of Schottky Diodes and rectifiers under the Electronics & Electricals category at EnvMart for industrial and professional applications.
