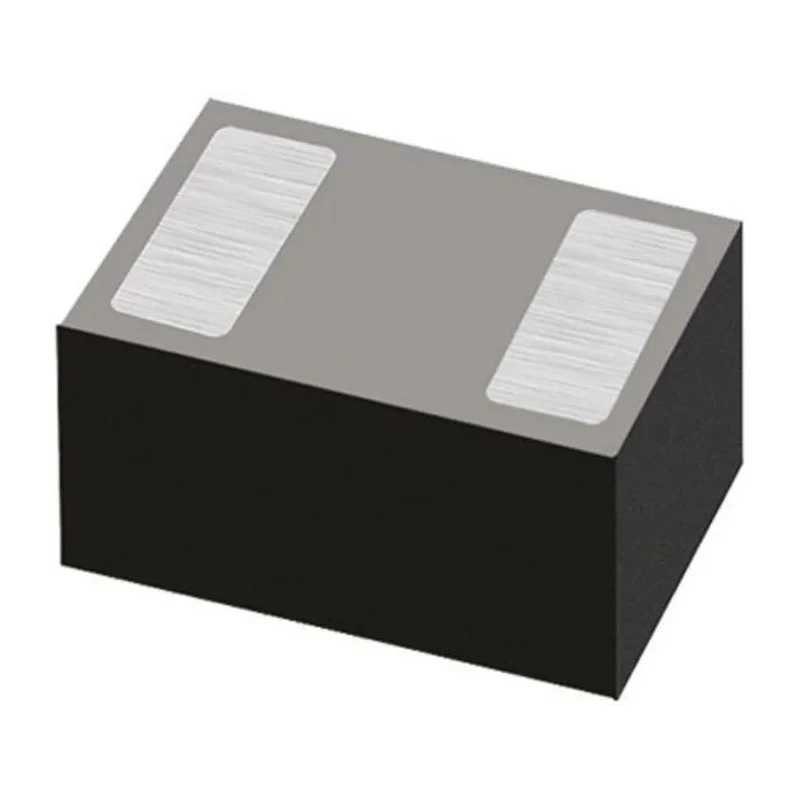

DiodesZetex 30 V 100 mA Schottky Diode, Surface Mount, X3-DFN Package SDM02U30LP3-7B
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 0.32mm |
| Length | 0.65mm |
| Model | SDM02U30LP3-7B |
| Width | 0.35mm |
| Mount Type | Surface |
| Series | SDM02U30LP3 |
| Maximum Operating Temperature | 150°C |
| Package Type | X3-DFN |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 100mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 4μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500mA |
| Maximum Forward Voltage Vf | 370mV |
Key Features
- The diode supports a peak non-repetitive forward surge current of 500 mA.
- Operates reliably between -65°C and 150°C ensuring thermal stability.
- Encased in a compact X3-DFN surface mount package with dimensions 0.65 mm length, 0.35 mm width, and 0.32 mm height.
- Exhibits a low forward voltage of 370 mV which minimizes power loss in circuits.
- Designed with 2-pin configuration suitable for compact PCB layouts.
- Offers a low peak reverse current of 4 microamps for improved efficiency.
- Manufactured to FBI standards for quality and reliability assurance.
- Ideal for use in electronic components requiring efficient diodes such as power supplies and rectifier circuits.
Product Description
DiodesZetex SDM02U30LP3-7B is a high-performance Schottky barrier diode designed for surface mount technology applications. This device supports a maximum continuous forward current of 100 mA and a peak reverse voltage of 30 V, making it suitable for low voltage rectification needs in electronic circuits.
The X3-DFN package offers a compact 2-pin design with precise physical dimensions (0.65 mm length, 0.35 mm width, and 0.32 mm height), allowing efficient usage of PCB space in modern electronic devices. Its low forward voltage drop of 370 mV helps in reducing power losses and enhancing overall energy efficiency.
Operating reliably from -65°C up to 150°C, the diode maintains thermal stability, making it well suited for diverse industrial and commercial electronic applications. The robust peak non-repetitive forward surge current rating of 500 mA provides dependable transient current handling capability.
Produced adhering to FBI standards, the product ensures high quality and reliability, ideal for use in power and connector modules, semiconductor discrete devices, and other electronic components.
The diode’s 2-pin surface mount configuration supports streamlined circuit assembly. Low peak reverse current of 4 μA enhances device efficiency by reducing leakage. The diode is used extensively in switching power supplies, voltage regulation circuits, and protection circuits.
Its compact size and low losses make it valuable for automotive, industrial, and consumer electronics manufacturing. Package and mounting specifications facilitate automated PCB assembly processes.
This Schottky Diode is an essential component for designs requiring efficient rectification and thermal robustness. Explore our full range of electronic components and semiconductors on EnvMart to meet your design requirements.
