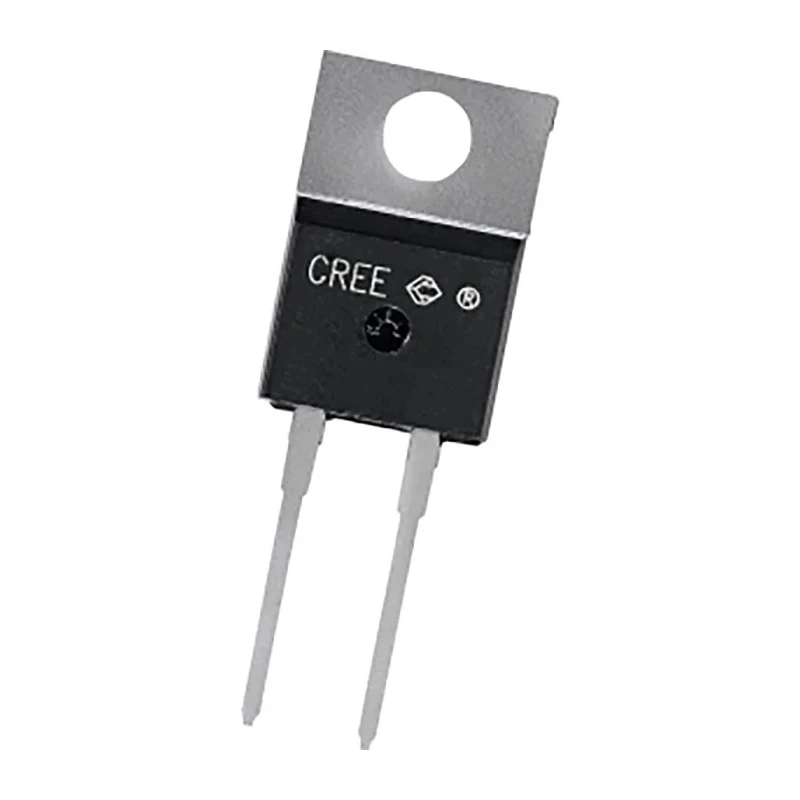

Wolfspeed 650 V 6 A Rectifier & Schottky Diode Schottky 2-Pin TO-220 C6D06065A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wolfspeed |
| Height | 29.13mm |
| Length | 10.41mm |
| Model | C6D06065A |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | Z-Rec |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 6A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 120μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 51A |
| Maximum Forward Voltage Vf | 1.6V |
Key Features
- Maximum continuous forward current of 6 amperes ensures reliable operation under load.
- Peak reverse repetitive voltage rated at 650 volts for robust voltage handling.
- Low forward voltage of 1.6 volts reduces power loss and heat generation.
- Wide operating temperature range from -55°C to 175°C for diverse applications.
- Package type TO-220 with 2-pin configuration suitable for through-hole mounting.
- Peak non-repetitive forward surge current of 51 amperes supports transient conditions.
- Positive temperature coefficient reduces thermal runaway risk allowing parallel device use.
- Single diode configuration optimized for rectifier and Schottky diode functions.
Product Description
Wolfspeed C6D06065A Rectifier & Schottky Diode is a high-performance semiconductor device designed for power electronics applications requiring low forward voltage drop and fast switching. This device comes in a TO-220 package with a through-hole mount style and features a 2-pin configuration.
It supports a maximum continuous forward current of 6 amperes and can withstand a peak reverse repetitive voltage of 650 volts, making it suitable for efficient rectification and protection in circuits. The maximum forward voltage of 1.6 volts helps minimize conduction losses and reduces heat sink requirements.
The diode operates reliably across a wide temperature range from -55°C to 175°C, ensuring suitability for demanding industrial and automotive environments. Featuring a peak reverse current of 120 microamperes and a peak surge current capacity of 51 amperes, it accommodates transient current conditions effectively.
Wolfspeed's 6th generation technology incorporated in this device improves system-level power density and ensures a zero reverse recovery current, enhancing switching performance and reducing electromagnetic interference. The positive temperature coefficient of forward current prevents thermal runaway, allowing parallel device configurations safely in power circuits.
Applications of the Wolfspeed C6D06065A Schottky diode include power supplies, battery charger circuits, DC-DC converters, and general power rectification in industrial, automotive, and consumer electronics sectors.
Maximum continuous forward current: 6A. Peak reverse repetitive voltage: 650V. Forward voltage drop: 1.6V maximum. Operating temperature range: -55°C to 175°C. Package: TO-220, 2 pins, through hole. Peak surge forward current: 51A.
Positive temperature coefficient on forward current. Zero reverse recovery current for high-frequency operation. Explore a wide range of power semiconductors and Schottky diode components in EnvMart for efficient and reliable circuit design solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Wolfspeed C6D06065A Schottky diode is 6 amperes.
This model has a peak reverse repetitive voltage rating of 650 volts.
The maximum forward voltage drop for the C6D06065A is 1.6 volts.
It operates reliably across a temperature range from -55°C to 175°C.
The diode comes in a TO-220 package type with a 2-pin configuration suitable for through-hole mounting.
The peak non-repetitive forward surge current for this model is 51 amperes.
The peak reverse current for the C6D06065A is rated at 120 microamperes.
The dimensions of the C6D06065A are 29.13 mm in height, 10.41 mm in length, and 4.7 mm in width.
This model features a single diode configuration optimized for rectifier and Schottky diode functions.
It is suitable for applications such as power supplies, battery charger circuits, DC-DC converters, and general power rectification.
The diode incorporates Wolfspeed's 6th generation technology, which enhances system-level power density and ensures zero reverse recovery current.
The positive temperature coefficient of forward current helps prevent thermal runaway, allowing safe parallel configurations in power circuits.
