STMicroelectronics Schottky Diode 70 V 70 mA Surface Mount SOD-523 BAS70KFILM

Free Delivery in India | Lowest Global Shipping Charges

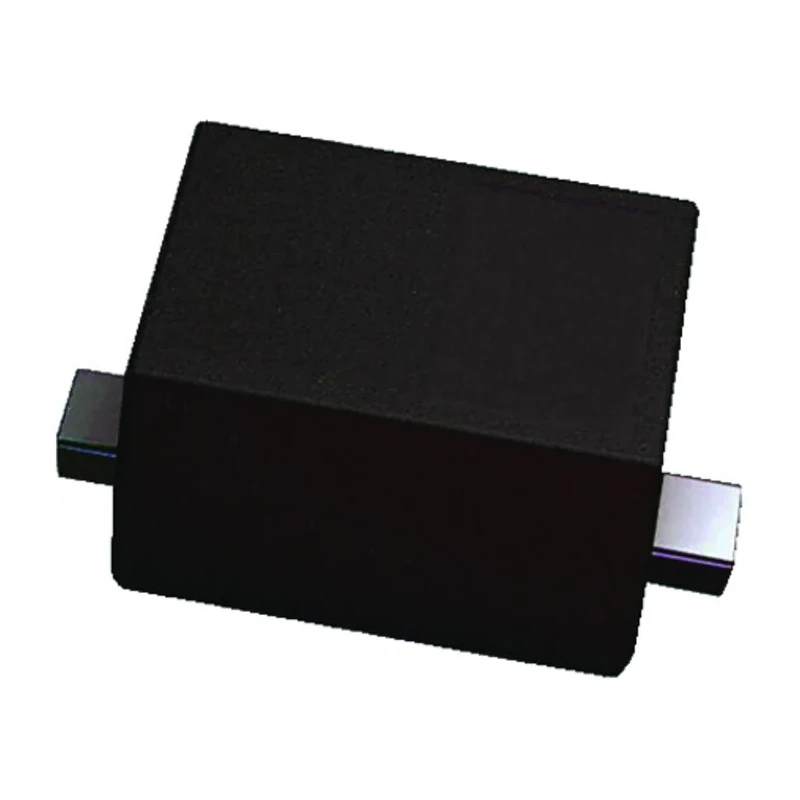

STMicroelectronics Schottky Diode 70 V 70 mA Surface Mount SOD-523 BAS70KFILM

Name: STMicroelectronics Schottky Diode 70 V 70 mA Surface Mount SOD-523 BAS70KFILM
Brand: STMicroelectronics
SKU: 264253
Price: 0.05 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand STMicroelectronics Condition New

Specifications

Country of Origin	China
Brand	STMicroelectronics
Height	0.7mm
Length	1.3mm
Model	BAS70KFILM
Width	0.9mm
Mount Type	Surface
Series	BAS70
Maximum Operating Temperature	150°C
Package Type	SOD-523
Pin Count	2
Maximum Continuous Forward Current If	70mA
Peak Reverse Repetitive Voltage Vrrm	70V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	1A
Maximum Forward Voltage Vf	1V

Key Features

Maximum continuous forward current of 70 mA ensures steady current handling.
Peak reverse repetitive voltage rated at 70 V for voltage spike protection.
Compact SOD-523 package suitable for surface mount technology applications.
Low forward voltage drop of 1 V lowers power losses in circuits.
Peak non-repetitive forward surge current capacity of 1 A for transient protection.
Operates efficiently up to maximum temperature of 150°C for reliability in demanding environments.
Single diode configuration with 2 pins provides simplicity in circuit design.
Small dimensions (1.3 mm length, 0.9 mm width, 0.7 mm height) enable space-saving PCB layout.

Product Description

STMicroelectronics BAS70KFILM is a Schottky diode designed for surface mounting with a compact SOD-523 package. It supports a maximum continuous forward current of 70 mA and a peak reverse repetitive voltage of 70 V, ideal for precise rectification tasks.

This diode features a low forward voltage drop of 1 V, which promotes energy efficiency by minimizing conduction losses. It is capable of handling a peak non-repetitive forward surge current of 1 A, offering protection against transient surges commonly encountered in power electronics.

The device operates reliably up to 150°C, making it suitable for industrial, consumer electronics, and automotive electronic applications where thermal stability is critical. Its single diode configuration and 2-pin design simplify circuit integration.

With minimal physical footprint - measuring approximately 1.3 mm in length, 0.9 mm in width, and 0.7 mm in height - this component supports high-density PCB designs.

As a Schottky barrier diode, it offers high switching speed and low forward voltage characteristics, enhancing overall circuit performance. This product is manufactured in China and meets industry standards for semiconductor devices.

Maximum continuous forward current of 70 mA ensures stable current flow. Peak reverse repetitive voltage rated at 70 V to withstand voltage spikes. Compact SOD-523 surface mount package allows for space-saving designs. 1 V maximum forward voltage drop minimizes power losses.

Peak surge current of 1 A protects against transient overloads. Operational temperature range up to 150°C for thermal resilience. Two-pin configuration enables easy circuit integration. Small package dimensions support high-density electronic assemblies.

This STMicroelectronics diode is suitable for use in industrial, consumer electronics, automotive, and power supply construction applications. Its high-speed switching and efficient conduction make it ideal for rectification, clamping, and protection circuits.

Explore additional Schottky diodes and related semiconductor components available on EnvMart for your advanced electronics projects and industrial designs.

Explore more products in our Schottky Diodes & Rectifiers category.
