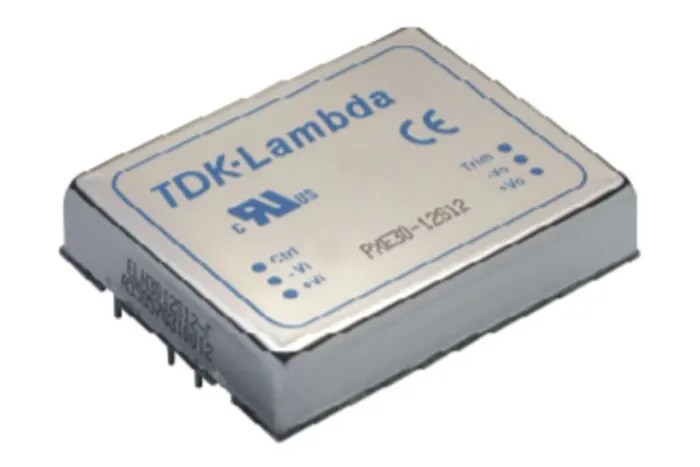

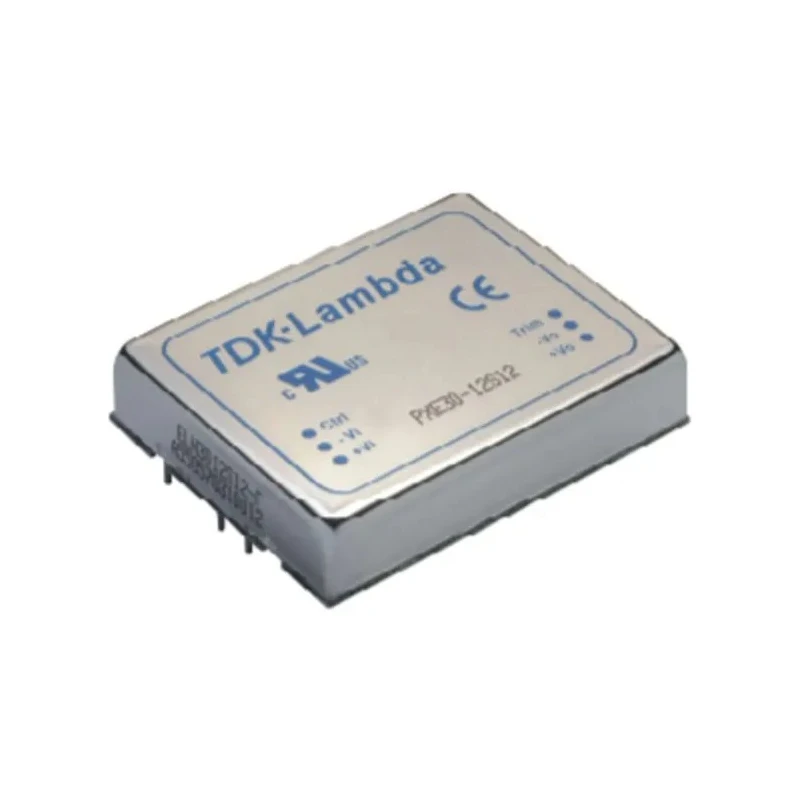

TDK-Lambda DC/DC Converter PXE20-24WS15 15V DC 1.33A 20W PCB Mount 36V/9V Input 85°C Max Temp
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda PXE DC/DC Converter, 15V dc/ 1 |
| Brand | TDK-Lambda |
| Efficiency | 0.81% |
| Length | 50.8mm |
| Model | PXE20-24WS15 |
| Depth | 10.2mm |
| Gross Weight | 48g |
| Width | 40.6mm |
| Mount Type | PCB |
| Series | PXE |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1976000h |
| Number of outputs | 1 |
| Ripple and Noise | 75mV |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V dc |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 1.33A |
| Isolation Voltage | 1.6kV |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- It has a DIP package type with 7 pins for easy integration.
- The unit operates within a temperature range from -40°C to 85°C with a maximum working temperature of 85°C.
- Offers efficient performance with 0.81% efficiency and low ripple noise of 75mV.
- Isolation voltage is rated at 1.6kV ensuring reliable electrical isolation.
- Compact dimensions of 50.8mm length, 40.6mm width and 10.2mm depth suit space-constrained applications.
- High MTBF of 1,976,000 hours guarantees long operational life.
- Constructed with six-sided metal shielding for robust EMI protection.
- Designed for industrial and electronic applications requiring stable DC power conversion on PCB installations.
Product Description
TDK-Lambda PXE20-24WS15 is a high-quality DC/DC converter designed for electronic and industrial power supply applications. It delivers a stable 15V DC output current of 1.33A at a maximum output power of 20W. The converter supports input voltages ranging from 9V to 36V DC, accommodating a wide variety of supply sources.
This unit is housed in a durable metal case with six-sided shielding to provide excellent electromagnetic interference (EMI) protection, enabling compliance with demanding industrial environments. Its 7-pin DIP package allows for convenient PCB mounting and integration into various electronic assemblies.
Operating temperature ranges from -40°C to 85°C, making it suitable for harsh industrial conditions. With an isolation voltage of 1.6kV and a low ripple noise output of 75mV, it ensures reliable and noise-free power conversion essential for sensitive electronic circuits.
The converter’s compact footprint of 50.8mm (length) x 40.6mm (width) x 10.2mm (depth) fits tightly into space-limited applications while ensuring robust power delivery. An MTBF of approximately 1.976 million hours reflects its excellent reliability.
Typical applications include industrial automation, telecommunications, and embedded electronic systems requiring regulated DC voltage from varying input voltages. Its high efficiency of 0.81% aids in reducing energy losses and heat generation.
This DC/DC converter offers a 4:1 input voltage ratio for flexible input power sources. It features a metal-shielded enclosure for enhanced EMI immunity. Provides consistent 15V output with ±10% adjustment capability. Compact DIP form factor with 7 pins for streamlined PCB integration.
Certified for use in demanding temperature ranges from -40°C to +85°C. Isolation up to 1.6kV ensures safe electrical separation. Low ripple and noise output protects sensitive circuitry. Long operational life with extremely high MTBF.
Choose TDK-Lambda PXE20-24WS15 DC/DC converter for reliable, efficient, and precise power conversion in a compact PCB-mount package. Explore related DC/DC Converters and power supplies on EnvMart for diverse electronic and industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 15V DC with a maximum output current of 1.33A.
The converter supports an input voltage range from 9V to 36V DC, allowing flexibility in power source selection.
It has compact dimensions of 50.8mm in length, 40.6mm in width, and 10.2mm in depth, suitable for space-constrained applications.
The maximum operating temperature for this model is 85°C, making it suitable for harsh environments.
This DC/DC converter has an efficiency rating of 0.81%, aiding in reducing energy losses during operation.
The ripple and noise output of this model is rated at 75mV, ensuring stable power delivery for sensitive circuits.
This unit is designed for PCB mounting, featuring a DIP package type with 7 pins for easy integration.
The isolation voltage is rated at 1.6kV, ensuring reliable electrical isolation in various applications.
The mean time between failures (MTBF) for this model is approximately 1,976,000 hours, indicating high reliability.
This converter is suitable for industrial automation, telecommunications, and embedded electronic systems requiring regulated DC voltage.
The input ratio for this model is 4:1, allowing it to accommodate a variety of input voltage sources effectively.
It features a durable metal case with six-sided shielding for enhanced EMI protection, suitable for demanding environments.
