STMicroelectronics 128 kB EEPROM 20 ns 8-Pin TSSOP Serial-SPI M95128-RDW6TP

STMicroelectronics M95128-RDW6TP is a 128 kB Electrically Erasable Programmable Read-Only Memory (EEPROM) designed for reliable non-volatile data storage in industrial, automotive, and commercial electronics applications.

This EEPROM utilizes a Serial-SPI interface enabling efficient communication with microcontrollers and processors in embedded systems. Its fast 20 ns maximum random access time and maximum clock frequency of 20 MHz ensure swift data retrieval and programming.

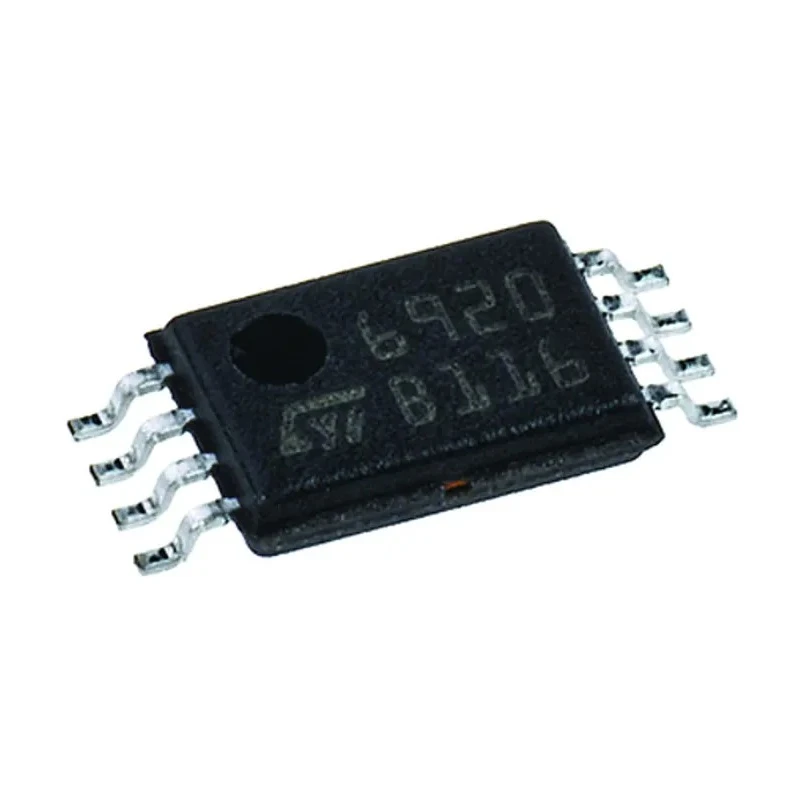

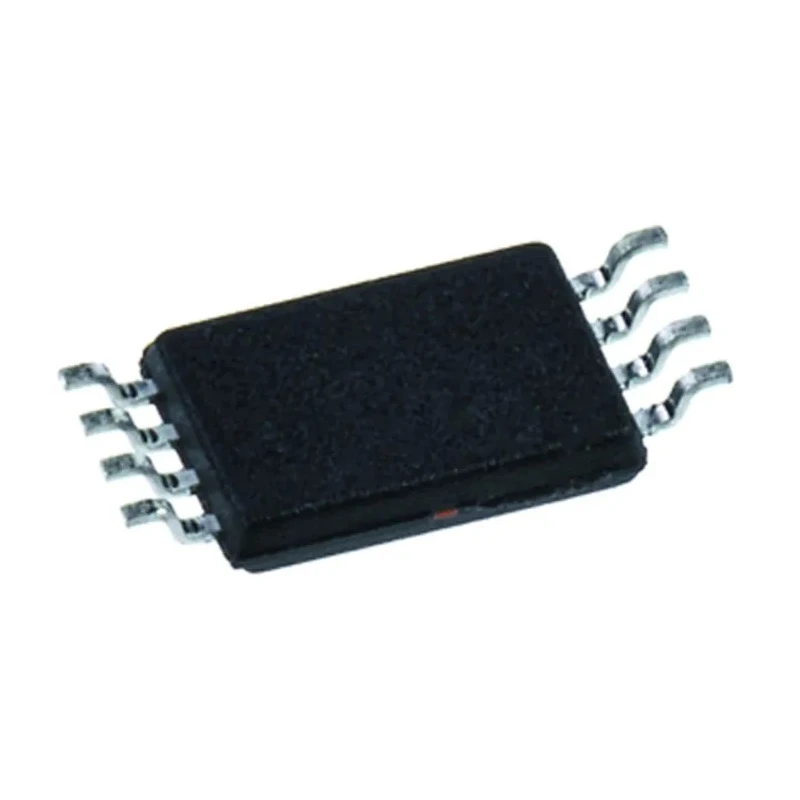

The device comes in a compact 8-pin TSSOP (Thin Shrink Small Outline Package) surface mount form factor with a length of 3.1 mm, width of 1.69 mm, and height of 1.2 mm, optimized for space-constrained PCBs.

It operates within a broad voltage range of 1.8 V to 5.5 V and temperature range from -40°C to 85°C, making it suitable for automotive and harsh environmental conditions. The M95128 series meets the AEC-Q100 automotive standard, affirming its quality and robustness for vehicular applications.

The chip supports multiple memory organizations including 1 x 64, 1 x 128, and 1 x 256 word configurations with 8 bits per word, offering flexible memory management options. It consumes low power with a supply current of 5 mA.

With a data retention capability of 200 years, it guarantees long-term storage reliability. Its 8-pin configuration simplifies integration into embedded systems designed for industrial automation, instrumentation, and control.

Provides 128 kB memory size suitable for industrial and automotive applications. Supports Serial Peripheral Interface (SPI) communication protocol. Operates at a maximum clock frequency of 20 MHz for fast data access. Wide operating voltage range from 1.8 V to 5.5 V ensuring versatile compatibility.

Functions reliably within -40°C to 85°C temperature range for harsh environments. Compact 8-pin TSSOP surface mount package with dimensions 3.1 mm length, 1.69 mm width, and 1.2 mm height. Features 200-year data retention for long-term storage integrity.

Automotive-grade standard AEC-Q100 certified for high quality and reliability. Supply current is minimal at 5 mA supporting energy-efficient designs. Supports storage organization of 1 x 64, 1 x 128, or 1 x 256 words with 8 bits per word.

This EEPROM module is widely used in embedded electronics across automotive systems, industrial automation controllers, data loggers, and communication devices where durable, low-power non-volatile storage is critical.
