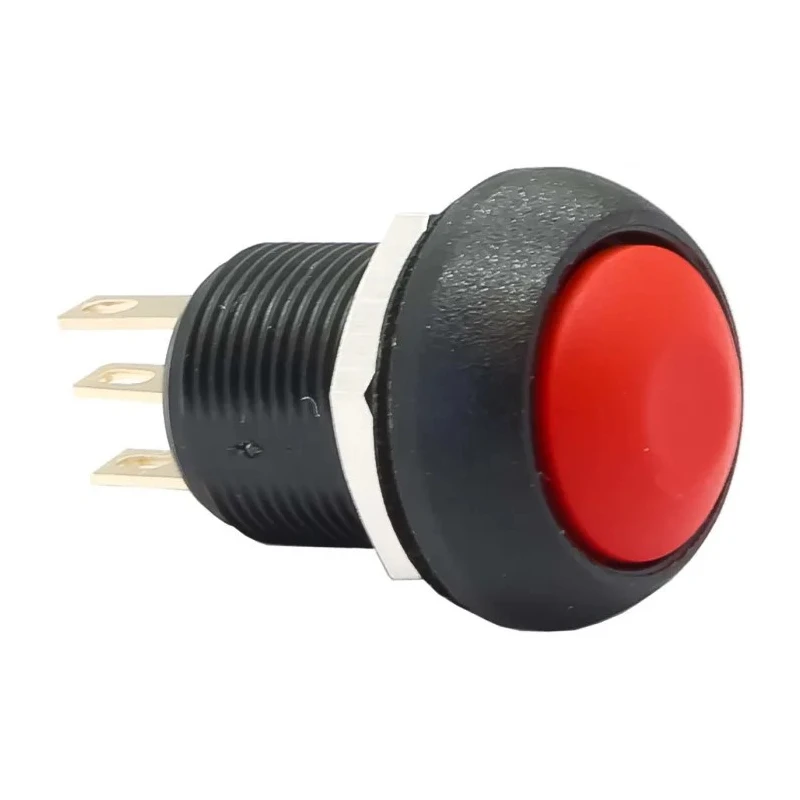

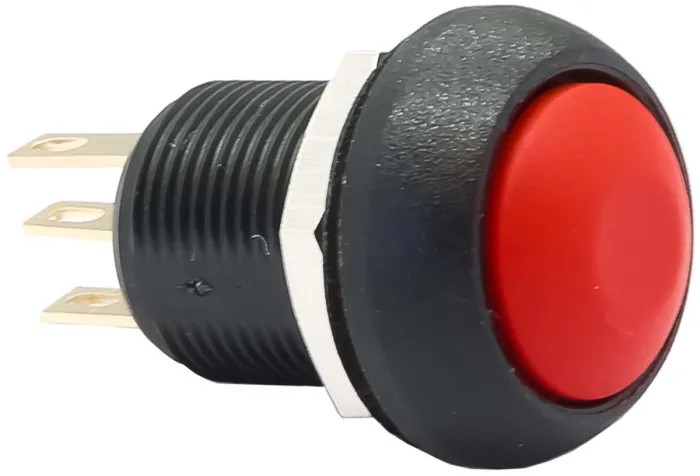

APEM IM Series Momentary Panel Mount Push Button Switch, Red Actuator, SPDT, IP67, 13.6 mm Cutout IMR7Z462UL

The APEM IM Series momentary panel push button switch IMR7Z462UL is engineered to provide reliable operation and tactile feedback with an audible click, making it ideal for applications requiring precise momentary switching functionality.

This panel mount switch has a robust red round actuator designed for industrial and harsh environments. With a 13.6 mm panel cutout, it is compatible with various panel designs and ensures a secure fit.

Sealed to IP67 standards, the IMR7Z462UL offers excellent protection against dust ingress and water immersion, suitable for demanding settings such as industrial automation, electrical control panels, and outdoor installations.

The switch features gold plated silver SPDT contacts rated at 3 A at 28 V dc, providing low resistance and consistent electrical performance. Terminal connections utilize 2.8 mm faston or solder types, allowing flexible wiring options.

The product supports a broad operating temperature range between -40°C and 85°C, ensuring functionality in extreme climates. Additionally, its shock resistance rating of 50g for 11 ms conforms to IEC 68-2-27 standards, enhancing durability against mechanical shocks and vibrations.

This switch series complies with RoHS standards, supporting environmentally conscious manufacturing and product usage. The momentary switch operation allows for precise momentary contact, useful for push-to-make functions.

Audible tactile feedback with snap action ensures user awareness of switch actuation. Compact dimensions with a 27 mm body length enable integration into constrained panel spaces. IP67 protection guarantees highly reliable performance under dust and moisture exposure.

Gold plated silver contacts minimize corrosion and improve longevity. Quick connect terminals simplify installation and maintenance processes. Broad temperature tolerance suits diverse industrial, laboratory, and automation applications.

Truly robust construction makes it suitable for harsh environment usage.

Environmentally and industrially suitable, the APEM IMR7Z462UL Push Button Switch serves diverse applications in electrical panels, automation controls, and rugged field equipment. Enthusiasts and engineers can find more options in the APEM IM series for tailored solutions.
