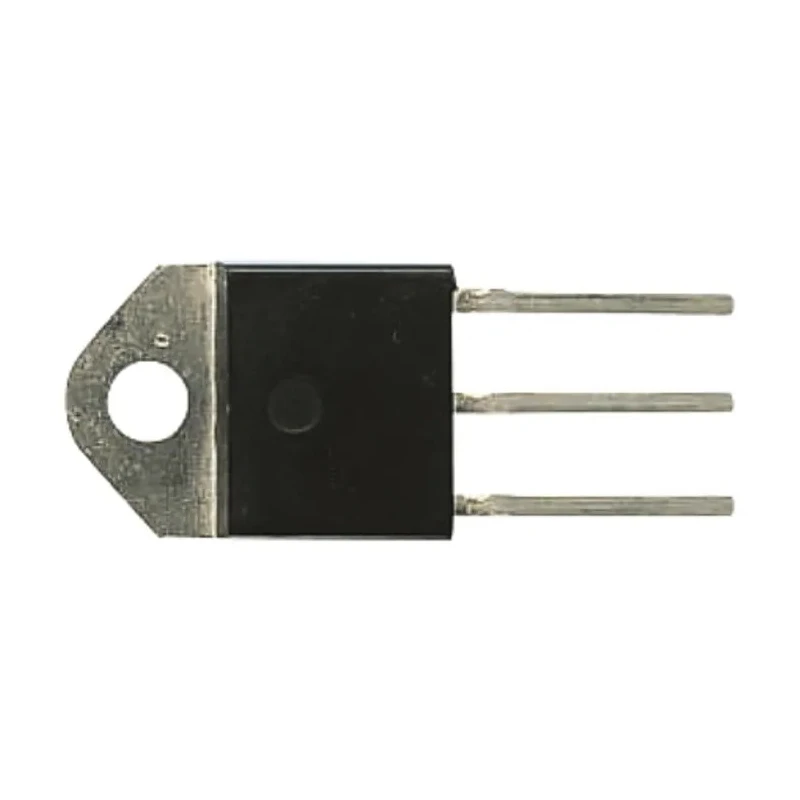

STMicroelectronics Thyristor 1200 V 420 A, 19 A 50 mA 2.1 V TOP3 3-Pin BTW68-1200RG

STMicroelectronics BTW68-1200RG is a high-performance thyristor designed to handle demanding power switching applications with a repetitive peak reverse voltage of 1200 volts and a surge current rating of 420 amperes. This device features a rated average on-state current of 19 amperes, making it suitable for industrial electronic circuits requiring robust and reliable control.

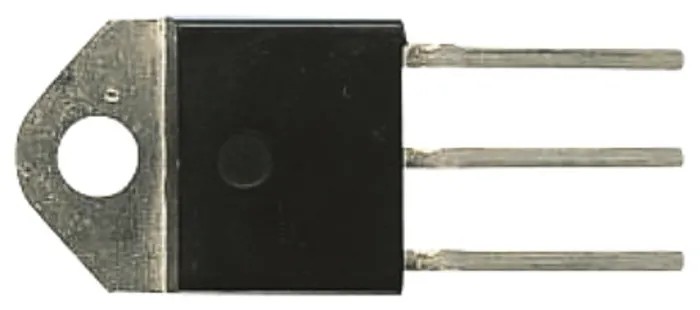

The thyristor comes in a TOP3 package with 3 pins, ideal for through-hole mounting, offering stable mechanical support and ease of installation. The device is triggered with a maximum gate trigger current of 50 milliamperes and a gate trigger voltage of 1.5 volts, allowing for sensitive and accurate triggering in control circuits.

With a peak on-state voltage of 2.1 volts and maximum holding current of 75 milliamperes, the BTW68-1200RG ensures efficient conduction and maintains stable operation under various load conditions. Its maximum operating temperature of 125°C allows it to perform reliably in harsh thermal environments without degradation.

This thyristor exhibits low leakage with a repetitive peak off-state current of just 20 microamperes, offering energy-efficient switching. The 3-pin configuration and TOP3 packaging optimize space and reliability for use in industrial power control, manufacturing equipment, HVAC systems, and other commercial electronic applications.

Rated average on-state current of 19 amperes for reliable power control. Maximum gate trigger current is 50 milliamperes ensuring sensitive and precise triggering. Maximum gate trigger voltage of 1.5 volts for efficient gate operation.

Peak on-state voltage of 2.1 volts for optimal conduction performance. Maximum holding current rating is 75 milliamperes to maintain conduction stability. Maximum operating temperature of 125°C for durable operation in thermal environments.

Package type TOP3 suitable for through hole mounting applications. Repetitive peak off-state current of 20 microamperes indicating low leakage. Pin count of 3 providing a compact design for various industrial uses.

Engineered for power switching and control, this thyristor is widely used in industrial electronics, manufacturing controls, and electrical equipment. STMicroelectronics' strong reputation ensures high-quality standards and extensive availability of technical support and documentation.
