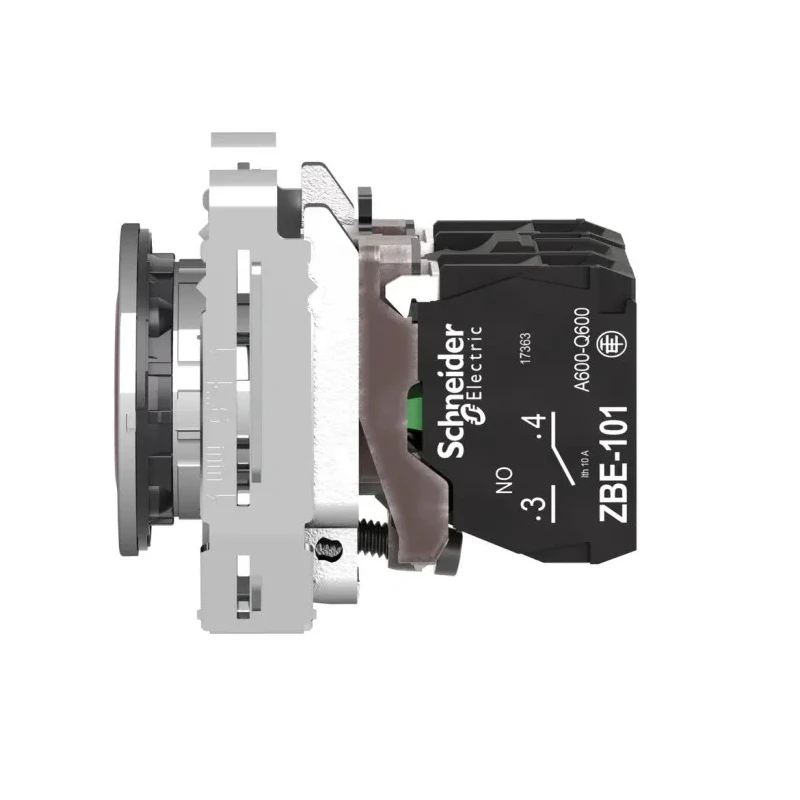

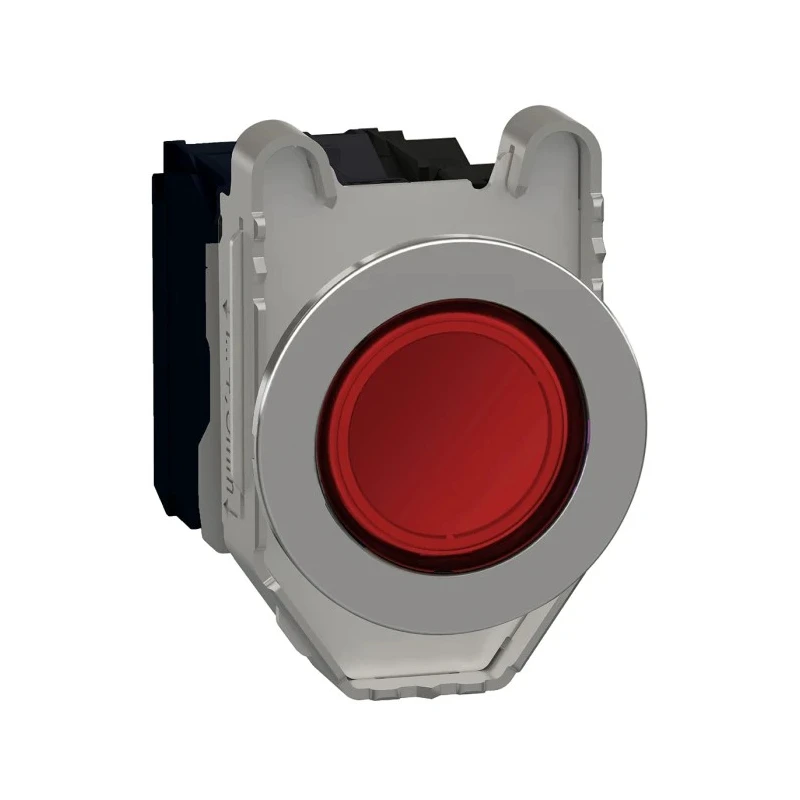

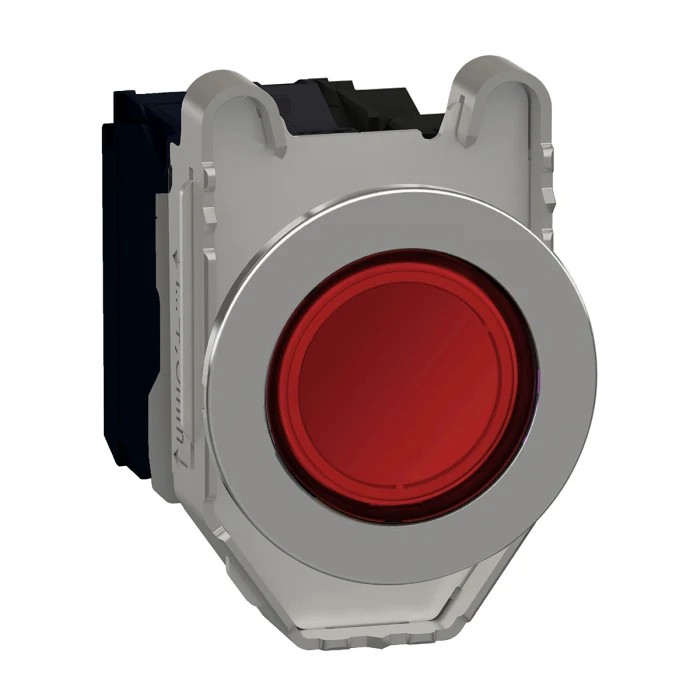

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch Spring Return Panel Mount 30 mm Cutout SPDT XB4FW34B5

Schneider Electric XB4FW34B5 Harmony XB4 Series Illuminated Push Button Switch is a premium pushbutton designed for industrial panel mounting applications. It operates with a spring return mechanism and features a red illuminated actuator using a universal LED source, providing clear visual status indication. The switch incorporates a robust SPDT (1 NO/1 NC) contact configuration suitable for various control circuits.

With a 30 mm mounting diameter panel cutout, this push button can be quickly installed using standard crosshead tools. The chromium-plated bezel and zamak fixing collar enhance durability ensuring a long operational life even in harsh conditions.

The switch is rated to handle contact voltages up to 600 V AC/DC and contact currents of 6A. Its wide operating temperature range (-40°C to 70°C) along with high vibration resistance and shake-proof terminal screws make it ideal for demanding industrial environments including food and beverage processing, automotive assembly lines, and outdoor applications such as mining and water treatment plants.

Protection ratings IP66, IP67, IP69, and IP69K confirm resistance against solid particles, dust, water ingress, and high-impact situations, meeting standards for type 12, 13, 4, and 4X enclosures. Additionally, the product holds multiple international certifications including EN/IEC, CE, UL, CSA, and JIS, suitable for global industrial compliance.

Accessories such as metal circular blanking plugs, metal rings, spacers, protective washers, and flush mounting kits are available separately to customize installation needs. The ergonomic flush mount design caters for aesthetics and functional operation across diverse industrial segments.

The actuator color is red with a round style and spring return operation. Illuminated with a universal red LED for clear indication. SPDT contact configuration with screw clamp terminals for secure wiring. Panel mount type with a 30 mm cutout diameter.

Achieves high ingress protection ratings of IP66, IP67, IP69, and IP69K. Operating temperature ranges from -40°C to 70°C. Robust chromium-plated bezel and zamak collar construction. Dimensions: 47 mm height, 55 mm length, 36.6 mm width; weight 132 grams.

Certified to comply with CSA, UL, EN/IEC, JIS, CE, CCC, and EAC standards. Widely applied in industry segments such as food and beverage, automotive, mining, and water treatment. Explore EnvMart’s comprehensive range of switch components including Push Button Switches for all industrial automation and control needs.
