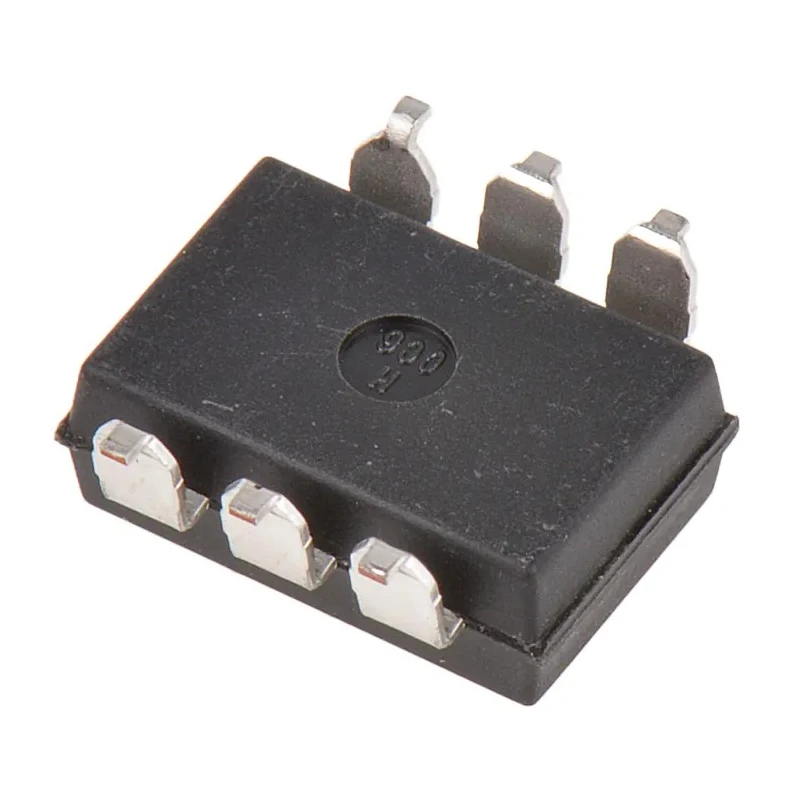

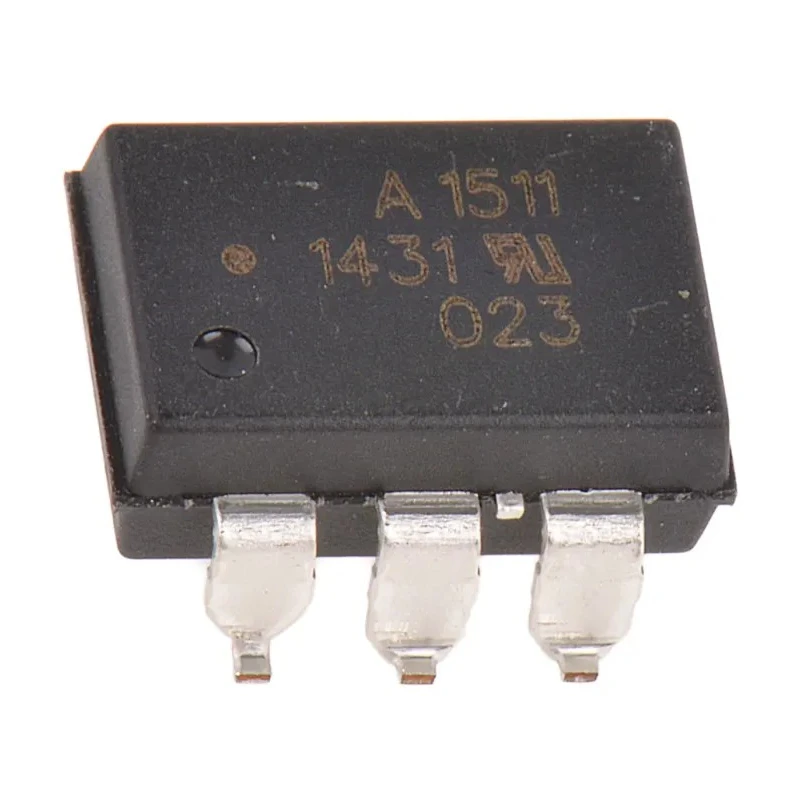

Broadcom ASSR-15XX Series Solid State Relay, 1 A Load Current, 60 V Load Voltage, Surface Mount, 0.8V Control ASSR-1511-301E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 4.2mm |
| Length | 9.7mm |
| Model | ASSR-1511-301E |
| Width | 6.4mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | ASSR-15XX |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 0.5pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | 6-Pin |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 1A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | -60V |
| Minimum Control Voltage | 0V |
| Maximum Control Voltage | 0.8V |
| Off State Leakage Current | 1μA |
Key Features
- This solid state relay features a single-pole single-throw (SPST) contact configuration.
- It supports AC and DC switching functions, ideal for versatile industrial automation use.
- Control voltage ranges from 0 to 0.8 V, allowing efficient control input.
- The relay operates reliably between temperatures of -40°C and 85°C.
- Compact dimensions of 9.7 mm length, 6.4 mm width, and 4.2 mm height enable easy integration on PCB layouts.
- Features a 6-pin terminal type suitable for surface mount technology.
- Compliance with RoHS standards guarantees environmentally friendly manufacturing.
- Low off-state leakage current of 1 μA helps reduce power consumption and heat generation.
Product Description
Broadcom ASSR-1511-301E Solid State Relay is engineered for industrial and automation applications requiring reliable switching with a load current capacity of 1 A and a maximum load voltage of 60 V. Designed for surface mount deployment, this relay supports both AC and DC switching, offering versatile control capabilities in compact form.
The solid state relay employs a high-speed photovoltaic diode array circuitry driving dual discrete MOSFETs, ensuring swift and efficient switching with low leakage current rated at 1 μA. Its single-pole single-throw (SPST) contact configuration makes it suitable for numerous control and signal conditioning tasks in electronics and industrial environments.
Rated to operate safely within -40°C to 85°C, this relay's compact dimensions (9.7 mm length, 6.4 mm width, 4.2 mm height) and 6-pin surface mount configuration facilitate straightforward PCB integration, ideal for space-constrained designs.
Broadcom's ASSR-15XX series solid state relays comply with RoHS directives, affirming adherence to environmental standards. The low capacitance of 0.5 pF optimizes relay response and minimizes interference. This relay is meticulously designed for high-throughput industrial automation, manufacturing machinery, HVAC control systems, and laboratory equipment requiring robust, noiseless switching solutions.
This relay features off-state leakage current of only 1 μA, conserving energy during idle periods. Its MOSFET output enhances switching efficiency and longevity. Surface mount form factor enables automated assembly on electronic control boards.
Capable of handling complex signal conditioning tasks in control systems. Suitable for industrial, manufacturing, and commercial automation applications requiring reliable switching performance.
Choose Broadcom ASSR-1511-301E for dependable, high-speed Solid State Relay performance in your automation projects. Explore our extensive selection of relay components in the Electronics & Electricals category at EnvMart for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 1 A.
The relay supports a maximum load voltage of 60 V and a minimum load voltage of -60 V.
The control voltage for this relay ranges from 0 V to a maximum of 0.8 V.
The dimensions of the ASSR-1511-301E are 9.7 mm in length, 6.4 mm in width, and 4.2 mm in height.
It features a single-pole single-throw (SPST) contact configuration.
The relay operates reliably within a temperature range of -40°C to 85°C.
This solid state relay is designed for surface mounting.
The off-state leakage current is rated at 1 μA, which helps in reducing power consumption.
It supports both AC and DC switching functions, making it versatile for various applications.
The ASSR-1511-301E features a 6-pin terminal type suitable for surface mount technology.
The relay complies with RoHS standards, ensuring environmentally friendly manufacturing practices.
