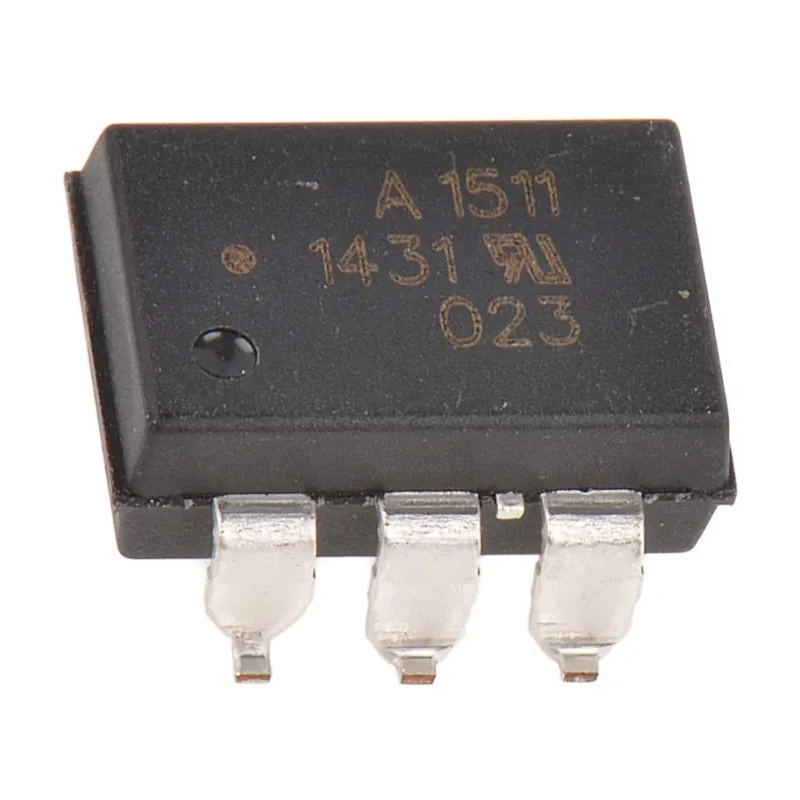

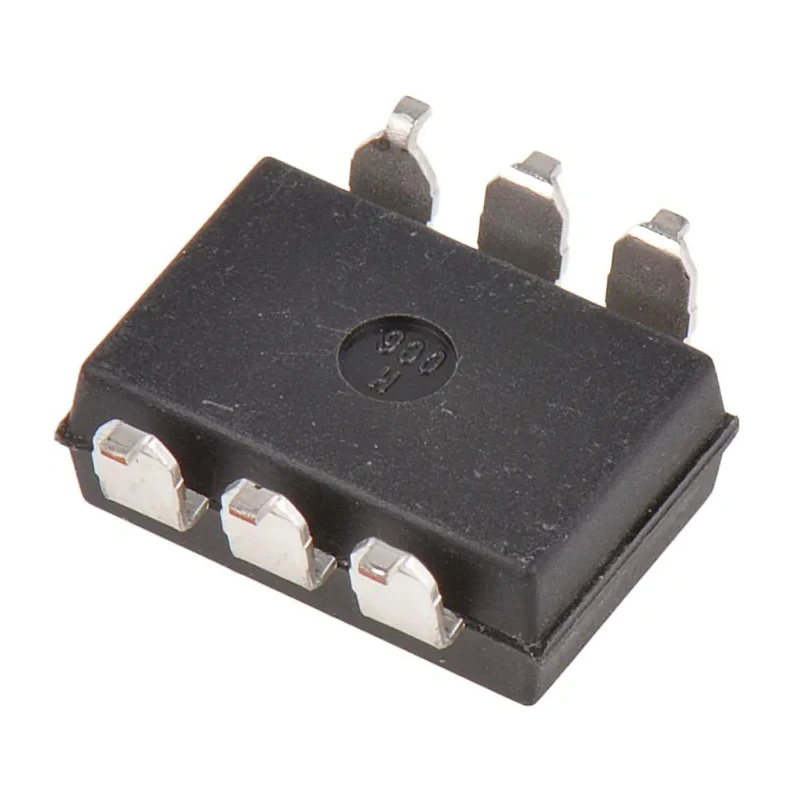

Broadcom Solid State Relay ASSR-1511-301E, 1 A Load Current, 60 V Load Voltage, Surface Mount, 0.8V Control

Broadcom ASSR-1511-301E Solid State Relay is engineered for industrial and commercial electronic control systems requiring reliable switching of loads up to 1 amp at 60 volts. This solid state relay belongs to the ASSR-15XX series and employs Photo MOSFET technology, combining an infrared LED and a high-speed photovoltaic diode array with driver circuitry to operate two discrete high voltage MOSFETs efficiently.

The device is designed for surface mount applications, featuring a 6-pin terminal configuration and a compact form factor measuring 9.7mm in length, 6.4mm in width, and 4.2mm in height. It is capable of switching both AC and DC loads, making it adaptable for a wide range of automation, industrial control, and signal conditioning use cases.

Operating reliably within a temperature range from -40°C up to 85°C, the relay ensures consistent performance in demanding environments. The off-state leakage current is minimized to 1μA, reducing unwanted power loss, with a low parasitic capacitance of 0.5pF which makes it suitable for high-frequency signal applications.

The single-pole single-throw (SPST) contact configuration simplifies integration into existing circuits, providing stable and rapid switching action. The control voltage ranges from 0 to 0.8 V, optimized for precise control inputs. Compliance with RoHS standards certifies its manufacture without hazardous substances.

Supports AC/DC switching function for versatile applications. Features a single-pole single-throw (SPST) contact configuration. Compact design with dimensions 9.7mm length, 6.4mm width, and 4.2mm height. Operates within temperature range -40°C to 85°C ensuring reliability in harsh environments.

Low off-state leakage current of 1μA minimizing power loss when off. Capacitance of just 0.5pF for high-frequency applications. Output type is MOSFET ensuring fast switching and durability. Equipped with 6-pin terminal type suitable for surface mount configurations.

This solid state relay is ideal for industrial automation, manufacturing machinery, HVAC systems, and process control applications demanding fast, silent, and reliable switching without mechanical wear.
