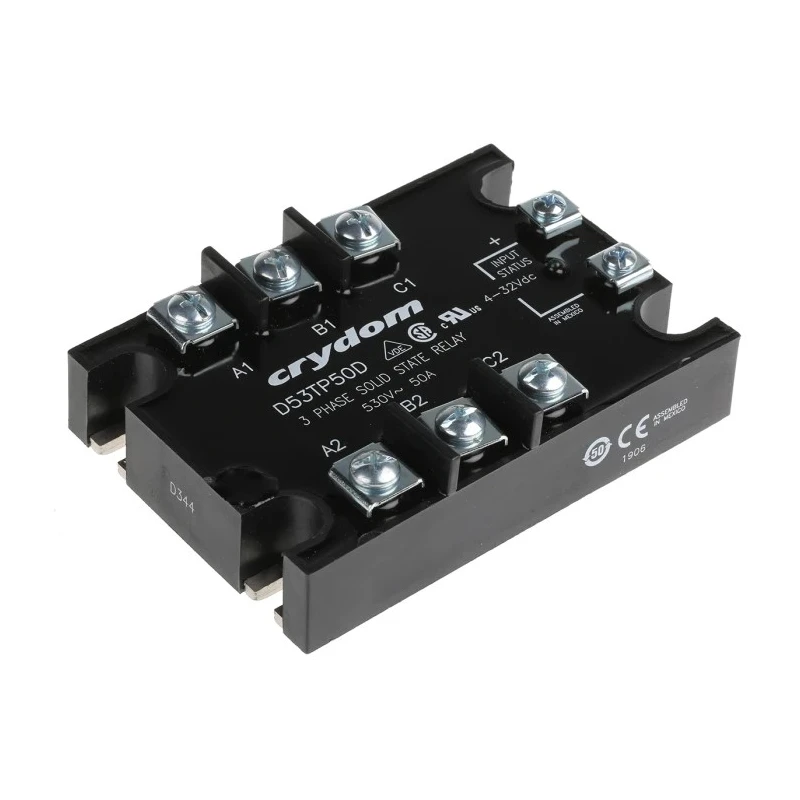

Crydom Solid State Relay Panel Mount 50A 530Vrms Load 32V Control D53TP50D

Crydom D53TP50D is a solid-state relay designed for panel mounting with a maximum load current of 50A and maximum load voltage of 530Vrms. It operates with a control voltage up to 32V and features zero cross switching to reduce electrical noise during AC switching.

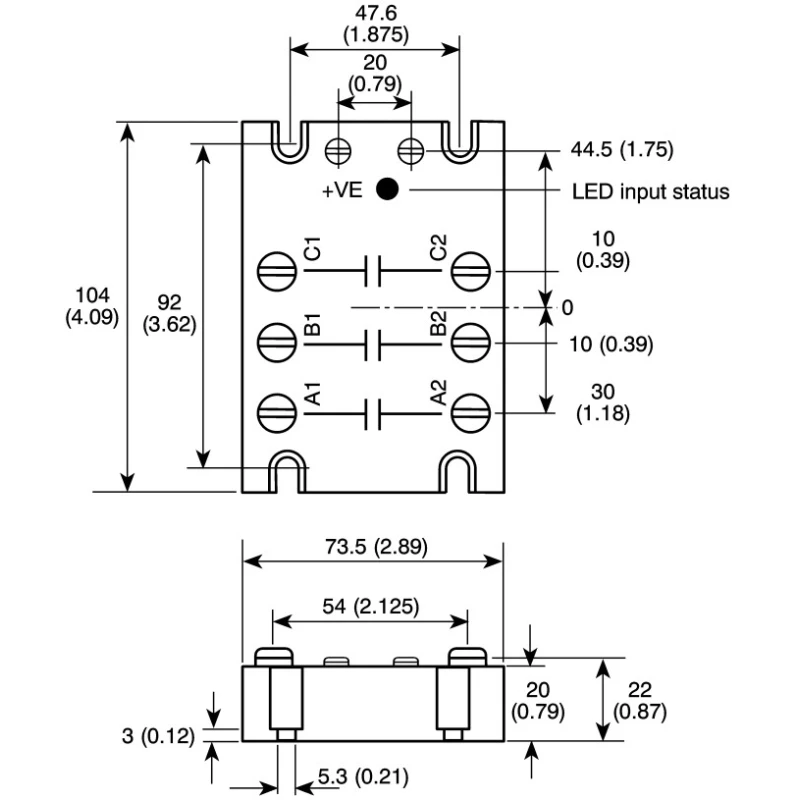

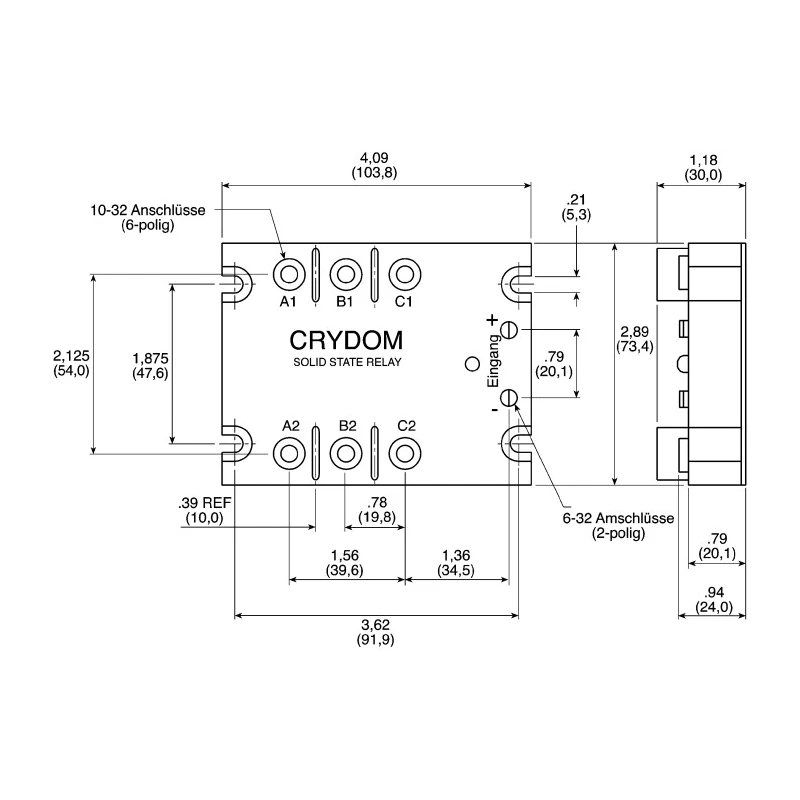

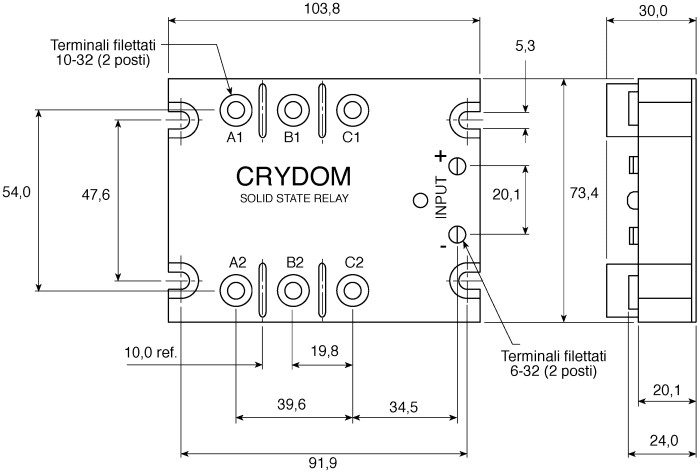

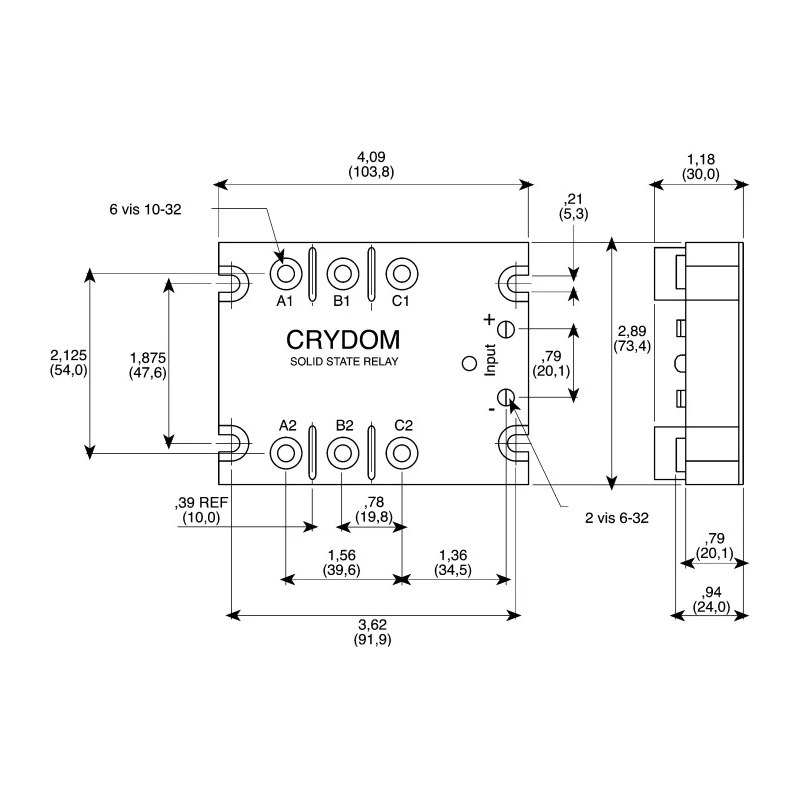

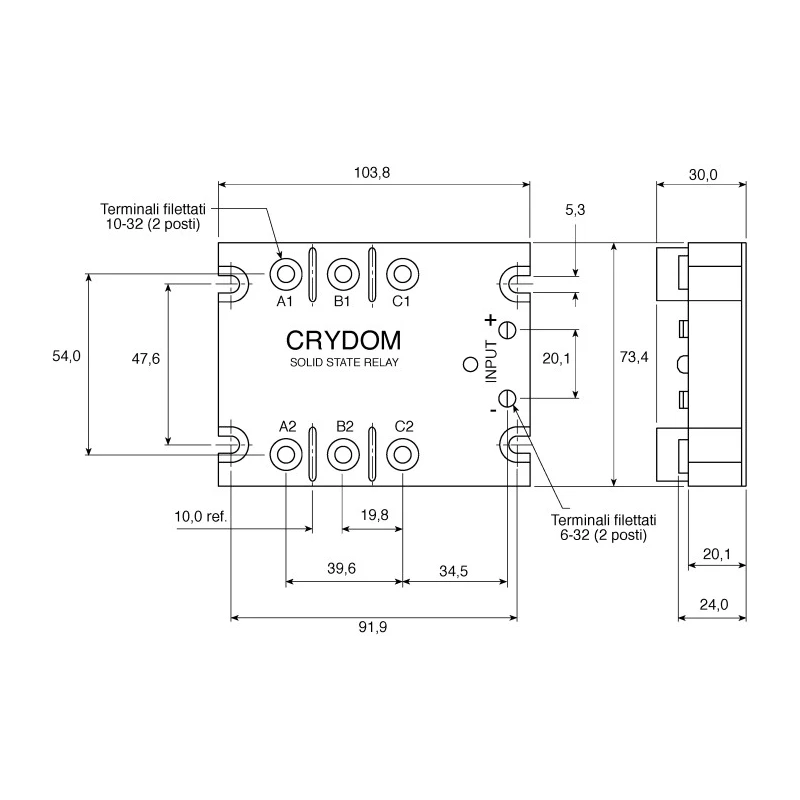

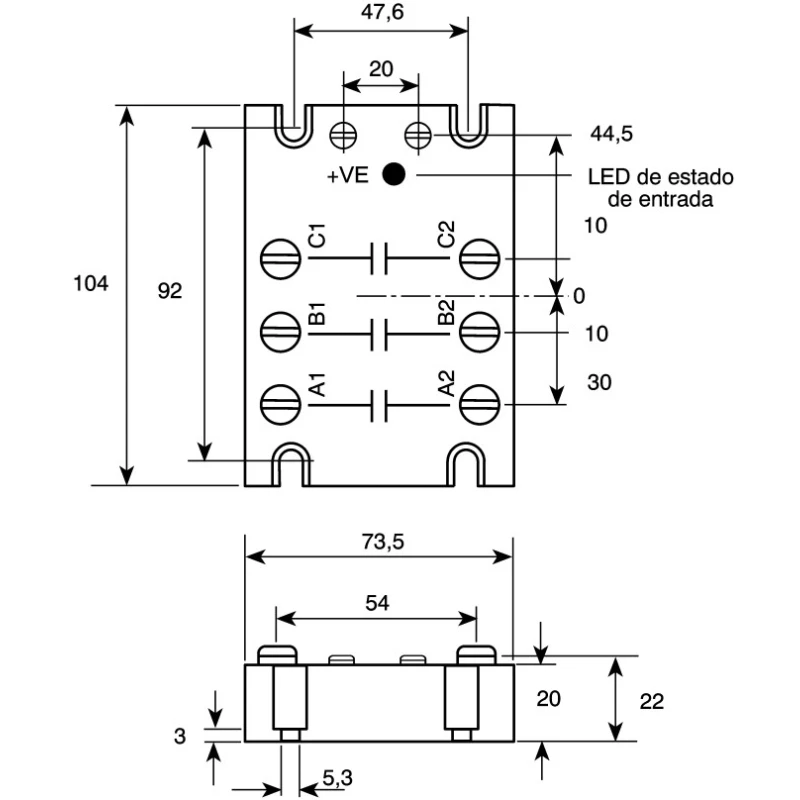

This relay uses an SCR output which provides fast, reliable switching for demanding industrial and automation applications. Its compact size of 103.8mm x 30mm x 30mm fits well in confined spaces within electrical control panels.

Operating over a broad temperature range from -40°C to +80°C, it is suitable for harsh environments and continuous operation. The device includes an LED status indicator to facilitate easy performance monitoring without intrusive checks.

Built-in transient overvoltage protection rated at 1200V safeguards connected equipment from voltage spikes. It has screw terminal connections for secure wiring and an IP20 ingress protection rating ideal for indoor panel use.

With low off-state leakage current of 10mA and minimal capacitive effect (8pF), this relay supports power-efficient and stable control performance in automation systems, factory equipment, and AC/DC controlled lighting systems.

Handles load currents up to 50A with SCR output for heavy loads. Zero Cross Switching minimizes noise by switching at AC zero voltage crossing. Compact dimensions of 103.8mm length, 30mm width, and 30mm height for panel mounting.

Wide operating temperature range from -40°C to 80°C ensures reliability in harsh environments. Features LED status indicator for monitoring operational status. Includes integral transient overvoltage protection rated at 1200V against voltage spikes.

Terminals use screw type connections suitable for secure wiring. IP20 protection rating suitable for indoor electrical panels. Low off-state leakage current of 10mA for efficient power management. Capacitance of 8pF supports stable operation and signal integrity.

This Crydom solid state relay is ideal for industrial, electrical automation, manufacturing, and HVAC control environments where fast, reliable switching under load is critical. The panel mount design facilitates easy installation into control panels and automation equipment.
