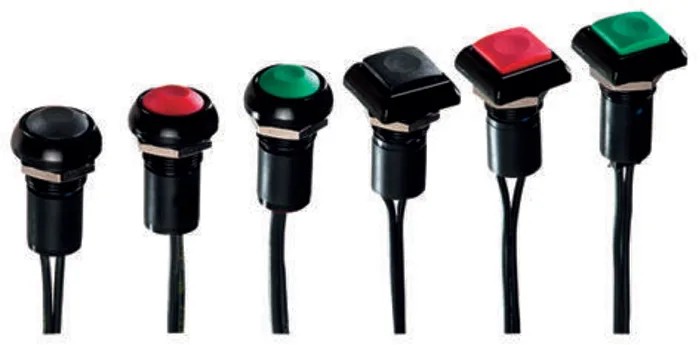

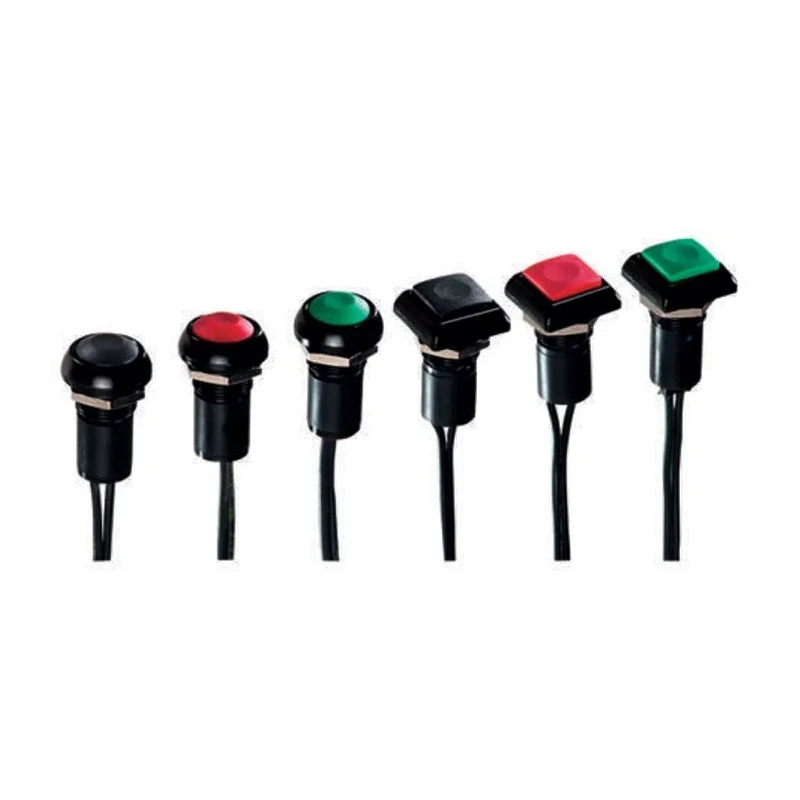

APEM IP Series Momentary Push Button Switch, Panel Mount, 12 mm Cutout, Red Actuator, SPST, IP67, 50 V dc 250 V ac IPC3FAD-6
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 16mm |
| Model | IPC3FAD-6 |
| IP Rating | IP67 |
| Width | 17.5mm |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Switch Configuration | Momentary |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 50V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
| Very robust | IK06 |
Key Features
- Sealed to IP67 standard for protection against dust and water ingress.
- Suitable for harsh environments with robust IK06 construction.
- Operates at 50 V dc and 250 V ac contact voltage ratings.
- Maximum operating temperature of 125°C and minimum of -40°C.
- Provides excellent tactile feedback for reliable momentary operation.
- Through hole terminal type for secure panel wiring connections.
- Compact dimensions with 16 mm height and 17.5 mm width.
- Complies with RoHS standards ensuring environmental compliance.
Product Description
The APEM IPC3FAD-6 is a momentary push button switch from the IP Series designed for panel mounting applications requiring reliable and sealed switching. Featuring a red actuator and a compact 12 mm panel cutout, this SPST switch offers robust performance with an IP67 ingress protection rating, making it ideal for harsh industrial, laboratory, and automation environments.
This switch operates with contact voltages of 50 V dc and 250 V ac, providing flexibility for various electrical systems. It supports a maximum current rating of 5 A AC, and is rated for operation between -40°C and 125°C, ensuring dependable functionality under extreme temperature conditions.
The durable IK06 construction ensures resistance to mechanical impact and salt spray, enhancing longevity in demanding settings. The through-hole terminal type facilitates secure electrical connections via 500 mm wire leads. Compliant with RoHS environmental standards and manufactured in France, this device meets stringent international quality standards including EN 50102, IEC 512-4, and IEC 512-6.
This momentary push button switch is well-suited for applications in industrial automation, electrical panels, machinery control, HVAC controls, and water treatment systems where sealed, tactile feedback switches are critical.
Sealed to IP67 standard for dust and water protection. Robust IK06 rated construction for mechanical durability. Red actuator with 12 mm panel cutout size for easy installation. SPST momentary switch configuration providing reliable control.
Operates safely at 50 V dc and 250 V ac voltages. Wide operating temperature range from -40°C to 125°C. Through hole terminals with 500 mm wire leads for secure connections. RoHS compliant ensuring environmental safety. Manufactured in France under international standards EN 50102, IEC 512-4, IEC 512-6.
Consider exploring the Electronics & Electricals category at EnvMart for more quality Push Button Switches and industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The APEM IPC3FAD-6 has an ingress protection rating of IP67, ensuring it is sealed against dust and water ingress.
It operates at contact voltages of 50 V dc and 250 V ac, providing flexibility for various electrical systems.
The maximum current rating for the IPC3FAD-6 is 5 A AC.
This model can operate within a temperature range of -40°C to 125°C.
The required panel cutout size for this push button switch is 12 mm.
It features a through-hole terminal type, which allows for secure panel wiring connections via 500 mm wire leads.
The IPC3FAD-6 is rated IK06 for mechanical impact resistance, ensuring durability in demanding environments.
This switch is suitable for applications in industrial automation, electrical panels, machinery control, HVAC controls, and water treatment systems.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
The APEM IPC3FAD-6 is manufactured in France.
The actuator of this model is red.
It has a momentary switch configuration with SPST contact arrangement.
