Nexperia Digital Transistor 100 mA NPN 50 V 6-Pin SOT-457 PIMH9,115

Nexperia PIMH9,115 is a high-quality Digital Transistor designed as an NPN device offering a maximum collector current of 100 mA and a maximum collector emitter voltage of 50 V. Packaged in a 6-pin SOT-457 surface mount package, this transistor is ideal for compact and efficient digital switching applications.

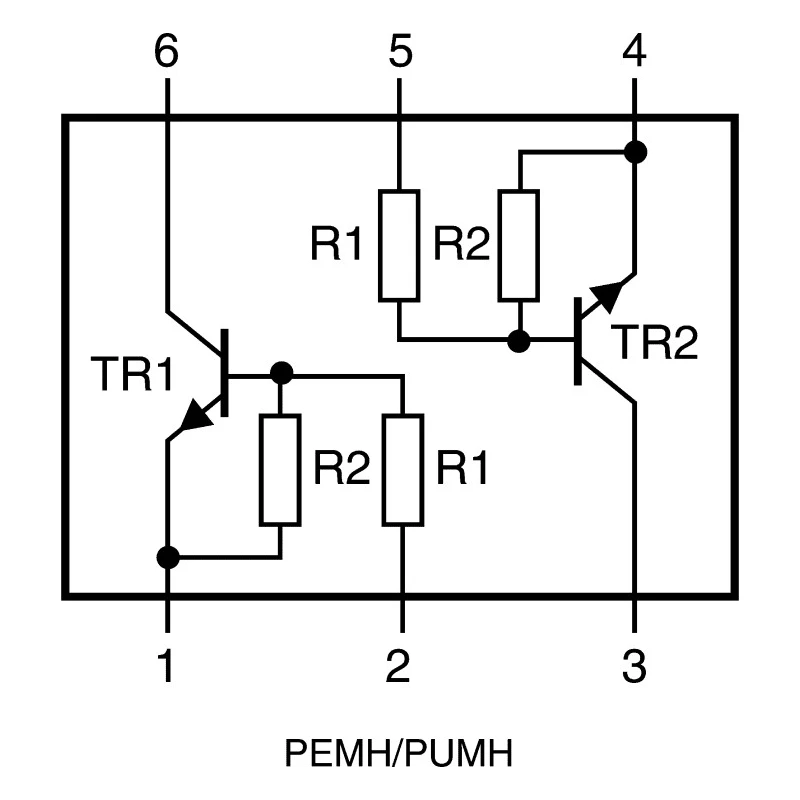

This transistor integrates one or two resistors internally, known as digital or bias resistor transistors, enabling direct drive from digital logic sources without external resistors. It is an isolated transistor configuration that provides robust performance in various electronic circuit designs. The device supports a maximum power dissipation of 400 mW and operates reliably across a wide temperature range from -55°C up to 150°C.

The Nexperia PIMH9,115 complies with the RoHS directives and meets the automotive industry standard AEC-Q101, ensuring suitability for automotive-grade applications. Its compact dimensions - 3.1 mm length, 3 mm width, and 1.1 mm height - allow integration into space-limited PCB layouts.

Typical applications include industrial systems, automotive electronic controls, consumer electronics, and digital logic circuits requiring efficient switching devices with a guaranteed minimum DC current gain of 100 and a transition frequency of up to 230 MHz.

Incorporating this component improves design reliability and production efficiency by reducing external component count and assembly complexity due to its integrated resistors and surface-mount form factor.

Maximum DC collector current 100 mA. Collector emitter voltage 50 V. Surface mount 6-pin SOT-457 package. Integrated resistors for direct digital drive. Wide operating temperature range -55°C to 150°C. Power dissipation rating 400 mW.

RoHS compliant and AEC-Q101 certified. Compact package size suitable for high-density designs. High gain and frequency for fast switching. Explore more Nexperia transistors and electronic components in the Electronics & Electricals catalog at EnvMart.
