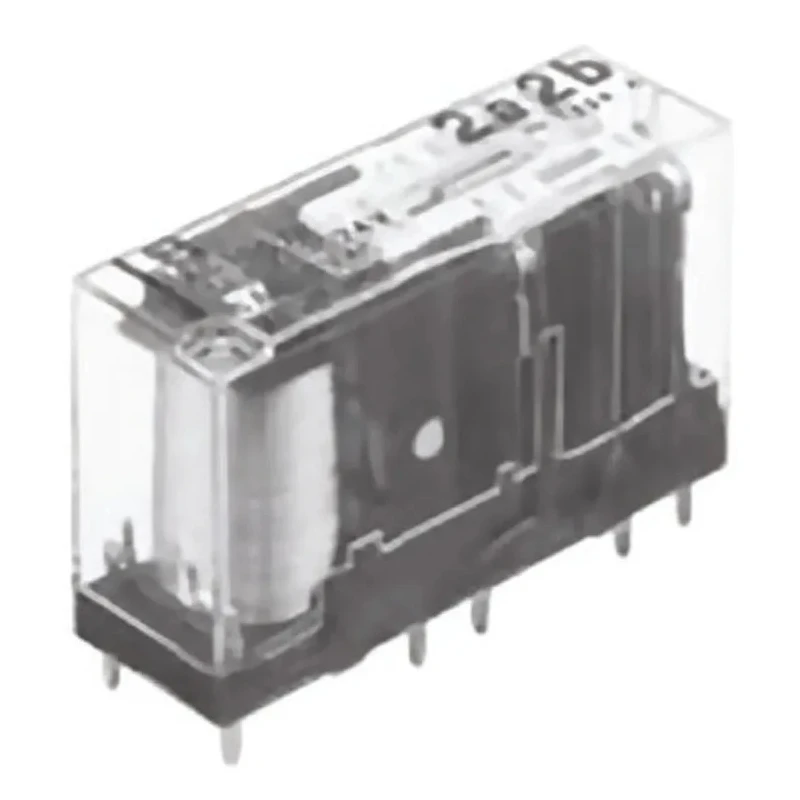

Panasonic PCB Force Guided Relay, 24V DC Coil Voltage, 6-Pole, Slim Compact SF Series SFS5-DC24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 24mm |
| Length | 50mm |
| Model | SFS5-DC24V |
| Depth | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SF |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 6 |
| Coil Resistance | 1.152kΩ |
| Coil Power | 500mW |
| Isolation Coil To Contact | 4kVrms |
| High shock resistance, functional | Min 200m/s2 |
| RELAY, SF, SLIM COMPACT SAFETY, 5 FORM A/1 FORM B, 6 POLES, 24VDCBrand | Panasonic |
Key Features
- Features a slim profile with dimensions 50mm length, 24mm height, and 13mm depth.
- Coil resistance of 1.152 kΩ and coil power consumption of 500 mW ensure efficient operation.
- Built with silver alloy contacts and forcibly guided contact structure for enhanced safety.
- Provides high shock resistance with a minimum functional shock of 200 m/s².
- Operating temperature range from -40°C to 85°C for wide environmental compatibility.
- Designed for PCB mount with solder-type terminals for stability and ease of installation.
- Isolation of coil to contact rated at 4 kVrms to meet stringent safety standards.
- Typical applications include machine tools, robots, safety PLCs, and motor vehicle production equipment.
Product Description
Panasonic SFS5-DC24V PCB Force Guided Relay offers a robust solution for automation and safety applications requiring precise switching and durability. This 6-pole relay operates on a 24V DC coil voltage with a coil resistance of 1.152 kΩ, consuming only 500 mW of power, making it efficient and reliable.
Its slim profile, measuring 50mm in length, 24mm in height, and 13mm in depth, allows for compact PCB mounting, optimizing space on control panels. The relay features silver alloy contacts and a forcibly guided contact structure, ensuring mechanical interlocking of contacts for enhanced safety and compliance with rigorous standards.
Designed to withstand harsh industrial environments, the relay has a high functional shock resistance of at least 200 m/s² and operates in a wide temperature range from -40°C to 85°C. The solder terminal type ensures secure and stable connections on printed circuit boards.
The relay’s coil-to-contact isolation rating of 4 kVrms provides excellent electrical isolation, critical in safety-related applications such as safety PLCs, robotics, machine tools, and motor vehicle production equipment. The SF series is renowned for its fast response time, with switching occurring in 8 milliseconds or less.
Compact and slim form factor for efficient PCB mounting. High durability and safety with forcibly guided contacts and silver alloy material. Wide operating temperature and high shock resistance ensure longevity in industrial use.
Low power coil reduces energy consumption while maintaining performance. Ideal for safety circuits requiring compliance with strict safety standards.
Panasonic's SF series PCB Force Guided Relays provide dependable switching performance essential for industrial, manufacturing, and automation sectors. Their build quality and safety features make them suitable for applications involving stringent safety requirements.
Explore a wide range of high-quality relays and electrical components in the Electronics & Electricals category at EnvMart for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates on a 24V DC coil voltage.
This model has a length of 50mm, a height of 24mm, and a depth of 13mm.
The coil resistance is 1.152 kΩ.
It has a coil power consumption of 500 mW.
The isolation of coil to contact is rated at 4 kVrms.
The operating temperature range is from -40°C to 85°C.
It features solder-type terminals for secure PCB mounting.
The contacts are made of silver alloy.
Typical applications include machine tools, robots, safety PLCs, and motor vehicle production equipment.
It has a minimum functional shock resistance of 200 m/s².
This relay has 6 poles.
This model belongs to the SF series of relays.
