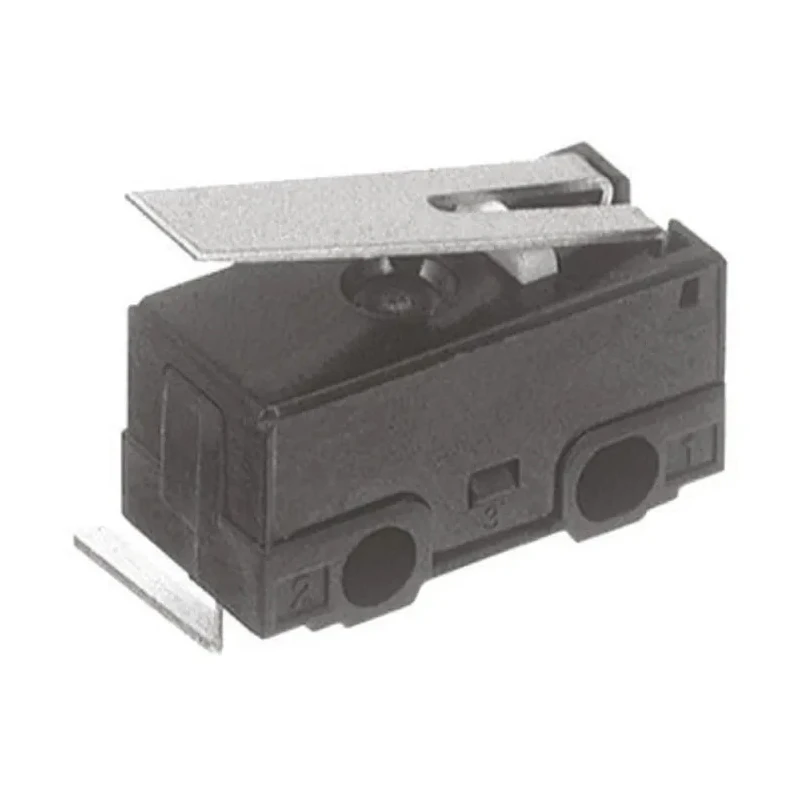

Panasonic Hinge Lever Micro Switch Left Angle PCB Terminal 100mA 125V ac 30V dc SPCO AH1882619-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Length | 12.8mm |
| Model | AH1882619-A |
| Depth | 6mm |
| Series | AH1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Left Angle PCB Terminal |
| Standards/Approvals | UR, RoHS, CSA |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5465Brand: PanasonicManufacturers Part No.: AH1882619-A |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.25N |
| Mechanical Life | 10Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Ultra Miniature |
Key Features
- The switch features a hinge lever actuator for reliable mechanical operation.
- Designed with a left angle PCB terminal for easy soldering and mounting.
- Operates with a contact current rating of 100mA suitable for sensitive circuits.
- Supports AC voltage up to 125V and DC voltage up to 30V.
- Compact dimensions of 12.8mm length and 6mm depth for space-constrained applications.
- Has a low operating force of 0.25N for smooth engagement.
- Capable of operating in temperatures ranging from -25°C to 85°C.
- Built for durability with a mechanical life of 10 million operations.
Product Description
Panasonic AH1882619-A is an ultra miniature hinge lever micro switch designed for precise and compact switching needs. Featuring a left angle PCB terminal, it offers excellent connectivity for circuit boards in a variety of electrical and automation applications.
Its SPCO contact configuration and 100mA contact current rating make it suitable for sensitive electrical control systems, including automotive key position detectors, computer peripherals, and mobile phone charger units. The ultra miniature dimensions (12.8mm length x 6mm depth x 8.5mm width) allow it to be used where space savings are critical.
The device operates efficiently within a broad temperature range of -25°C to 85°C, with an operating force of just 0.25N, enhancing performance in demanding environments. Mechanical endurance is robust, supporting up to 10 million operations.
The switch complies with industry standards UR, RoHS, and CSA, validating its safety and environmental compliance. Its integrally moulded terminal block prevents soldering flux ingress, and flat terminal shapes facilitate easy soldering.
Typical applications include computer mice, mobile phone chargers, and automotive key detection, where high precision and miniature size are essential. Part of the AH1 series from Panasonic, this switch is produced in Thailand with strict quality control.
The switch has a hinge lever actuator ensuring reliable operation. Left angle PCB terminals provide easy integration on printed circuit boards. Supports 100mA switch contact current at 125V ac and 30V dc. Broad operating temperature range from -25°C to 85°C.
Compact size minimizes equipment space requirements. Outstanding mechanical life of 10 million operations. Certified to UR, RoHS, and CSA standards. Manufactured under the AH1 series ensuring quality. Discover more Panasonic Micro Switches and explore comprehensive electrical automation solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has a contact current rating of 100mA, making it suitable for sensitive electrical control systems.
It supports an AC voltage of up to 125V and a DC voltage of up to 30V.
The operating temperature range is from -25°C to 85°C, allowing it to function in various environments.
This model features a hinge lever actuator, which ensures reliable mechanical operation.
The dimensions of the switch are 12.8mm in length, 6mm in depth, and 8.5mm in width.
It has a mechanical life of up to 10 million operations, indicating its durability in use.
It is designed with a left angle PCB terminal for easy soldering and mounting on circuit boards.
The switch complies with UR, RoHS, and CSA standards, ensuring safety and environmental compliance.
The operating force is 0.25N, allowing for smooth engagement during operation.
This model is manufactured in Thailand, adhering to strict quality control standards.
Typical applications include computer mice, mobile phone chargers, and automotive key detection systems.
It is part of the AH1 series from Panasonic, which encompasses various micro switch models.
