Omron Subminiature Micro Switch Hinge Lever Wire Terminal SPST-NC IP67 1mA 13.5V DC D2GW-SC1L2M

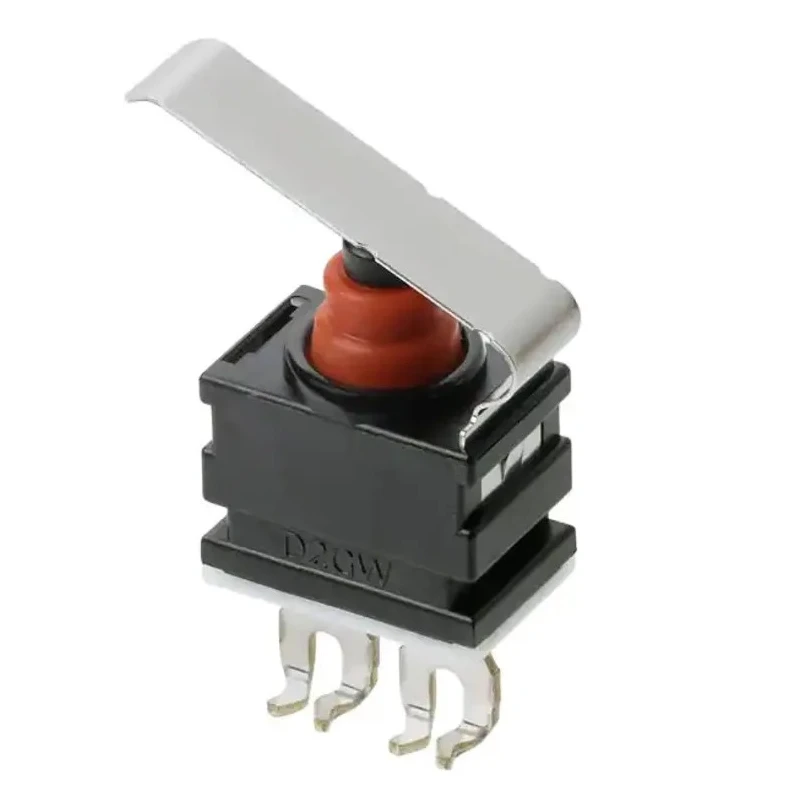

Name: Omron Subminiature Micro Switch Hinge Lever Wire Terminal SPST-NC IP67 1mA 13.5V DC D2GW-SC1L2M
Brand: Omron
SKU: 93113
Price: 10.08 USD
Availability: InStock



Category Micro Switches Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Model	D2GW-SC1L2M
IP Rating	IP67
Series	D2GW
Maximum Operating Temperature	85°C
Contact Configuration	SPST-NC
Actuator Type	Hinge Lever
Minimum Operating Temperature	-40°C
Terminal type	Wire
Standards/Approvals	RoHS
Contact DC Voltage	13.5V dc
Switch Contact Current	1mA

Key Features

Supports 1mA switch contact current for safe micro-load applications.
Hinge lever actuator enables precision operation and versatile movements.
Wire terminal design offers easy and reliable electrical connections.
SPST-NC contact configuration ensures straightforward switching functionality.
IP67 degree of protection ensures dust-tight and water-resistant performance.
Wide operating temperature range from -40°C to 85°C for demanding environments.
Compact, ultra subminiature form factor aids space-saving design.
RoHS compliant for environmentally safe manufacturing.

Product Description

Omron D2GW-SC1L2M is a highly reliable subminiature micro switch featuring a straight hinge lever actuator and wire terminal configuration. Designed for precise control in industrial, automation, and instrumentation environments, this switch delivers dependable performance for micro-load support and sensitive actuation needs.

With a SPST-NC (Single Pole Single Throw - Normally Closed) contact configuration, the switch is ideal for applications demanding accurate switching and safety. The 1mA contact current and 13.5V DC voltage specification enable compatibility with low power circuits, sensors, and signal transmission. Its compact, symmetrical design aids slim device integration and simplifies mechanical installations in space-constrained projects.

Offering robust IP67 protection, this micro switch resists dust and offers waterproof reliability, making it suitable for use in harsh and demanding conditions such as outdoor electronics, process control panels, and automated machinery. Its broad operating temperature range from -40°C to 85°C adds to its versatility across challenging environments.

The wire terminal style encourages quick, secure, and solder-less connections, enhancing maintenance efficiency and ease of assembly. The hinge lever actuator delivers tactile feedback and consistent actuation for repetitive operations, while the sliding internal structure ensures quiet functioning during actuation cycles.

Supports 1mA switch contact current for safe micro-load applications. Hinge lever actuator enables precision operation and versatile movements. Wire terminal design offers easy and reliable electrical connections. SPST-NC contact configuration ensures straightforward switching functionality.

IP67 degree of protection ensures dust-tight and water-resistant performance. Wide operating temperature range from -40°C to 85°C for demanding environments. Compact, ultra subminiature form factor aids space-saving design.

RoHS compliant for environmentally safe manufacturing.

Applications include industrial machinery controls, HVAC systems, laboratory instrumentation, automation equipment, and safety interlocks. The Omron D2GW-SC1L2M micro switch is a top choice for engineers seeking lasting reliability, excellent protection, and adaptability in compact electrical switching solutions.

Explore more Omron Micro Switches and industrial automation products in EnvMart's Switches & Sockets category for robust solutions matched to your technical requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a SPST-NC (Single Pole Single Throw - Normally Closed) contact configuration, which ensures straightforward switching functionality.

The maximum operating temperature for the D2GW-SC1L2M is 85°C, making it suitable for demanding environments.

The Omron D2GW-SC1L2M has an IP67 rating, ensuring it is dust-tight and water-resistant.

The minimum operating temperature for this micro switch is -40°C, allowing it to function in extreme conditions.

This model uses a hinge lever actuator, which enables precision operation and versatile movements.

The D2GW-SC1L2M supports a switch contact current of 1mA, making it suitable for micro-load applications.

This micro switch operates at a contact DC voltage of 13.5V, compatible with low power circuits.

It features a wire terminal design, which allows for easy and reliable electrical connections.

Yes, this micro switch is RoHS compliant, ensuring environmentally safe manufacturing practices.

The D2GW-SC1L2M is suitable for applications such as industrial machinery controls, HVAC systems, laboratory instrumentation, and safety interlocks.

The specific dimensions of the D2GW-SC1L2M are not provided, but it is designed to be compact and ultra subminiature for space-saving integration.

The wire terminal style of the D2GW-SC1L2M encourages quick, secure, and solder-less connections, enhancing maintenance efficiency and ease of assembly.
