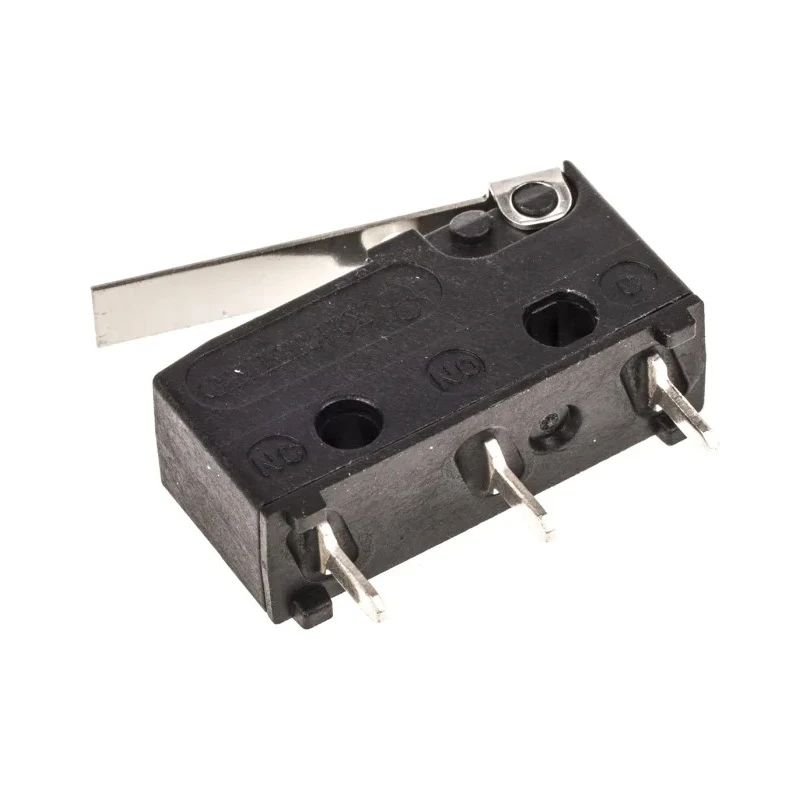

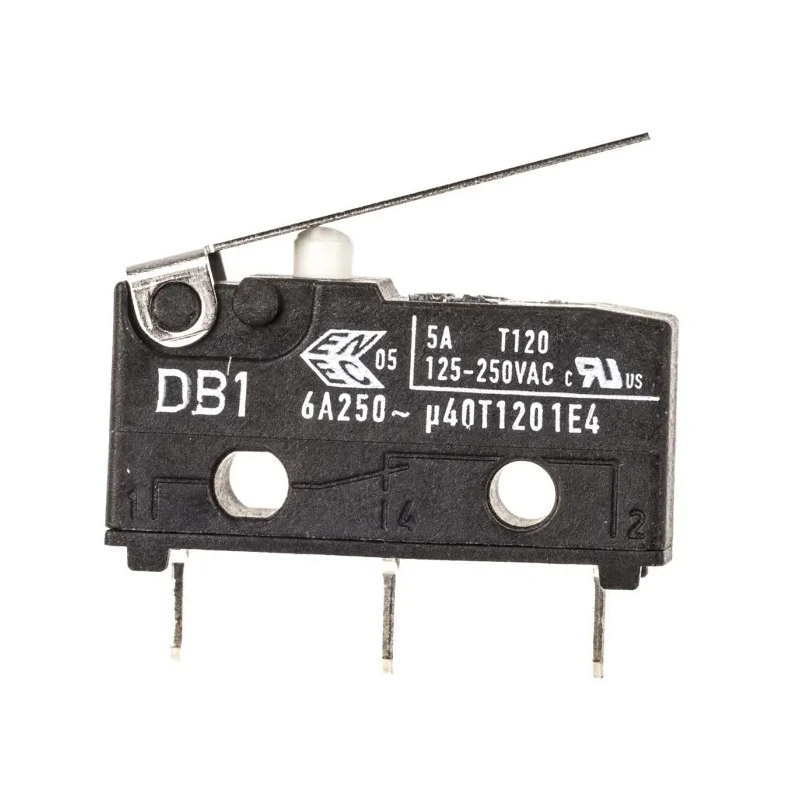

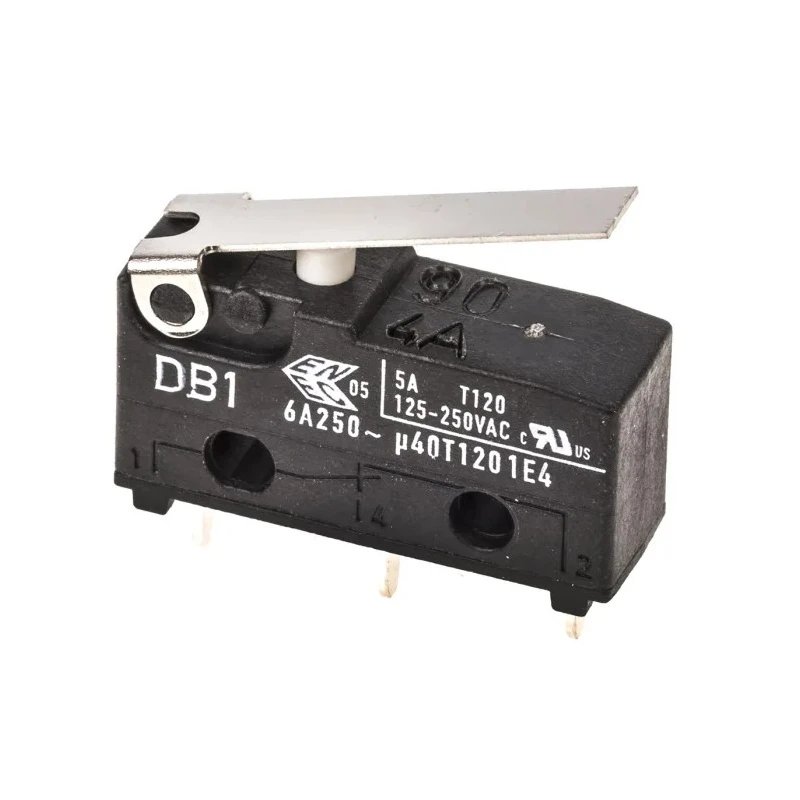

ZF Short Lever Micro Switch Solder Terminal 6A 250V AC SPDT IP50 DB1C-C1LB
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |
| Model | DB1C-C1LB |
| IP Rating | IP50 |
| Housing Material | Polyamide, Polyethylene Terephthalate |
| Series | DB1 |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Short Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Contact Current | 6A |
| Operating Force | 0.59N |
| Mechanical Life | 15000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DB Subminiature |
| PCB LEVER MICROSWITCHBrand | NEUTRAL |
| ZF Long Hinge Lever Micro Switch, Solder Terminal, 6A, 250 V ac, SPDT, IP50Brand | ZF |
| ZF Short Lever Microswitch, PCB Terminal, 10.1 A @ 250 V ac, SPDTBrand | ZF |
Key Features
- High mechanical life of up to 15 million operations.
- Operates efficiently over a temperature range from -40°C to 120°C.
- Durable housing made from polyamide and polyethylene terephthalate.
- Light operating force of 0.59 Newton provides sensitive actuation.
- Complies with RoHS standards for environmental safety.
- Suitable for industrial, automation, electrical, and HVAC applications.
- Compact DB series switch with V4 case size for easy integration.
- Wide variety of auxiliary actuators and terminal types available.
Product Description
ZF DB1C-C1LB short lever micro switch is a precision-engineered electrical switch designed for industrial and automation use, rated at 6 Amps and 250 Volts AC with a Single Pole Double Throw (SPDT) contact arrangement. Featuring a robust polyamide and polyethylene terephthalate housing, this microswitch offers reliability and durability in demanding environments.
It has a compact subminiature design (DB series) with a short lever actuator and solder terminals, making it ideal for applications requiring reliable switching with minimal space consumption. The switch operates with an actuation force of 0.59N and is capable of enduring up to 15 million mechanical operations, guaranteeing long service life.
Operating temperature ranges from -40°C to 120°C, allowing performance in varied environmental conditions. With an IP50 rating, it provides protection against dust ingress, enhancing operational stability in industrial settings. The switch conforms to RoHS environmental directives, ensuring it meets safety and ecological standards.
This micro switch is suited for a broad spectrum of applications including industrial automation systems, electrical equipment, HVAC controls, manufacturing machinery, and laboratorial instruments where precise and reliable switching is critical.
High mechanical life up to 15 million operations. Wide operating temperature range from -40°C to 120°C. Durable polyamide and polyethylene terephthalate housing. Low operating force of 0.59 Newtons. Compliant with RoHS environmental standards.
SPDT contact configuration for versatile circuit control. IP50 rated for dust protection. Compact subminiature DB series design with short lever actuator. Solder terminal type for secure electrical connections.
Set includes one ZF DB1C-C1LB short lever micro switch ready for integration in electrical and automation equipment assemblies. Explore more Micro Switches and electrical components on EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of the ZF DB1C-C1LB micro switch is 120°C.
This model is rated for 6 Amps and 250 Volts AC.
It features a Single Pole Double Throw (SPDT) contact configuration.
The operating force required to actuate this switch is 0.59 Newtons.
The housing is made from polyamide and polyethylene terephthalate.
It has a mechanical life expectancy of up to 15 million operations.
The switch has an IP50 rating, providing protection against dust ingress.
The minimum operating temperature for this model is -40°C.
This micro switch uses solder terminals for secure electrical connections.
It is suitable for industrial automation systems, electrical equipment, HVAC controls, and manufacturing machinery.
Yes, it complies with RoHS standards for environmental safety.
This micro switch belongs to the DB series, characterized by its compact subminiature design.
