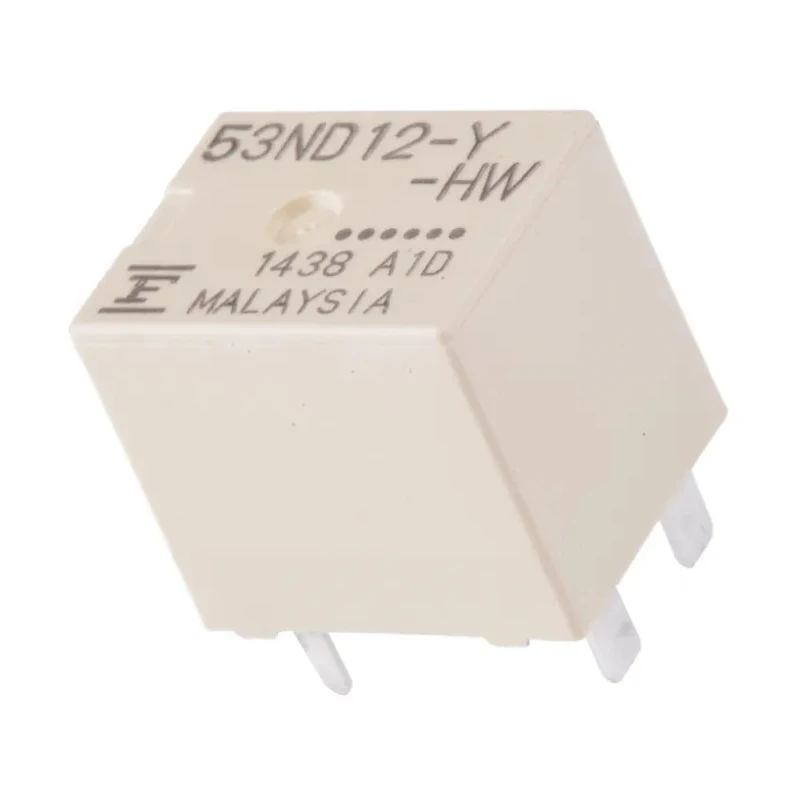

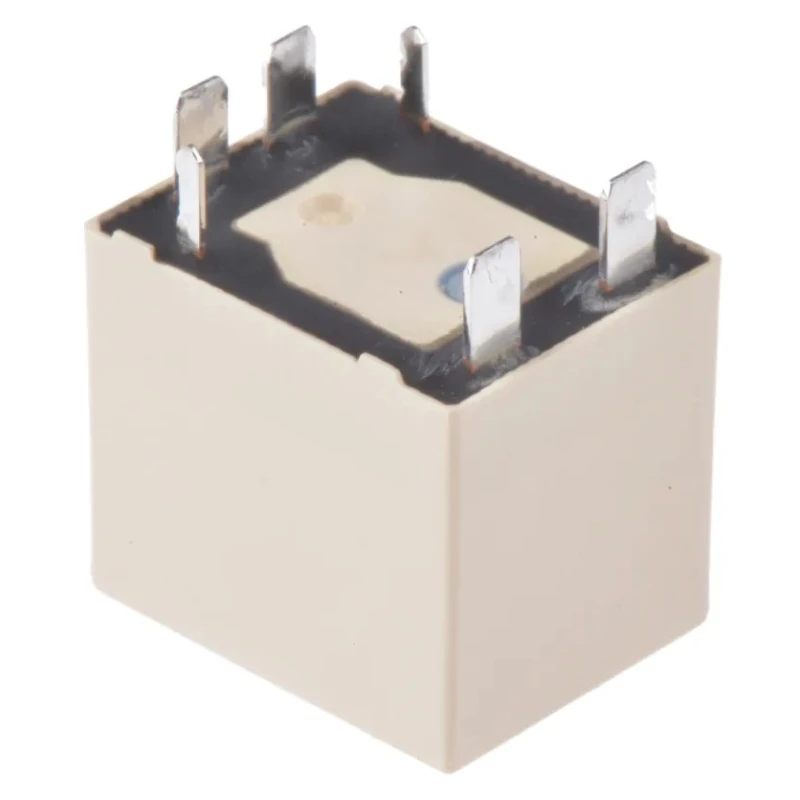

Fujitsu PCB Automotive Relay 12V Coil Voltage 40A Switching Current SPST FBR53ND12-Y-HW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Fujitsu |
| Height | 13.7mm |
| Length | 15.5mm |
| Model | FBR53ND12-Y-HW |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | FBR53 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Coil Resistance | 167Ω |
| Coil Power | 860mW |
Key Features
- Operates efficiently at coil power of 860mW.
- Features coil resistance of 167 ohms for stable operations.
- PCB mounting with PCB terminal type ensures easy integration.
- Durable silver alloy contact material enhances electrical conductivity.
- Operating temperature range from -40°C to 85°C for harsh environments.
- Compact size with length 15.5mm and height 13.7mm suitable for tight spaces.
- Designed for a minimum electrical life of 100,000 operations.
- High contact rating of 25A at 14V DC resistive load.
Product Description
Fujitsu FBR53ND12-Y-HW PCB Automotive Relay offers a robust 12V coil voltage and a high switching current capacity of 40A with a single-pole single-throw (SPST) contact configuration. This relay is designed for automotive and industrial applications requiring high durability and reliable switching performance.
The relay operates at a coil power of 860mW and has a coil resistance of 167Ω, ensuring efficient and stable coil energization. Its PCB mount type and PCB terminal enable straightforward printed circuit board integration in complex automotive electrical systems.
The contact material is silver alloy, chosen for its excellent conductivity and wear resistance, contributing to longer electrical life and consistent performance. The relay can operate in a temperature range from -40°C up to 85°C, making it suitable for harsh automotive environments and varying operational conditions.
Physically compact, with dimensions of 15.5mm length and 13.7mm height, it fits well in designs requiring minimal space usage. The FBR53 series features a minimum electrical life of 100,000 operations and a contact rating of 25A at 14V DC under resistive loads, making it reliable for frequent switching tasks.
Operates efficiently at coil power of 860mW. Features coil resistance of 167 ohms for stable operations. PCB mounting with PCB terminal type ensures easy integration. Durable silver alloy contact material enhances electrical conductivity.
Operating temperature range from -40°C to 85°C for harsh environments. Compact size with length 15.5mm and height 13.7mm suitable for tight spaces. Designed for a minimum electrical life of 100,000 operations. High contact rating of 25A at 14V DC resistive load.
Series designation: FBR53 series from Fujitsu for automotive power relay needs. Ideal for automotive and industrial relay switching requirements.
This relay is commonly used in automotive electrical systems, industrial control panels, and embedded electronic devices where PCB mounting is preferred for secure installation and effective electrical isolation.
Choose Fujitsu FBR53ND12-Y-HW for dependable performance in demanding automotive and industrial environments. Explore more Automotive Relays and electronic components on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Fujitsu FBR53ND12-Y-HW operates at a coil voltage of 12V.
This model has a high switching current capacity of 40A.
It features a single-pole single-throw (SPST) contact configuration.
The relay has a length of 15.5mm and a height of 13.7mm, making it compact for tight spaces.
The coil resistance is 167 ohms, which supports stable operations.
It can operate in a temperature range from -40°C to 85°C, suitable for harsh environments.
This model is designed for PCB mounting with a PCB terminal type for easy integration.
The contact material is silver alloy, which enhances electrical conductivity and wear resistance.
The relay is designed for a minimum electrical life of 100,000 operations.
It operates efficiently at a coil power of 860mW.
This relay is commonly used in automotive electrical systems and industrial control panels.
The contact rating is 25A at 14V DC under resistive loads.
