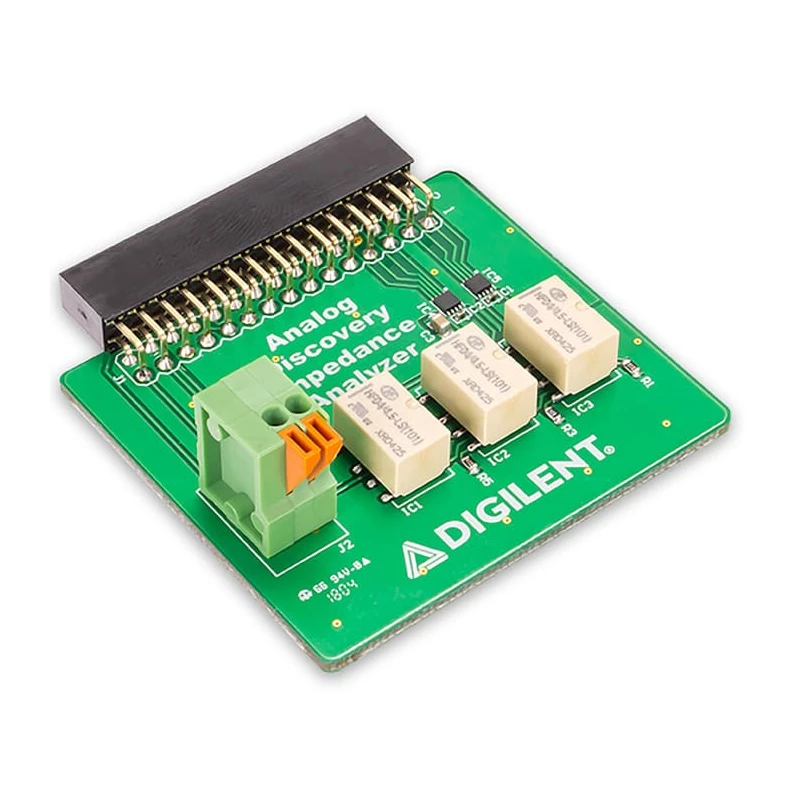

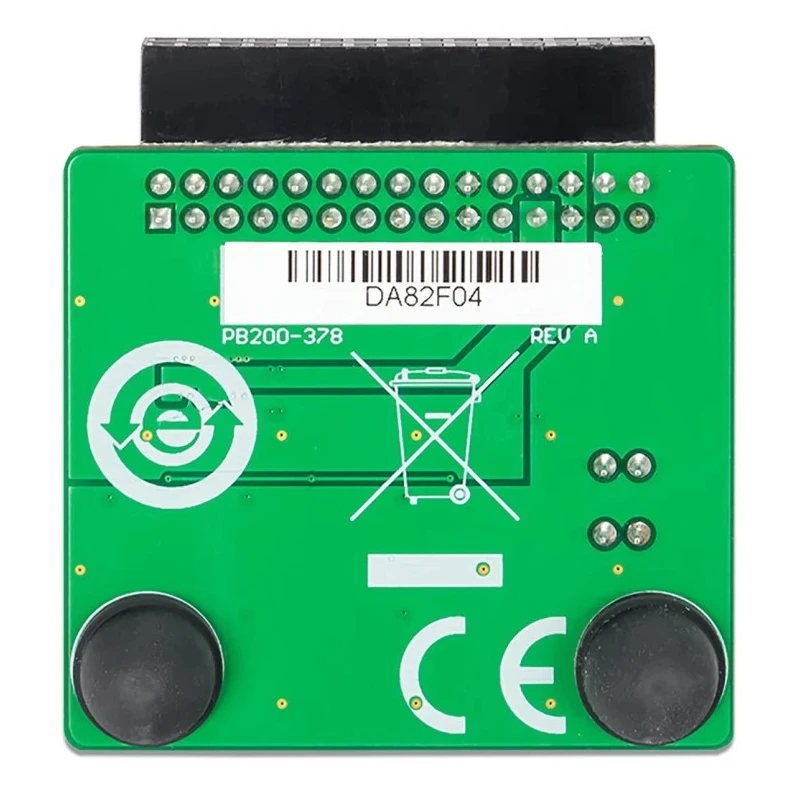

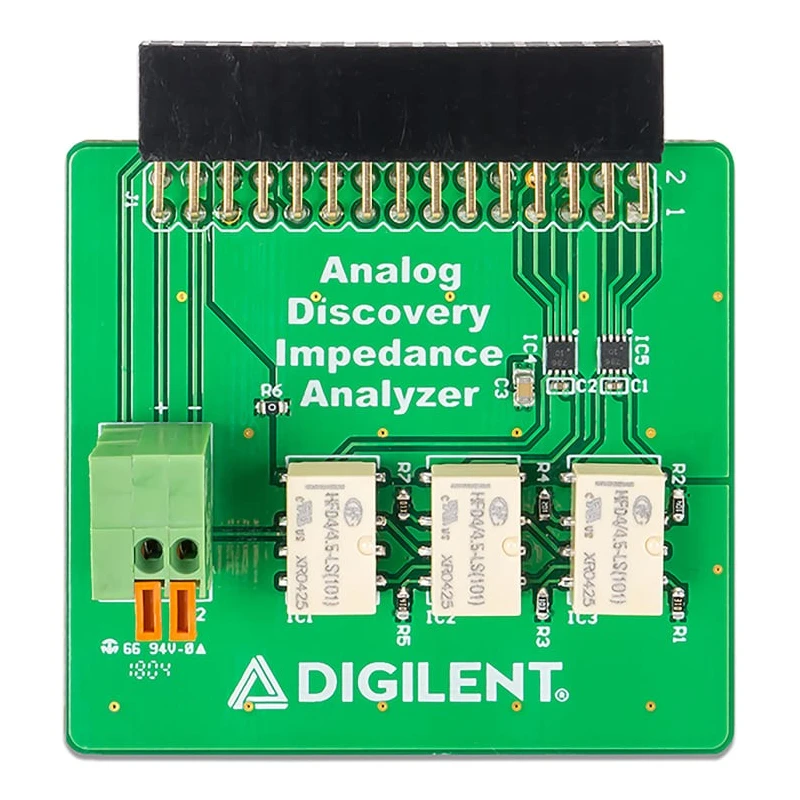

Digilent Impedance Analyzer Accessory for Analogue Discovery 410-378
Specifications
| Country of Origin | India |
|---|---|
| Brand | Digilent |
| Model | 410-378 |
| For Use With | Analogue Discovery |
| Kit Classification | Accessory |
| Kit Name | Impedance Analyzer |
Key Features
- The accessory is compatible with Analogue Discovery 2 and Analogue Discovery Legacy devices.
- Features 2-wire impedance analysis that works seamlessly with the WaveForms software tool.
- Measures capacitance in a range from 50pF to 500μF accurately.
- Inductance measurement range spans from 10μH to 1000mH.
- Supports an excitation frequency range of 1Hz to 15MHz for versatile applications.
- Includes automatically adjusting reference resistors and relays to aid impedance measurement.
- Designed as a compact development kit accessory for electronic component testing.
- Does not require any specific standards or approvals for use.
Product Description
Digilent 410-378 Impedance Analyzer Accessory is a specialized development kit designed to enhance the capabilities of Analogue Discovery devices, including Analogue Discovery 2 and Legacy versions. This accessory facilitates precise impedance measurements by automatically adjusting reference resistors and relays, optimizing the configuration for the unknown impedance connected.
It interfaces with the Impedance Analyzer tool in WaveForms software, enabling seamless 2-wire impedance analysis with robust accuracy. Capacitance can be measured within the range of 50pF to 500μF, while inductance measurement spans from 10μH up to 1000mH, allowing a wide range of component evaluations.
The excitation frequency supported ranges from 1Hz to 15MHz, making it suitable for various testing scenarios in electronic development and educational environments. This accessory uses a 2x15 analogue Discovery connector which ensures compatibility across Analogue Discovery devices.
The kit classification is Accessory, tailored for engineers and hobbyists working with analogue development tools. It does not carry any specific standards or certifications but is recognized for its integration and ease of use within the Digilent ecosystem.
Industrial applications include electronics prototyping, laboratory testing, STEM education, and embedded systems development. This compact tool allows detailed component analysis, which is critical in design validation and troubleshooting.
The Impedance Analyzer accessory is compatible with Analogue Discovery 2 and Legacy devices. Integrates with WaveForms software for accurate 2-wire impedance measurement. Capacitance measurement range: 50pF to 500μF. Inductance measurement range: 10μH to 1000mH.
Excitation frequency range from 1Hz to 15MHz. Includes automatic reference resistor adjustment and relays for optimization. Designed as a development kit Accessory for analogue testing. No specific industry standards or approvals are required.
Explore a wide selection of analogue development tools and accessories on EnvMart for your electronics and STEM instrumentation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance measurement range of this model is from 50pF to 500μF.
It measures inductance in the range of 10μH to 1000mH.
The excitation frequency range supported is from 1Hz to 15MHz.
This accessory is compatible with the Analogue Discovery 2 and Analogue Discovery Legacy devices.
It includes automatically adjusting reference resistors and relays to aid in optimizing impedance measurement.
It integrates with the WaveForms software tool for accurate 2-wire impedance analysis.
The classification of this accessory is as a development kit accessory designed for analogue testing.
The country of origin for this model is India.
It is used in applications such as electronics prototyping, laboratory testing, STEM education, and embedded systems development.
It uses a 2x15 analogue Discovery connector to ensure compatibility across Analogue Discovery devices.
No, it does not require any specific industry standards or approvals for use.
It features seamless integration with WaveForms software and automatic adjustments for reference resistors, enhancing usability for precise measurements.
