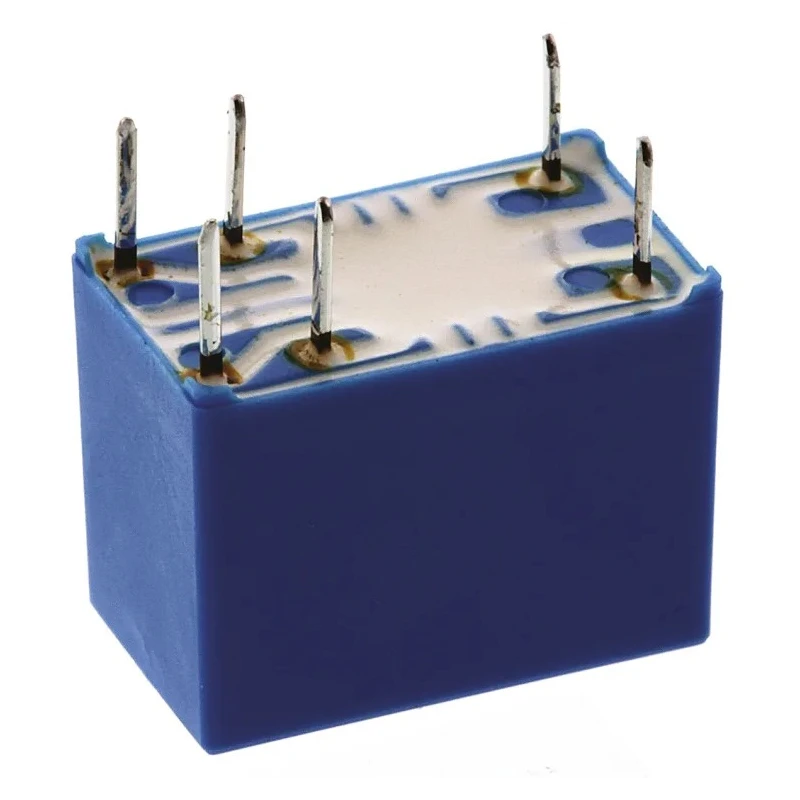

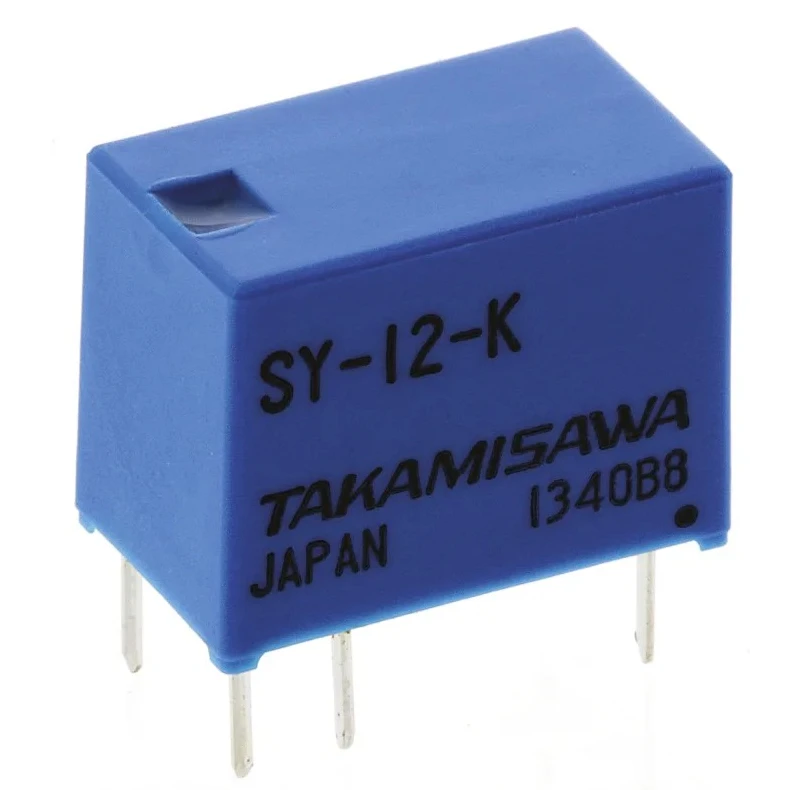

Fujitsu Signal Relay 12V DC Coil 1A SPDT SY-12-K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Fujitsu |
| Height | 9.5mm |
| Length | 12.5mm |
| Model | SY-12-K |
| Contact Material | Gold Plated |
| Series | SY |
| Maximum Operating Temperature | 90°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Switching Current | 1A |
| Terminal type | Through Hole |
| Coil Resistance | 960Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 60V ac |
| Coil Power | 150mW |
| Fujitsu Through Hole Signal Relay, 12V dc Coil, 2A Switching Current, DPDTBrand | Fujitsu |
Key Features
- Operates with a coil voltage of 12V DC ensuring efficient switching.
- Contact configuration is Single Pole Double Throw (SPDT) for flexible circuit control.
- Switching current rated at 1A for moderate load operations.
- Capable of switching AC and DC voltages up to 60V.
- Compact design with overall length of 12.5mm and height of 9.5mm.
- Gold plated contact material improves conductivity and resistance to corrosion.
- Designed to operate within temperature range of -30°C to 90°C for durability in various environments.
- Through-hole terminal type supports stable PCB mounting.
Product Description
Fujitsu SY-12-K is a miniature signal relay designed with a 12V DC coil and rated for a switching current of 1A, featuring a Single Pole Double Throw (SPDT) contact configuration. It is ideal for electronic circuit switching applications that require reliable performance and compact size.
This relay supports switching AC and DC voltages up to 60V and operates efficiently with a low coil power consumption of 150mW. Its gold plated contacts ensure enhanced conductivity and longevity, while the 960Ω coil resistance maintains optimal coil characteristics.
Measuring 12.5mm in length and 9.5mm in height, the SY-12-K fits compact PCB designs with through-hole terminals for secure installation. It can operate reliably within an environmental temperature range from -30°C to 90°C, making it suitable for diverse industrial, automation, and control system environments.
The SY series is known for its sealed plastic cover offering protection against contaminants and ensuring durable operation over prolonged use in industrial and electrical applications. This relay is commonly used in automation, instrumentation, control systems, and other electronic circuit switching roles where dependable signal relay performance is required.
Operates with coil voltage of 12V DC for energy-efficient switching. SPDT contact configuration allows versatile use in circuit designs. 1A rated switching current supports moderate load capacity. Gold plated contact material enhances electrical conductivity and lifespan.
Sealed plastic cover protects internal components from dust and debris. Operates within -30°C to 90°C temperature range, suitable for harsh environments. Through-hole PCB terminal type enables sturdy mounting and connections.
Low coil power consumption reduces overall system power usage. Compact size supports space-saving circuit assembly and design. Compatible with various industrial, laboratory, and automation applications.
This product is part of Fujitsu's SY series miniature relays known for quality and reliability. It is ideal for industrial and electrical engineering uses including automation, electrical control, and signal conditioning.
Explore more Signal Relays and electrical components in the Electronics & Electricals category at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a coil voltage of 12V DC, ensuring efficient switching for various applications.
The SY-12-K has a rated switching current of 1A, suitable for moderate load operations.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for flexible circuit control.
This relay is capable of switching AC and DC voltages up to 60V.
The coil resistance is 960Ω, which helps maintain optimal coil characteristics during operation.
It operates reliably within a temperature range of -30°C to 90°C, making it suitable for various environments.
This model measures 12.5mm in length and 9.5mm in height, allowing for compact PCB designs.
The SY-12-K features through-hole terminals, which support stable PCB mounting for secure installation.
The coil power consumption is 150mW, contributing to overall energy efficiency in circuit designs.
The contacts are made of gold plated material, which enhances conductivity and resistance to corrosion.
This relay is manufactured in India.
It is commonly used in automation, instrumentation, control systems, and other electronic circuit switching roles.
