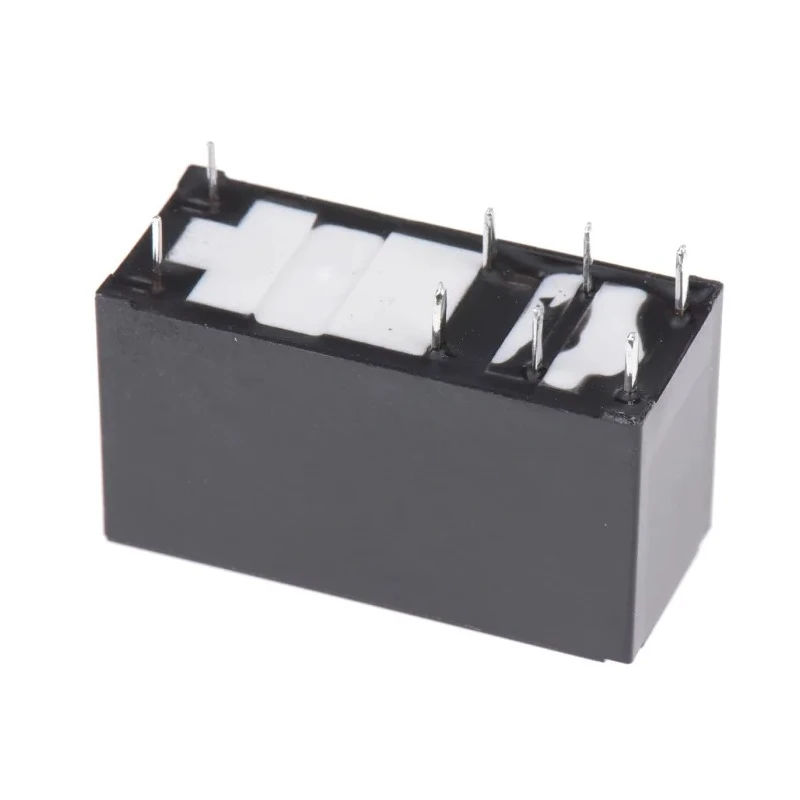

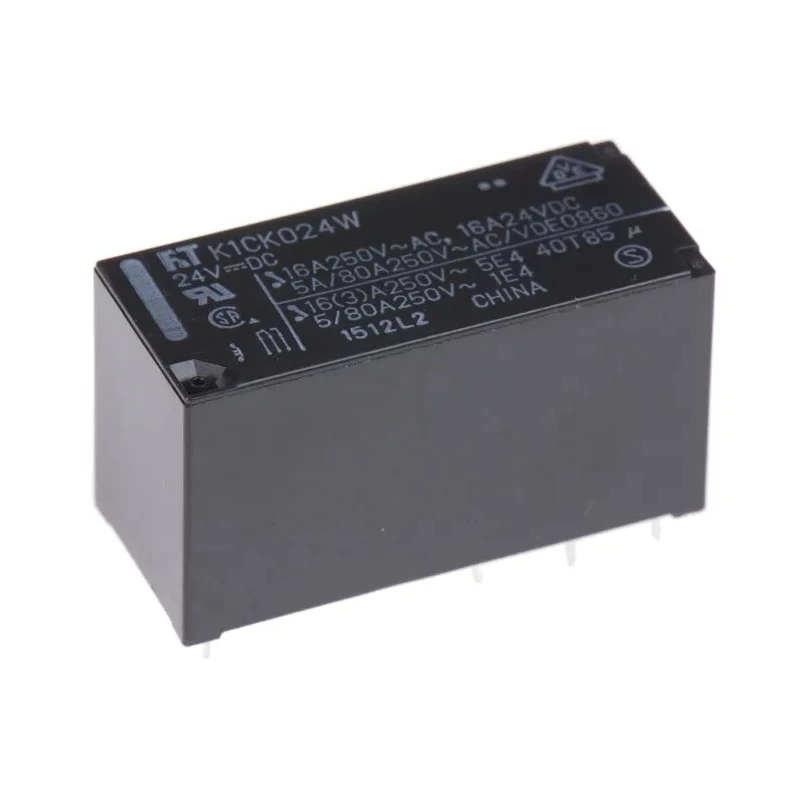

Fujitsu Power Relay PCB Mount SPDT 24V DC Coil 16A Switching Current FTR-K1CK024W
Specifications
| Country of Origin | China |
|---|---|
| Brand | Fujitsu |
| Height | 15.7mm |
| Length | 29mm |
| Model | FTR-K1CK024W |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | FTR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | VDE, UL, CSA |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 300V ac |
| Coil Power | 400mW |
| Switching Power | 384W |
Key Features
- The relay features a Single Pole Double Throw (SPDT) contact configuration for versatile switching applications.
- It operates at a coil voltage of 24V DC with a coil resistance of 1.4 kΩ and coil power of 400 mW.
- Designed for switching currents up to 16 amperes and a switching power of 384 watts.
- Supports switching AC and DC voltages up to 300V, ideal for diverse electronic circuits.
- Compact dimensions with length 29 mm, width 12.7 mm, and height 15.7 mm to fit PCB layouts.
- Contact material is gold-plated silver alloy to ensure durability and low contact resistance of 100 mΩ.
- Operating temperature range from -40°C to 85°C for reliable performance under harsh conditions.
- Certification and standards compliance include VDE, UL, and CSA, assuring safety and quality.
Product Description
Fujitsu FTR-K1CK024W is a highly reliable power relay designed for PCB mounting applications, featuring a 24V DC coil and 16A switching current capacity suitable for industrial and commercial electronic control systems.
This SPDT relay from the FTR-K1 series utilizes gold-plated silver alloy contacts to provide superior conductivity and reduce contact wear, enhancing relay lifespan and performance.
Its coil is rated at 24 volts DC with a coil resistance of 1.4 kΩ and power consumption of 400 mW, making it efficient for low power switching circuits. The relay supports AC and DC switching voltages up to 300V, with a maximum switching power of 384 watts, accommodating diverse power and signal control requirements.
Compact and robust, this relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, fitting most standard PCB layouts without occupying excessive space.
It operates reliably within a broad temperature range from -40°C to 85°C, ensuring stable operation in demanding industrial environments, including automation, HVAC controls, and instrumentation.
The relay features SPDT contact configuration enabling flexible circuit designs and switching versatility. Gold-plated silver alloy contacts assure low resistance and high durability under electrical stress. Its mounting type is PCB with PCB pin terminals for secure installation and ease of replacement.
Conforms to international safety standards such as VDE, UL, and CSA, confirming compliance for global applications. Ideal for use in electrical automation, industrial machinery, instrumentation, and various control system designs.
The FTR-K1CK024W power relay combines compact size, high electrical performance, and certified safety features, making it a dependable choice for engineers and designers seeking quality PCB relay solutions.
Explore EnvMart’s extensive range of Power Relays and components to complete your automation and electrical control projects with confidence.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 16 amperes, suitable for various electronic control applications.
This model operates at a coil voltage of 24V DC with a coil power consumption of 400 mW.
The relay measures 29 mm in length, 12.7 mm in width, and 15.7 mm in height, making it compact for PCB layouts.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
The relay supports switching AC and DC voltages up to 300V, accommodating various power requirements.
The contact material is gold-plated silver alloy, which ensures low contact resistance and enhances durability.
It operates reliably within a temperature range from -40°C to 85°C, suitable for harsh environments.
This relay conforms to international safety standards including VDE, UL, and CSA, ensuring compliance for global applications.
It is designed for PCB mounting with PCB pin terminals for secure installation and ease of replacement.
The contact resistance is rated at 100 mΩ, which helps in maintaining efficient electrical performance.
The coil resistance is 1.4 kΩ, which is essential for its operational efficiency in low power switching circuits.
It is suitable for use in electrical automation, industrial machinery, instrumentation, and various control system designs.
