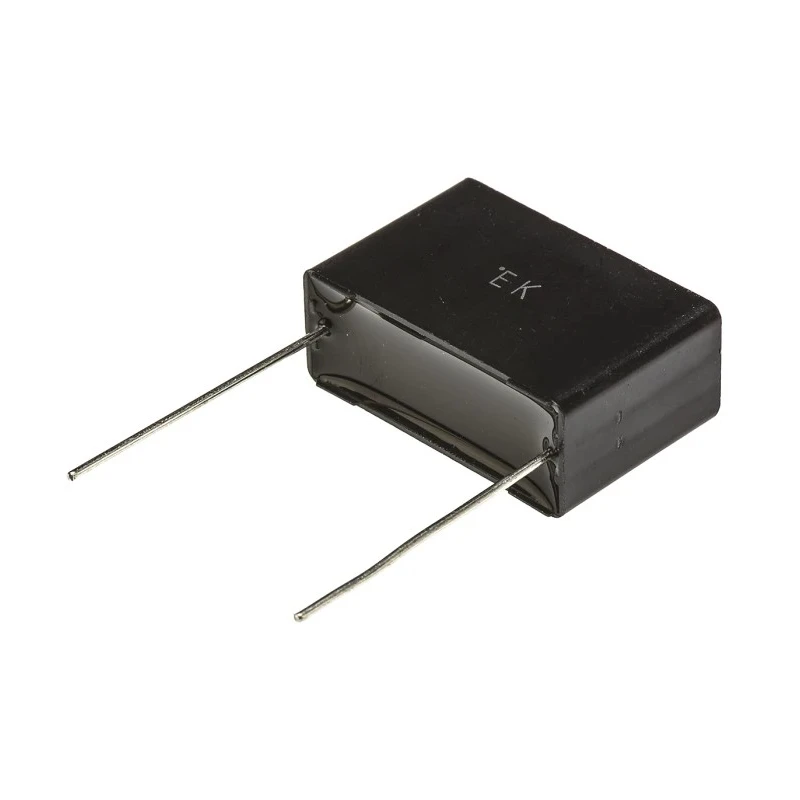

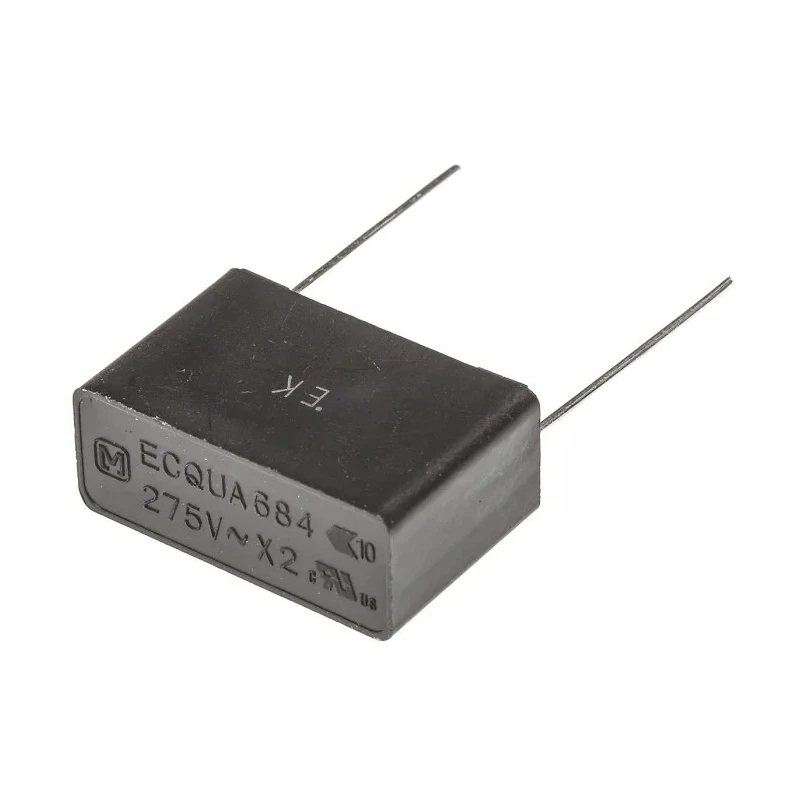

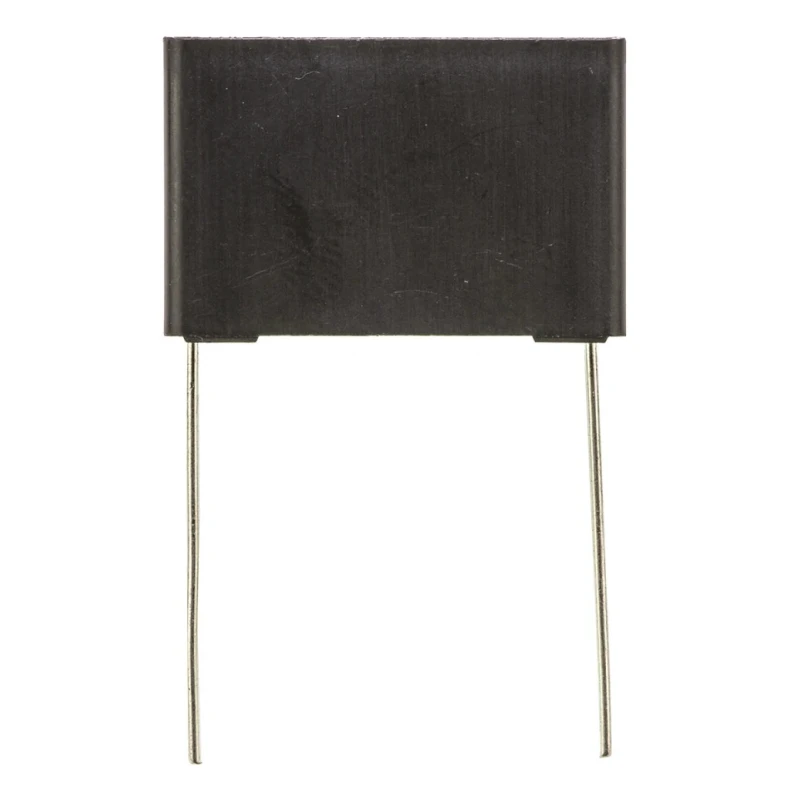

Panasonic ECQUA Film Capacitor X2 680 nF 275V AC Through Hole ECQUAAF684K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 17mm |
| Length | 26mm |
| Model | ECQUAAF684K |
| Packaging | Bag |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | ECQUA |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±10 % |
| Capacitance | 680nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Dissipation Factor | 0.2% |
| Rated AC Voltage | 275V ac |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
Key Features
- Capacitance of 680 nF ensures effective filtering and suppression.
- Rated AC voltage of 275V with a tolerance of ±10% for versatile applications.
- Constructed with flame retardant plastic housing and non-combustible resin for safety.
- Mounted using through hole technique with 22.5 mm lead pitch and 20 mm lead length.
- Suitable for operating temperatures from -40°C to 110°C, meeting automotive standard AEC-Q200.
- Dissipation factor is low at 0.2% ensuring efficient performance.
- Compact dimensions with 26 mm length, 17 mm height, and 10 mm width.
- Complies with IEC, EN, UL, CSA safety standards including CSA E60384-14, EN 60384-14, UL 60384-14.
Product Description
Panasonic ECQUAAF684K is a Film Capacitor from the ECQUA Series, designed to provide high safety and interference suppression for electronic circuits. This capacitor features a capacitance of 680 nF with a ±10% tolerance and is rated for 275V AC operation, ensuring stable performance in demanding environments.
The device is equipped with a flame retardant plastic housing and non-combustible resin, complying with international safety standards IEC60384-14, EN60384-14, UL60384-14, and CSA E60384-14. It carries the X2 suppression class rating, making it suitable for direct connection across mains supplies while ensuring safety mechanisms are in place.
The through hole mount type with a lead pitch of 22.5 mm and lead diameter of 0.8 mm allows for reliable PCB installation. Its operating temperature range spans from -40°C to 110°C and meets the automotive standard AEC-Q200, making it versatile for automotive and industrial applications.
Capacitance of 680 nF ensures effective filtering and interference suppression. Rated at 275V AC with ±10% tolerance for precise operation. Flame retardant and non-combustible housing for enhanced safety. Approved by UL, CSA, and VDE meeting global safety standards.
Compact size with dimensions: 26 mm length, 17 mm height, and 10 mm width. Low dissipation factor of 0.2% for energy efficient performance. Suitable for automotive and industrial electronic applications. Through hole mounting with 22.5 mm lead pitch simplifies PCB assembly.
This Panasonic ECQUA film capacitor is highly recommended for use in interference suppressors in electrical, electronic, automotive, and industrial control systems. Available in bag packaging for ease of handling and storage.
Explore more Film Capacitors and electrical components at EnvMart to find solutions suited for diverse industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 680 nF with a tolerance of ±10%.
It is rated for an AC voltage of 275V.
This capacitor has dimensions of 26 mm in length, 17 mm in height, and 10 mm in width.
The operating temperature range is from -40°C to 110°C.
The dissipation factor is low at 0.2%.
It uses a through hole mounting technique with a lead pitch of 22.5 mm.
It complies with IEC60384-14, EN60384-14, UL60384-14, and CSA E60384-14 safety standards.
This model meets the automotive standard AEC-Q200.
The lead diameter is 0.8 mm.
It is constructed with a flame retardant plastic housing and non-combustible resin for safety.
It is suitable for automotive and industrial electronic applications, particularly in interference suppression.
The capacitor is available in bag packaging for ease of handling and storage.
