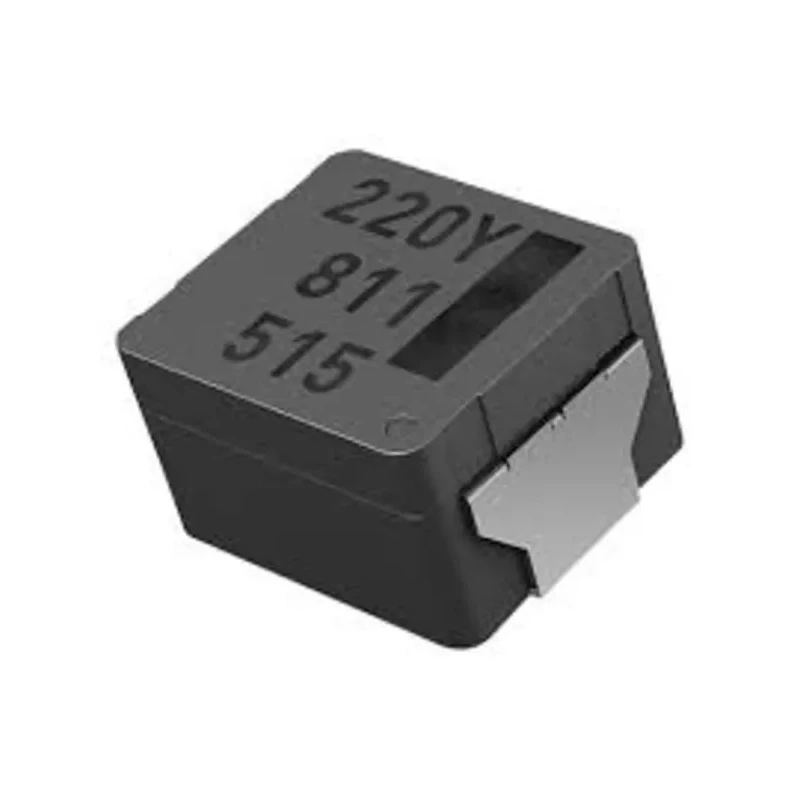

Panasonic Shielded Power Choke Coil with Metal Composite Core 14 μH ±20 %, 11.2 A Idc ETQP6M

Panasonic ETQP6M shielded power choke coil incorporates a metal composite core and provides an inductance of 14 μH with a tolerance of ±20 %. It is designed for high reliability in automotive and industrial electronics, featuring a maximum DC current rating of 11.2 A and low DC resistance of 30.8 mΩ to minimize power loss.

This surface mount device uses wirewound construction and is packaged in tape and reel form for efficient assembly processes. It complies with automotive standard AEC-Q200 ensuring robustness against vibration and thermal stresses up to 150°C.

The shielded construction minimizes electromagnetic interference and reduces audible buzz noise, enhancing performance in sensitive power management circuits. The compact footprint of 10.9 mm length, 6 mm height, and 6 mm depth aids in space-constrained PCB layouts.

Metal composite core ensures superior inductance stability and low losses. High heat resistance including self-heating effects up to 150°C operation. Designed for automotive-grade applications supporting strict reliability standards.

Wirewound, molded construction for mechanical robustness. Shielded to reduce EMI and noise in critical power circuits. Complies with RoHS requirements for environmental safety. Suitable for industrial, automotive, power supply, and electronic manufacturing sectors.

Panasonic's ETQP6M series coils offer an excellent balance of electrical performance and mechanical durability, ideal for applications requiring stable power inductors under harsh conditions. Find this power choke coil and related inductors in the EnvMart industrial electronics catalog to support your designs requiring automotive-rated surface mount inductors.
