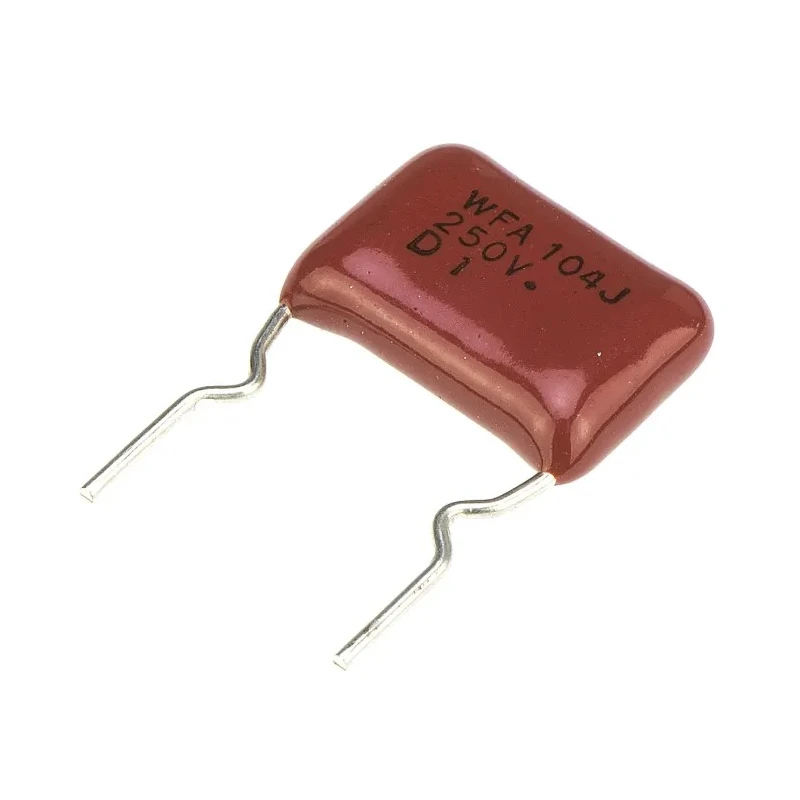

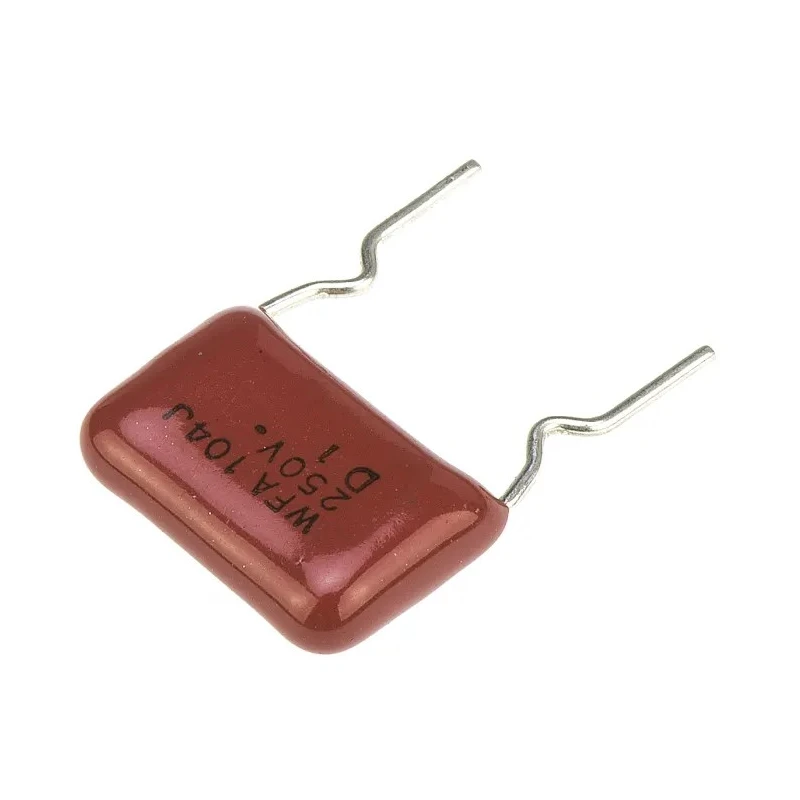

Panasonic ECWF(A) Film Capacitor ±5 % Tolerance 100 nF 250 V dc Through Hole ECWF2104JAQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 18.6mm |
| Length | 13mm |
| Model | ECWF2104JAQ |
| Packaging | Bag |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | ECWF(A) |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Dissipation Factor | 0.1% |
| Rated DC Voltage | 250V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
Key Features
- This capacitor operates reliably between -40°C and 105°C.
- It is part of the ECWF(A) series, featuring metallised polypropylene film technology.
- Its compact size is 18.6 mm height, 13 mm length, and 5 mm width.
- Designed to meet automotive standard AEC-Q200 for durability and performance.
- Features low dissipation factor of 0.1 % ensuring high efficiency.
- The capacitor is encapsulated with a self-extinguishing material compliant with UL94V-0 safety standards.
- Lead pitch of 10 mm and 0.6 mm lead diameter facilitates secure through-hole mounting.
- Offers excellent frequency characteristics and low noise for active filter and high current circuits.
Product Description
Panasonic ECWF2104JAQ is a high-quality ECWF(A) series film capacitor designed for demanding electronic applications requiring high current and high frequency operation. This through-hole capacitor features a capacitance of 100 nF with a tolerance of ±5 %, rated for 250 V dc, making it suitable for robust and precision circuits.
Constructed using metallised polypropylene film, these capacitors deliver low loss and low hum noise, beneficial in audio, power, and filter circuitry. The compact form factor measures 18.6 mm in height, 13 mm in length, and 5 mm in width, with a lead pitch of 10 mm and lead diameter of 0.6 mm, ensuring easy through-hole PCB mountings.
Designed with compliance for automotive quality standard AEC-Q200 and UL94V-0 self-extinguishing encapsulation, it is reliable for industrial, automotive, and high-performance electronics environments. Its operating temperature range spans from -40°C up to 105°C.
Compact metallised polypropylene Film Capacitor. Rated 250 V dc with ±5 % tolerance. Low dissipation factor of 0.1 % for energy efficiency. Designed for high current and high frequency circuits. Complies with automotive and safety standards.
Through-hole mount with 10 mm lead pitch. Encapsulated with UL94V-0 rated self-extinguishing material. Ideal for active filter circuits and electronic applications requiring noise reduction. This Panasonic ECWF2104JAQ capacitor is suitable for industrial automation, automotive electronics, power supply filters, and precision electronic equipment manufacturing.
Explore the Electronics Components category on EnvMart for a wide range of capacitors and electronic parts from top manufacturers like Panasonic.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ECWF2104JAQ capacitor has a capacitance value of 100 nF.
This model is rated for a DC voltage of 250 V.
It operates reliably between -40°C and 105°C.
The tolerance of this capacitor is ±5 %.
This capacitor is designed for through-hole mounting.
The dimensions are 18.6 mm in height, 13 mm in length, and 5 mm in width.
The lead pitch is 10 mm and the lead diameter is 0.6 mm.
It is encapsulated with a self-extinguishing material that complies with UL94V-0 safety standards.
This capacitor complies with the automotive standard AEC-Q200.
The dissipation factor is 0.1 %.
It is suitable for industrial automation, automotive electronics, power supply filters, and precision electronic equipment manufacturing.
This model features metallised polypropylene film technology, which provides low loss and low hum noise.
