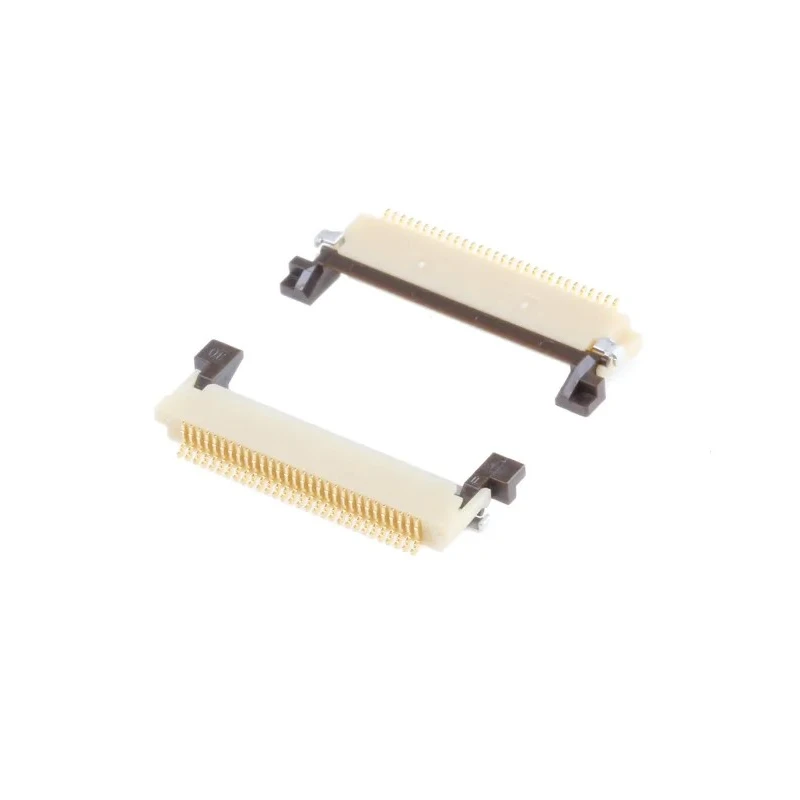

Hirose FPC Connector FH12 0.5 mm Pitch 30 Way Right Angle Female, Surface Mount, Solder Termination

Hirose FH12 series FPC Connector FH12A-30S-0.5SH(55) is a 0.5 mm pitch, 30 way, right angle female connector designed for surface mount applications with solder termination. The series features a one-touch rotating Zero Insertion Force (ZIF) actuator which facilitates easy operation and secure mating with a tactile click confirmation, ensuring reliable connections in compact PCB layouts.

The connector employs phosphor bronze contacts plated with gold to provide outstanding electrical performance and corrosion resistance. Its polyamide housing offers robustness and electrical insulation, making it suitable for a wide variety of electronic devices. This connector supports a voltage of 50V AC and a current of 500mA, operating safely across a temperature range of -40°C to 70°C.

Its right angle orientation with top contact position allows for efficient use of PCB space, enabling high-density mounting important for modern small and portable electronics. The locking mechanism adds mechanical security to prevent accidental disconnections during usage or handling.

Typical applications include mobile phones, GPS systems, notebook computers, data terminals, LCD televisions, digital cameras, and other handheld electronic devices requiring reliable flexible printed circuit (FPC) or flexible flat cable (FFC) connections.

One-touch rotating ZIF actuator for effortless cable insertion and removal. Tactile feedback ensures secure mating confirmation. Compact design supports high-density PCB layouts saving space. Durable polyamide housing for robust mechanical protection.

Corrosion-resistant gold-plated contacts ensure reliable electrical performance. Wide operating temperature range (-40°C to 70°C) for various environments. Locking mechanism provides secure connection stability. Ideal for multiple electronic device applications.

Made in Japan ensuring high manufacturing quality standards. Explore a wide range of Hirose connectors at EnvMart for your electronic component needs and ensure quality and precision in your PCB designs.
