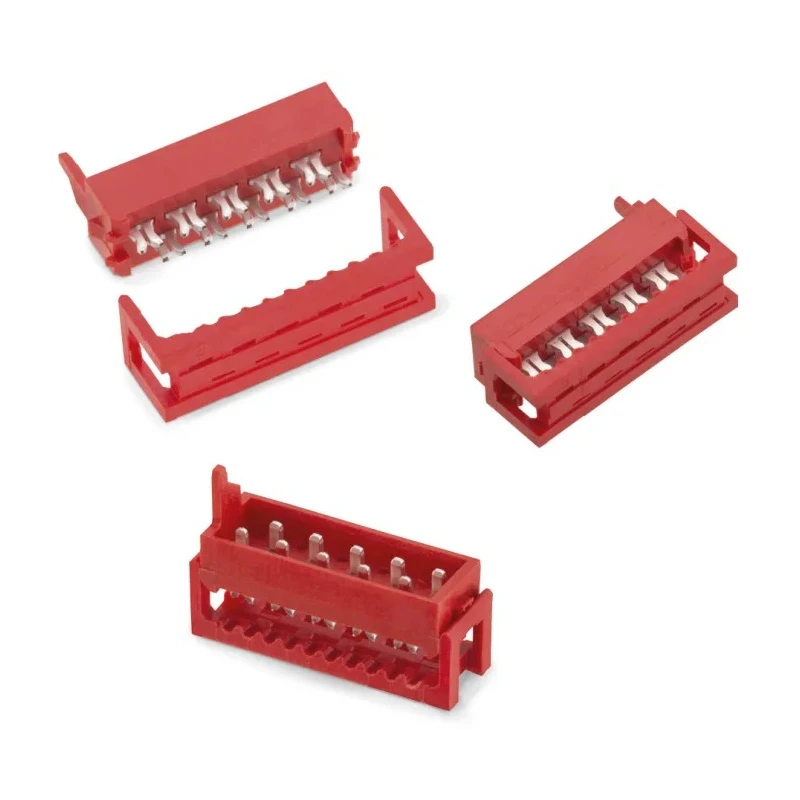

Wurth Elektronik 24-Way IDC Connector Male for Cable, 2 Row 690157002472

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 24-Way IDC Connector Male for Cable, 2 Row 690157002472

Name: Wurth Elektronik 24-Way IDC Connector Male for Cable, 2 Row 690157002472
Brand: Wurth Elektronik
SKU: 218268
Price: 2.25 USD
Availability: InStock



Category IDC Connector Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Voltage	500V ac
Brand	Wurth Elektronik
Orientation	Straight
Current	1A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	WR-MM
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin over Nickel
Number of Contacts	24
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Features 24 contacts in a 2-row configuration for efficient connectivity.
Rated for 1A current and 500V AC voltage ensuring stable operation.
Constructed with phosphor bronze contacts and tin over nickel plating for durability.
Housing made of polybutylene terephthalate offering robust insulation.
Shrouded, straight orientation for secure and precise mating with connectors.
Supports operating temperatures from -40°C to 105°C for diverse environments.
Designed with IDC termination type for easy and reliable cable connection.
Mount type is cable ensuring flexible application compatibility.

Product Description

Wurth Elektronik 690157002472 24-Way IDC Connector Male for Cable, 2 Row is a high-quality IDC Connector designed for cable applications requiring reliable electrical connections. It features 24 contacts arranged in a two-row format, providing an organized and compact interface suitable for various industrial and electronic wiring needs.

The connector operates safely within a current rating of 1 Ampere and withstands up to 500V AC voltage, ensuring safety and functionality in moderate power applications. The use of phosphor bronze for contact material combined with tin over nickel plating guarantees long-lasting conductivity and corrosion resistance.

Polybutylene terephthalate housing provides sturdy insulation and mechanical strength without sacrificing compactness. This shrouded male connector with a straight orientation ensures secure and precise mating with counterparts, reducing connection errors. The IDC termination offers quick and reliable cable termination without soldering, simplifying the assembly process.

Operating temperature ranges from -40°C to 105°C allowing use in demanding indoor and outdoor environments such as industrial, automation, and electronic systems. The connector belongs to the WR-MM series, reflecting compliance with established quality standards.

Note that the solder profile must comply with Wurth Elektronik's technical soldering specifications to preserve warranty validity. Washing or aggressive cleaning processes should be avoided as they can damage the component functionality. Use compatible, non-corrosive cleaning agents to maintain performance integrity.

Features 24 contacts in two rows for organized connections. Supports 1A current and 500V AC voltage rating. Phosphor bronze contacts with tin over nickel plating for durability. Polybutylene terephthalate housing for robust insulation.

Shrouded male connector with straight orientation. IDC termination type for easy cable connection. Compatible with WR-MM series standards. Operating temperature range from -40°C to 105°C. Handle carefully; avoid washing and aggressive cleaning.

Suitable for industrial, electronic, and automation use cases. Explore more electronic connectors and components at EnvMart to support your design and manufacturing requirements with reliable quality Wurth Elektronik products.
