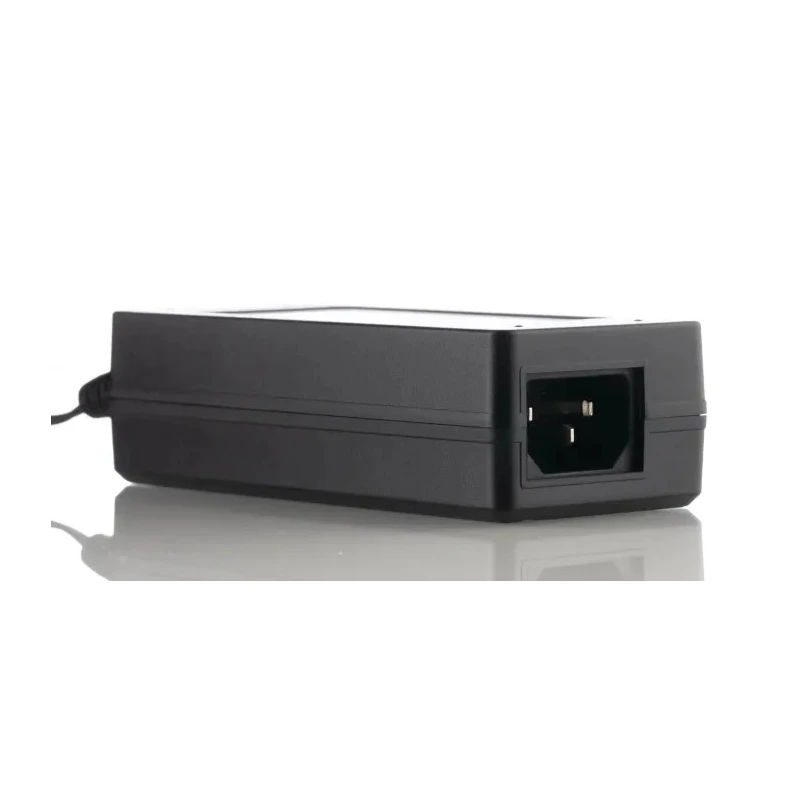

RS PRO 24V DC 60W Centre Positive Switched Mode Power Supply AC/DC Adapter with C14 Plug 188-781

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 24V DC 60W Centre Positive Switched Mode Power Supply AC/DC Adapter with C14 Plug 188-781

Name: RS PRO 24V DC 60W Centre Positive Switched Mode Power Supply AC/DC Adapter with C14 Plug 188-781
Brand: RS PRO
SKU: 148065



Category AC/DC Adapter Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Power	60W
Efficiency	87%
Length	116.3mm
Model	188-781
Depth	31.7mm
Cable Length	1000mm
Width	51mm
Series	RS PRO
Maximum Operating Temperature	40°C
Sub Type	Switched Mode Power Supply
Load Regulation	±3 %
Minimum Operating Temperature	0°C
Plug Type	C14
Number of outputs	1
Maximum Input Voltage	240V ac
Output Voltage	24V dc
Standards/Approvals	CE
Minimum Input Voltage	90V ac
Output Connector Type	2.1 x 5.5 x 11 mm Centre Positive
Input Connector Type	IEC 320-C14
Adapter Current	2.5A
Energy Efficiency Level	V
Mascot AC/DC AdapterBrand	Mascot
Phihong AC/DC AdapterBrand	Phihong
UL60950, UL6500, TUV	EN60950, EN60065 approved
OEP 2 Output DIN Connector AC/DC Adapter 25 W 24V dc Output, 2.5 ABrand	OEP

Key Features

Outputs 24V DC at 2.5A with a power rating of 60W providing stable regulated voltage.

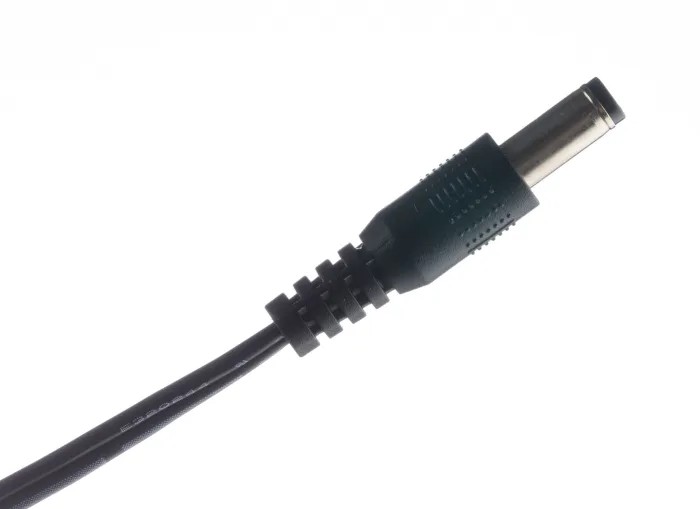

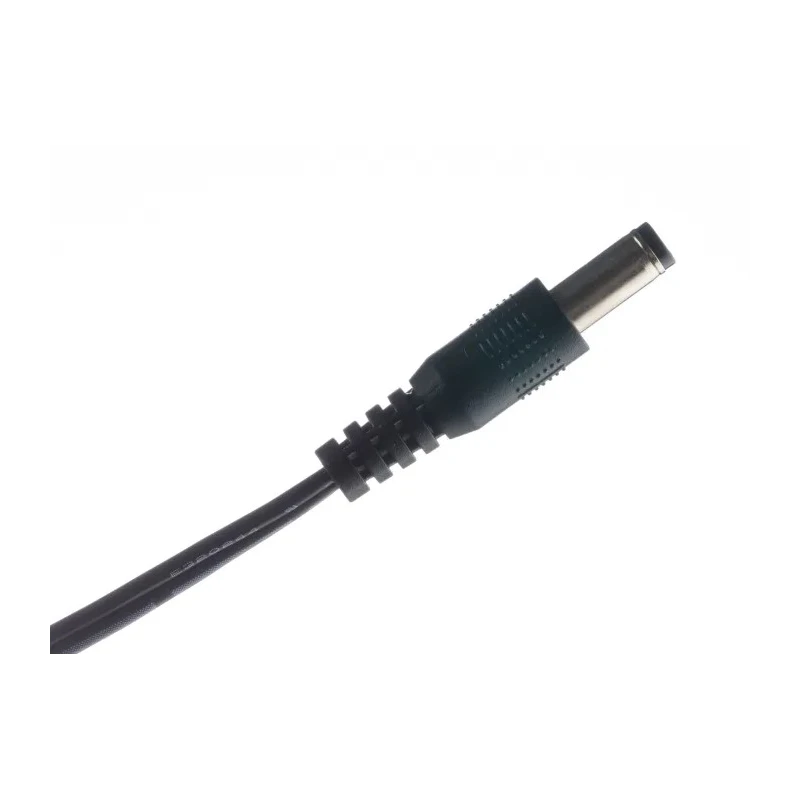

Features a centre positive 2.1 x 5.5 x 11 mm output connector suitable for laptops and similar devices.

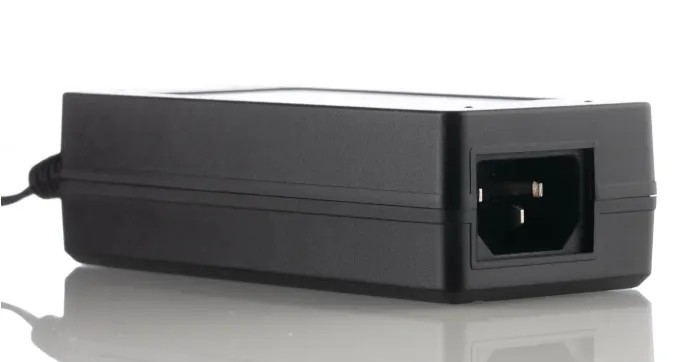

Equipped with a C14 IEC 320 input plug supporting input voltages from 90V to 240V AC.
Compact dimensions of 116.3mm length, 51mm width, and 31.7mm depth for desktop use.
Includes various protections such as short circuit, overload, over voltage, and over temperature.
High efficiency at 87% and energy efficiency level V compliant.
Operating temperature range from 0°C to 40°C ensuring suitability in typical indoor environments.
LED power on indicator for clear operational status monitoring.

Product Description

RS PRO 188-781 is a 60W switched mode desktop power supply providing a single 24V DC output at 2.5 amperes, designed for industrial and electronic device powering needs. It delivers a fully regulated voltage output and is ideal for laptops, netbooks, notebooks, and other devices requiring a centre positive 2.1 x 5.5 x 11 mm connector.

This power supply features a C14 IEC 320 input connector compatible with input voltages ranging from 90V to 240V AC, making it versatile across global mains voltages. It operates efficiently with an 87% energy conversion rate and complies with the V class energy efficiency standards.

Designed with multiple safety features, it includes over voltage, overload, short circuit, and over temperature protections to ensure durability and safe usage in industrial, laboratory, commercial, and office environments. The unit has a compact desktop form factor with dimensions of 116.3mm x 51mm x 31.7mm, facilitating convenient integration into workspaces.

It also incorporates harmonic current compliance to EN 61000-3-2 and EMC compliance to EN 55022 class B, ensuring minimal electromagnetic interference with other equipment. The LED indicator provides clear power status.

This power supply is certified with CE marking and safety approvals from UL and TUV standards covering UL60950, UL6500, and TUV EN60950 and EN60065, evidencing its high reliability and adherence to international safety regulations.

Outputs 24V DC at 2.5A with 60W power rating. C14 IEC 320 AC input plug compatible with 90V to 240V mains voltage. Centre positive 2.1 x 5.5 x 11 mm output connector. Over voltage, short circuit, overload and over temperature protection.

87% efficiency and energy efficiency level V compliance. LED power on indicator for operational status. Compact desktop dimensions suitable for industrial and commercial use. Harmonic current and EMC compliance to EN standards.

Certified to CE, UL, and TUV safety standards.

This RS PRO AC/DC Adapter is an ideal solution for powering a wide range of electronic equipment in diverse settings, including industrial machines, laboratories, HVAC systems, and commercial devices. Browse EnvMart's extensive range of power supplies and adapters for compatible and complementary components.
