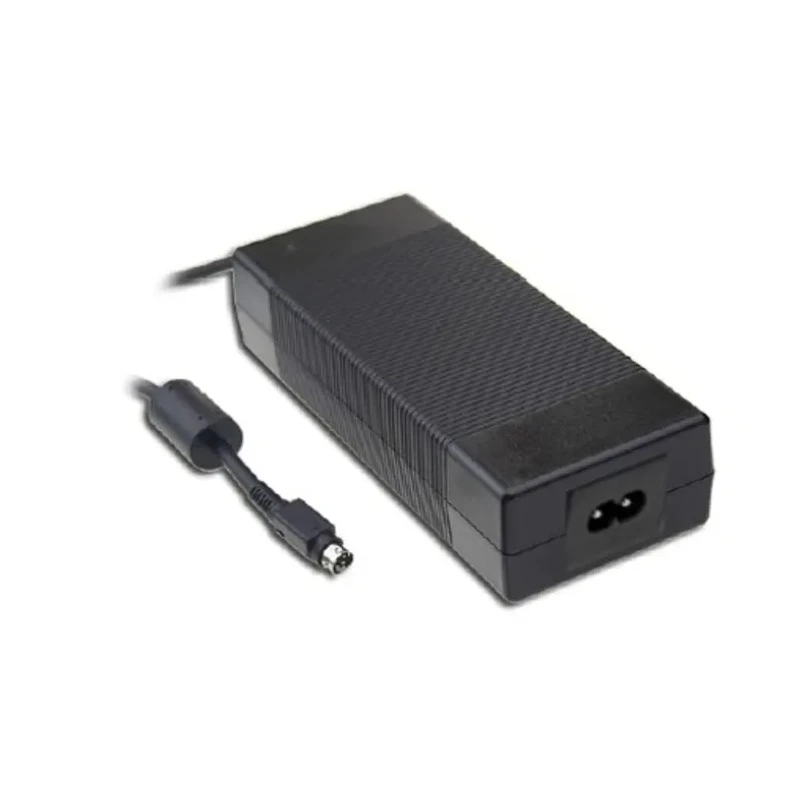

MEAN WELL 264V AC Input 12V DC Output 15A Medical Grade AC/DC Adapter GSM220B12-R7B
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | GSM220B12-R7B |
| Cable Length | 1000mm |
| Overall Length | 210mm |
| Series | GSM220B |
| Overall Width | 72mm |
| Maximum Operating Temperature | 70°C |
| Maximum Input Voltage | 264V ac |
| Maximum Output Current | 15A |
| Standards/Approvals | UL 60950-1, CE, IEC 60950-1 |
| Minimum Input Voltage | 80V ac |
| Overall Depth | 35mm |
| Minimum Output Voltage | 12V dc |
| Input Connector Type | IEC 320-C8 |
| Better World Verification | UL Energy Verified |
Key Features
- Medical safety approved for reliable performance and safety.
- High efficiency up to 94.5% with active power factor correction.
- Fanless design enables quiet operation and wide temperature range.
- Compact desktop style with IEC320-C8 3-pole AC inlet.
- Multiple built-in protections including short circuit and overload safeguards.
- Suitable for medical and clinical applications including portable devices.
- LED power status indication for easy operational monitoring.
- Complies with UL 60950-1, CE and IEC 60950-1 standards.
Product Description
MEAN WELL GSM220B12-R7B is a medical grade desktop AC/DC power supply delivering 12V DC output at 15A maximum current from a wide AC input voltage range of 80V to 264V. The unit is designed for high reliability and efficiency in various industrial and medical applications.
This adapter features a compact desktop style with an IEC320-C8 3-pole AC inlet. It is highly efficient with up to 94.5% efficiency and incorporates active power factor correction to reduce energy consumption and improve power quality. The design includes a fanless cooling system supporting a wide operating temperature range up to 70°C, ensuring silent operation.
Constructed with a fully enclosed casing meeting 94V-0 flame retardant standards, this power supply is equipped with multiple standard protections such as short circuit, overload, over voltage, and over temperature protections, providing safety and robust performance in critical environments.
Medical safety approvals and compliance with UL 60950-1, CE, and IEC 60950-1 standards make it suitable for use in medical devices including mobile clinical workspaces, breath machines, medical computer monitors, oral irrigators, and portable hemodialysis machines. The adapter actively indicates power status via LED to facilitate monitoring.
Its design supports Class 2 power without an earth pin and is suitable for BF applications where appropriate. The cable length is 1000mm with overall compact dimensions of 210mm length, 72mm width, and 35mm depth, making installation convenient.
Medical safety approved for reliable performance and safety. High efficiency up to 94.5% with active power factor correction. Fanless design enables quiet operation and wide temperature range. Compact desktop style with IEC320-C8 3-pole AC inlet.
Multiple built-in protections including short circuit and overload safeguards. Suitable for medical and clinical applications including portable devices. LED power status indication for easy operational monitoring. Complies with UL 60950-1, CE and IEC 60950-1 standards.
Discover reliable power supply solutions in our Electronics & Electricals category at EnvMart for medical, industrial, and commercial needs.
Explore more products in our AC/DC Adapter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 15A.
This unit operates within an input voltage range of 80V to 264V AC.
The overall dimensions are 210mm in length, 72mm in width, and 35mm in depth.
It features an IEC 320-C8 input connector type.
This model boasts an efficiency rating of up to 94.5%.
It complies with UL 60950-1, CE, and IEC 60950-1 standards.
The maximum operating temperature is 70°C.
Yes, it includes multiple protections such as short circuit, overload, over voltage, and over temperature safeguards.
The cable length is 1000mm.
It has an LED power status indication for easy operational monitoring.
Yes, it supports Class 2 power without an earth pin and is suitable for BF applications where appropriate.
